1.6 JX tappets

[dcworm57]

Just getting ready to check and set the tappets . I wanted to check on here because it’s not clear in the Bentley manual.
So from the cambelt end is the valve sequence as follows

inlet/exhaust/inlet/exhaust/inlet/exhuast/inlet /exhaust .

thanks

[FarmerPhil]

I've got this to do on mine. It's says in the JX service manual. I'll have a look now.

[FarmerPhil]

Its symmetrical about the mid point, so doesn't matter which way your looking at it.

Exhaust
Inlet
.
Exhaust
Inlet
.
Inlet
Exhaust
.
Inlet
Exhaust

[dcworm57]

In the Bentley manual ?

[dcworm57]

In the Bentley manual ?

I’ve got the Bentley manual but couldn’t find it , what page number ?

[R0B]

The Bentley doesn't cover oil burners.

[davidoft1]

you wont be able to set them unless you have specialist gear and a stack of spare shims, you can check them easily enough

[dcworm57]

you wont be able to set them unless you have specialist gear and a stack of spare shims, you can check them easily enough

I’ve got the specialist gear , bought it a good while back ..



[dcworm57]

Its symmetrical about the mid point, so doesn't matter which way your looking at it.

Exhaust
Inlet
.
Exhaust
Inlet
.
Inlet
Exhaust
.
Inlet
Exhaust

I’ve checked in the Bentley manual on a cylinder head diagram and this looks like it’s right .
can anyone confirm ?

[FarmerPhil]

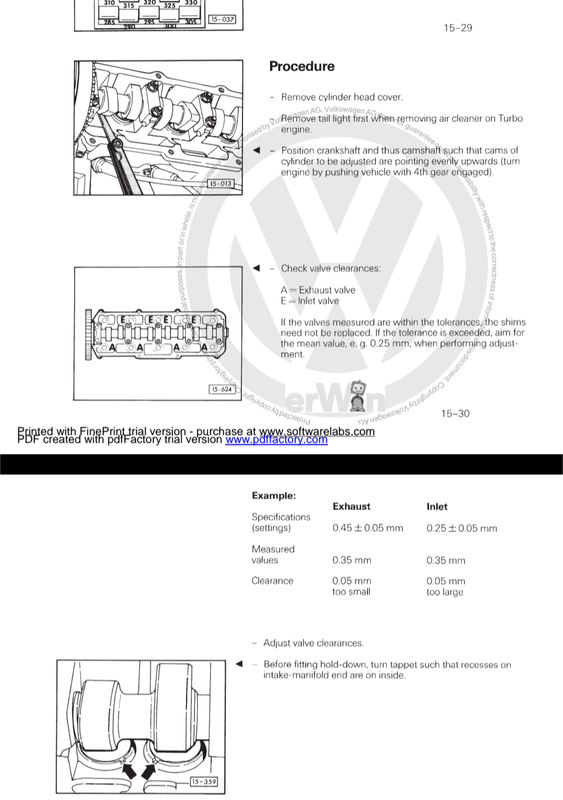

Screenshot from the JX service manual.
I would have made more sense if the had used 'E' for exhaust!

[dcworm57]

Screenshot from the JX service manual.
I would have made more sense if the had used 'E' for exhaust!

Thats great , thanks v much for taking the time …
