coolent part??

Post by fried chicken »

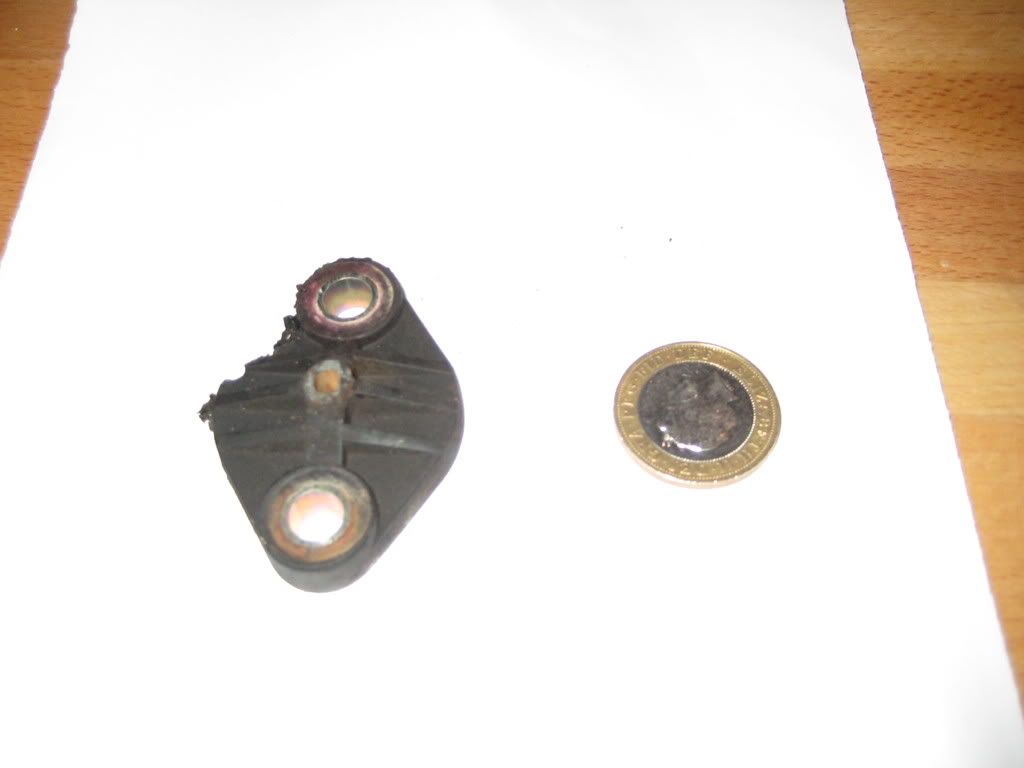

Can anyone identify this part of the coolent system, 1988 T25, 1.9 DF code engine, it should have a plastic prt sticking up from the middle but it has snapped off, need to get a new one tomorrow (thursday) if poss, I guess it will be a main dealer part.
Thanks
[IMG:1024:768]http://i304.photobucket.com/albums/nn19 ... G_0311.jpg[/img]
Have you seen him?
Top
User avatar
Ian Hulley
Registered user
Posts: 12661
Joined: 11 Oct 2005, 08:08
80-90 Mem No: 1323
Location: Wirksworth, Derbyshire ... or at t'mill

Post by Ian Hulley »

Looks like the outlet flange from the right bank cylinder head (when viewed from behind and above) . Later (or 2.1) ones were metal

Ian.
The Hulley's Bus
1989 2.1DJ Trampspotter
LPG courtesy of Steve @ Gasure
Top
Fritz
Registered user
Posts: 1628
Joined: 17 Jul 2006, 22:51
80-90 Mem No: 380
Location: Ormskirk, Lancashire

This post has been checked and verified by the forum Police,

Post by Fritz »

I Doubt you will get one from a main dealer anymore, I recently bought one from www.justkampers.co.uk , not the cheapest part in the world but if you need one,,,,you need one simple as....

Plastic ones use an 'O' ring, metal ones tend to suit a proper gasket which isn't supplied with the ones JK send out. (so you will have to fabricate one).


Regards


Fritz,,,,,,,
One day you will find me,,
Driving in my Camper,
With a Surf and Paisley wrap on both sides....
