My Van Wont Start.

Post by OddJobBob »

Hi All

This is my first post so hello everyone. Myself and my wife own a D reg (1986?) Autosleeper poptop conversion 1.9 DG. We have three kids who sleep in the van with us and a dog! It has been trouble free-ish for most of the year that we have owned it. I have noticed over about the last month that the starter motor feels sluggish. The other day while we were out for the day, it failed to start. Turn the key and nothing, not even a click from the solenoid. Luckily I had parked on a hill and bump started the van. Back home, I switched her off and tried to start. Again, nothing. Not even a click. I have checked power to the back of the starter and there is plenty - 12.5v. When the ignition is turned to the start position, I get 12.5v at the exciter wire (I think that is what the little wire to the spade connector is called). I have pulled the starter from the van and connected it to the battery with jump leads. Touching a temporary wire from the exciter to the positive jump lead gives me nothing, not even a click from the solenoid. I have noticed that the spindle seems to have a lot of lateral play - several millimetres. I guessing the starter is dead. Does this sound right? Are there any other checks I should do first?

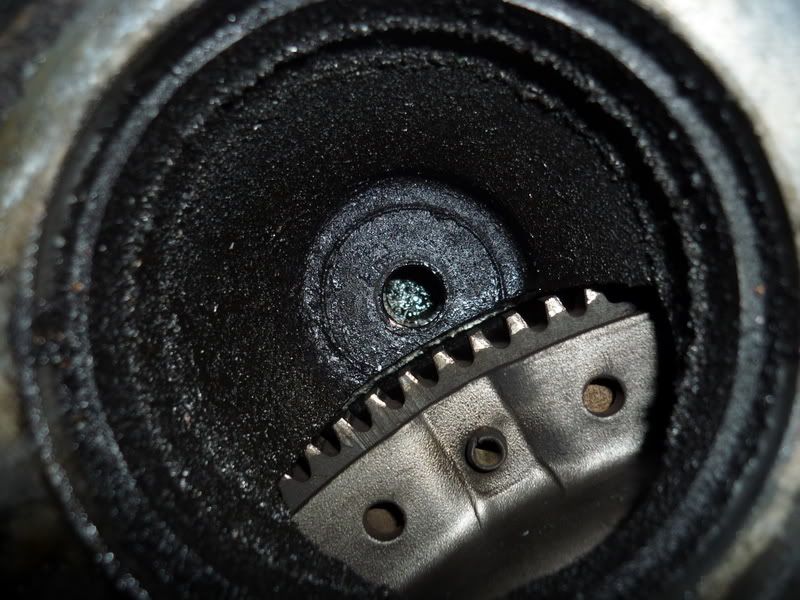

Also, here is a photo of the bush - does it need replacing.


Many thanks

Rob.
1986 T25 Autosleeper conversion. 1.9 DG. Gloucestershire.

User avatar
Mickyfin
Registered user
Posts: 1395
Joined: 18 Jul 2011, 08:26
80-90 Mem No: 10312
Location: Kuopio, Finland

Re: My Van Wont Start.

Post by Mickyfin »

If the starter is not responding off the van when connected up, then it sounds like it is indeed the starter that has died. Either get it reconditioned, or buy a new one.
Owner of Flintstone, our T3/25 Caravelle C Syncro 1.9 Petrol.

User avatar
kevtherev
Registered user
Posts: 18832
Joined: 23 Oct 2005, 20:13
80-90 Mem No: 2264
Location: Country estate Wolverhampton Actually

Re: My Van Wont Start.

Post by kevtherev »

...and change the bush while you are there.

details in the wiki
AGG 2.0L 8V. (Golf GTi MkIII)

OddJobBob
Registered user
Posts: 19
Joined: 29 Oct 2011, 12:13
80-90 Mem No: 0

Re: My Van Wont Start.

Post by OddJobBob »

Thanks for the replies. I better stick my hand in my pocket
Cheers

Rob
1986 T25 Autosleeper conversion. 1.9 DG. Gloucestershire.

OddJobBob
Registered user
Posts: 19
Joined: 29 Oct 2011, 12:13
80-90 Mem No: 0

Re: My Van Wont Start.

Post by OddJobBob »

Received the starter today from VWheritage. My heart sank when I unpacked it and found that the spindle on this one has a couple of millimetres of lateral play. I had thought that this was a sign that the old starter had packed up. Decided to quickly bung it in the van without doing the bush just to see if did the trick. Will properly replace the bush at the weekend. Connected all up and turned the key with my fingers crossed. Engine turned over. Didn't let it start but happy it turned over. Phew!!
1986 T25 Autosleeper conversion. 1.9 DG. Gloucestershire.

jason k
Registered user
Posts: 938
Joined: 13 Nov 2005, 09:35
80-90 Mem No: 1959
Location: aberdare south wales

Re: My Van Wont Start.

Post by jason k »

get that bush in sharpish.
if you leave it chances are this starter will die prematurely
98 Westfalia James Cook
