Friends rusty bus

[jimpainter]

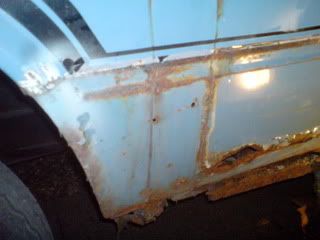

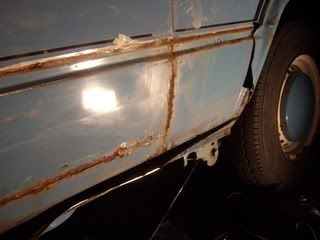

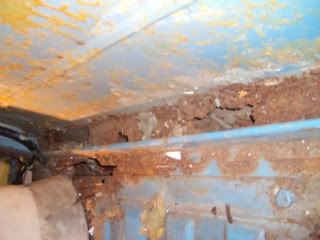

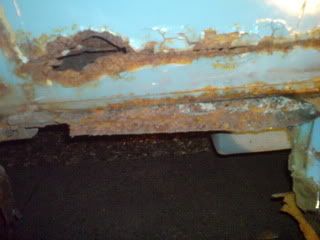

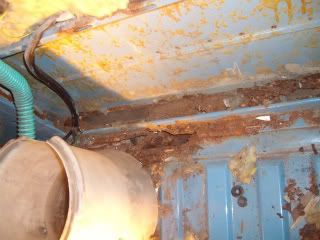

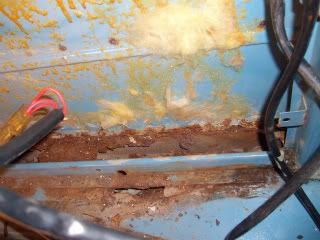

I had a mate ask me if i could take a look at his camper as its due mot soon and the outer sill is very crusty, of course i said i would inbetween welding another 2 campers for people i know. Anyway i popped round and had a poke about and suggested we remove the interior as he has a westy interior in it. As i suspected it it was really crusty and big holes in the floor where the fridge is. Now the outer sill has been repaired before but whoever did it just put the new sill over the old then did the same with the b post and front and rear arches to keep the thickness the same. Why i will never know, but why not do the job right. Anyway just a few pics of what we found inside. I will update as and when oh and if you look above the swage line you can see the spot welds where the second sill was welded over the original

[jimpainter]

Just a quick update on whats been happening.

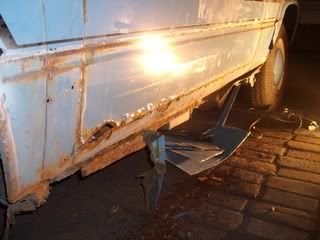

Cut off the 2nd skin


Found another hole but no surprise really


B pillar and front arch are ok


Rear arch seems ok. You can see the second skin on the bottom of the sill and the rear arch.

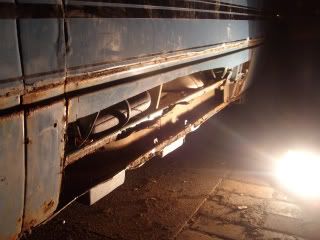

Started to cut out the outer sill original

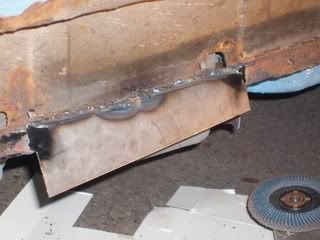

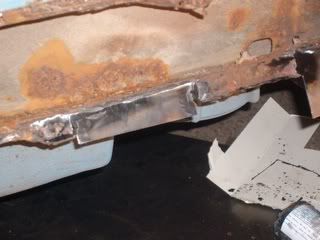

And finally a couple of sill repairs.
More soon

[jimpainter]

A quick update.

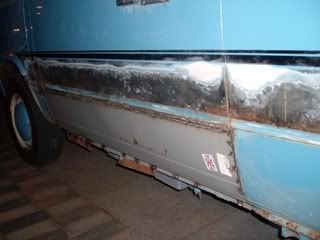

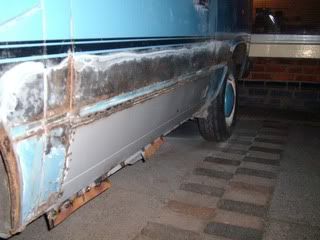

Outer sill fitted, looks a lot more solid now. The excess metal from the inner sill repairs has been trimmed off now.

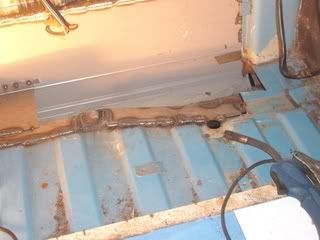

Inner sill top lip fabed up and seam welded in. I know it shouldnt be seam welded to the floor but this is only a temporary repair for the mot. It will all be coming out again soon to have a new inner sill in and done to original spec. Funds didnt allow at the min for a new inner sill and time off the road, this is my mates daily you see.

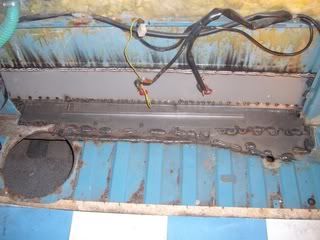

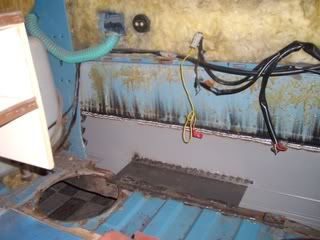

First bit of new floor going in


All completed

Before i get shot please remember this is only a temp repair for MOT purposes and will all be removed as and when my mates time/money allows, hence the reason it doesnt look original.
He is pleased with it which is always good.

Jim

[pierce]

Before i get shot please remember this is only a temp repair for MOT purposes and will all be removed as and when my mates time/money allows, hence the reason it doesnt look original.
He is pleased with it which is always good.
Jim

It looks solid enough to me
I would imagine that that area wont be seen again for a very long time once the kitchen unit goes back in

[jimpainter]

Its plenty solid enough but i like to do things back to original but it was just a fact time didnt allow, so it was a quick job to get it sorted. I know that sometimes you can get people that are a bit funny about non original repairs thats why i put that it wasnt and just a temp repair.

[scottbott]

just curious but roughly how much would that amount of work cost??,often see photo's of welding being done but I do not have the faintest idea what the costs involved are

[jimpainter]

Well we finally got done today bar going back in a few days to flat back and polish the paint.

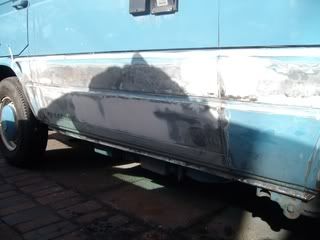

Managed to get all dents etc filled up and sanded back. I did get a very slight ripple in the new panel but a light skim of filler sorted it, probably 1mm at its deepest.

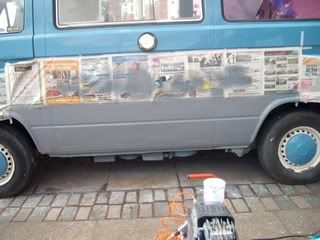

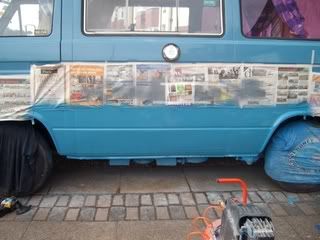

Got it masked up and away we went with primer


Top coat next

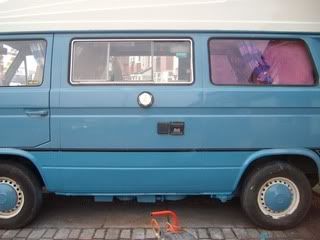

And all done, the paint isnt a perfect match but it was closest we could get at the time, its not bad though. I think once its flatted back and the stripes are back on it will break it up enough so its not as obvious.
