VW rear arch part number

[richnewton]

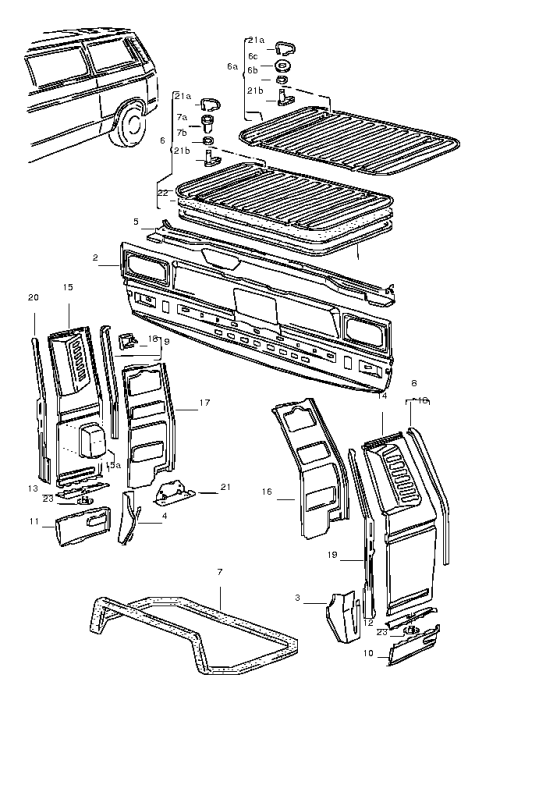

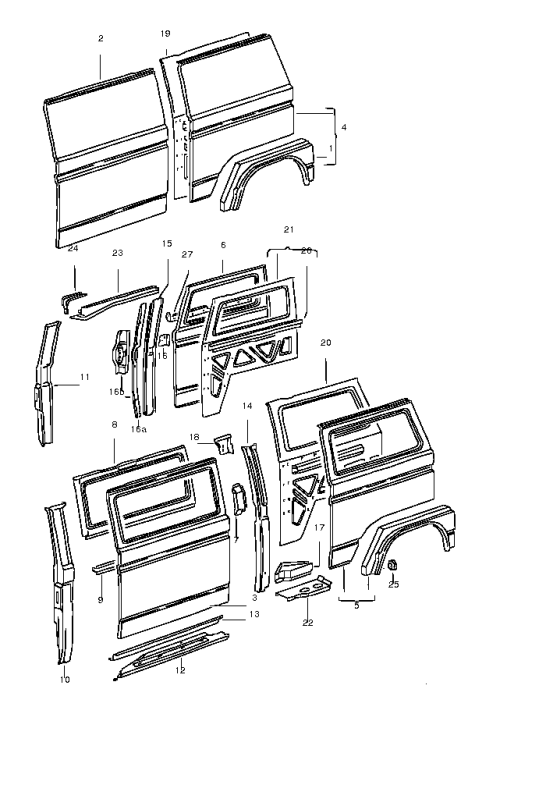

does anyone have the part numbers for the rear arches also part number 5? the numbers on vagcat seema bit varied? also number 10 on the second diagram.
cheers rich

[Cruz]

With not having access to ETOS at work all i can say is Part number 1 is just the arch itself where the arch seam meets the side panel. Doubt VW have any N/S lower arches left in the UK as they only had 1 left after I bought one last October.
https://club8090.co.uk/forum/viewtopic.p ... ch#p311269" onclick="window.open(this.href);return false;

I know schofields do aftermarket copies. They also sell the tall arch which is the side panel including the arch from somwhere just below the sliding door track down....I think which is basically what part number 5 is but without the whole upper window panel section

http://www.club80-90.co.uk/pages/downlo ... 08_cat.pdf" onclick="window.open(this.href);return false;

[Cruz]

As I thought item 1 the lower arch is obselete in the UK both N/S and O/S

item 4 and 5 are the whole side panel at a prohibitive £250 to £350+

Like I said see JK or schofields for repro parts

[richnewton]

cheers for the info

[volkswagen emporium]

does anyone have the part numbers for the rear arches also part number 5? the numbers on vagcat seema bit varied? also number 10 on the second diagram.
cheers rich

Hi all chris here volkswagen emporium the parts numbers are for item 5 is 253 809 171 and item 10 is 251 813 357, hope this helps, we my be able to get these parts from vw germany let us know if we can help 0208-407-2106 thanks chris
we brought lots of obsolete parts from vw .
