gearbox pics

Post by **famous phil** » 24 Jun 2007, 23:46

Post by **wasserleaker** » 25 Jun 2007, 09:44

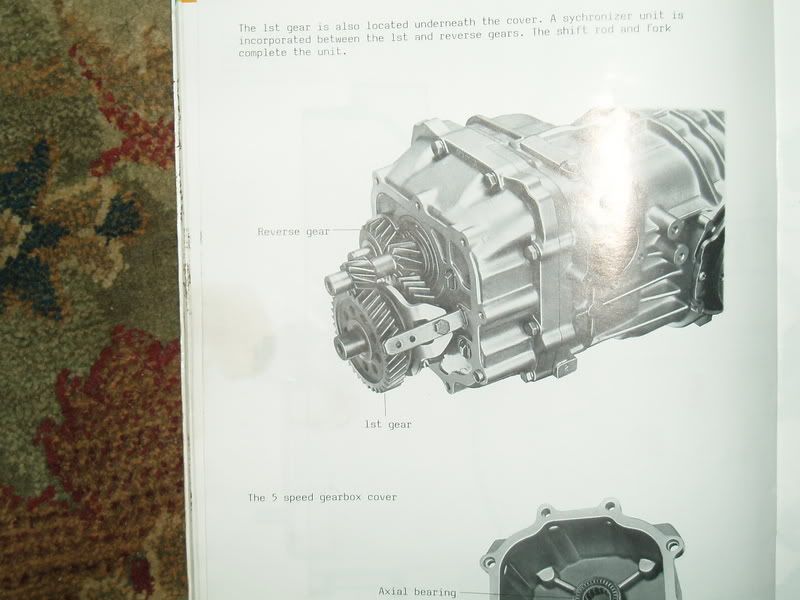

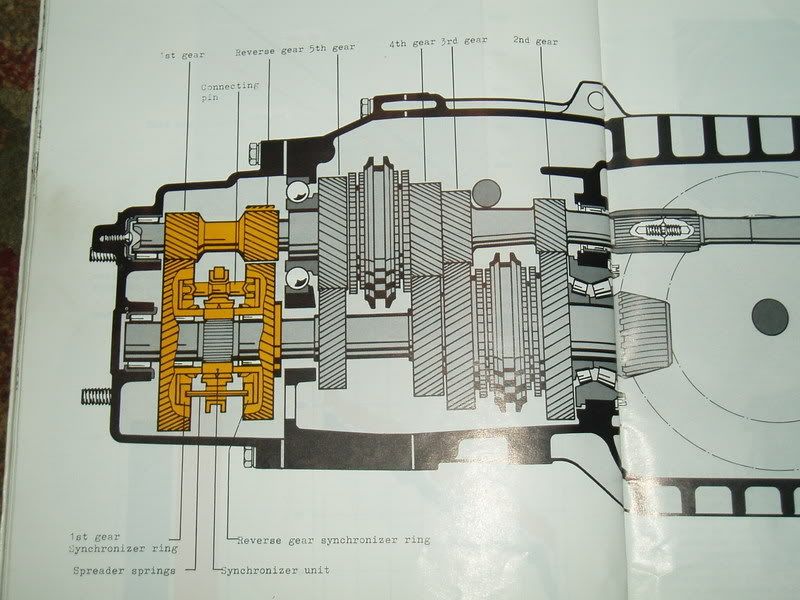

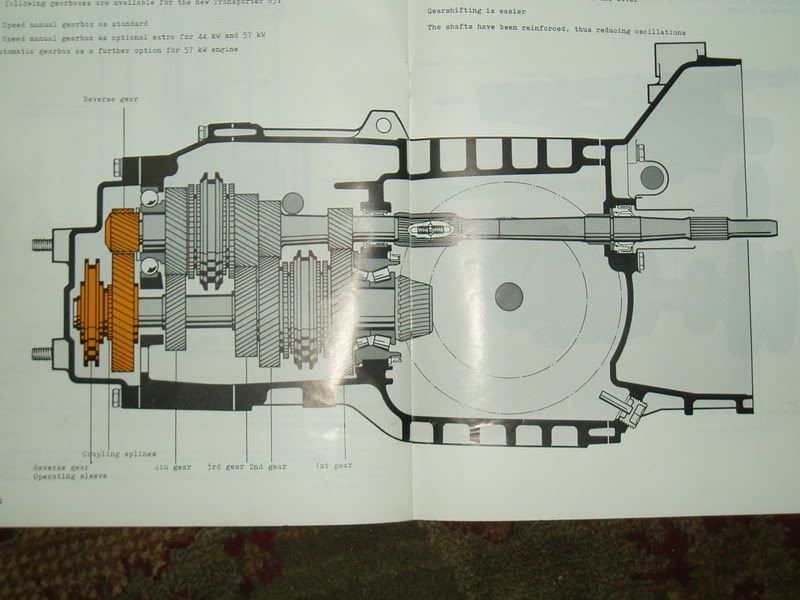

are these from a manual phil? good pics, believe it or not, that 1st and reverse end of the input shaft [5spd] yellow bit, top left of 3rd pic down] actually snapped clean off in mine, where a circlip groove weakens the shaft. due to a totally knackd roller bearing allowing it to move about too much! luckily it couldnt fall anywhere and do more damage, as its supported at the end.

Post by **famous phil** » 25 Jun 2007, 20:00

yes manuel got a few here at home ,, here's a few includes syncro booklet

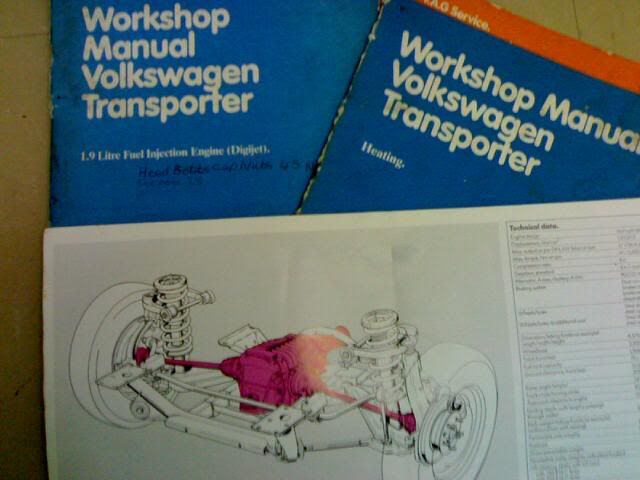

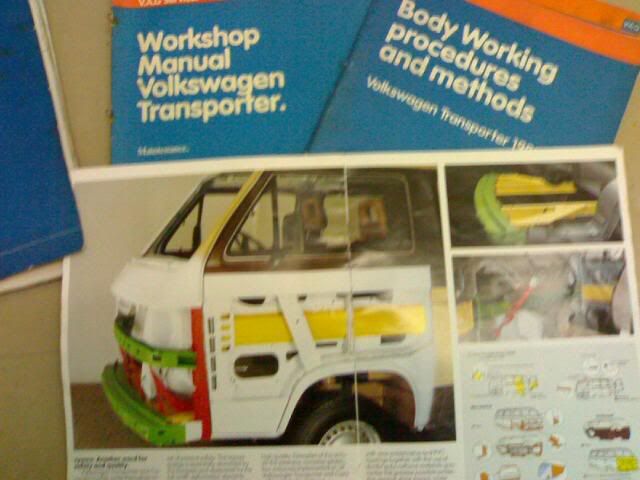

one on gearboxes ,, another on the auto box about 100 pages ,,,30 page maintenance ,, 100 page on 1.9 digijet ,, dont know why that is i've not seen any on the 1.9 ,,, ,,, 90 pages on body working procedures and methods ,,,,20 page booklet on Aircooled heating ,, and 70 page booklet on running gear ,, i've had the type25's since 91

back in a mo

Post by **wasserleaker** » 25 Jun 2007, 20:22

some interesting stuff there, mate!
