AAZ diesel injection pump

Post by **thenaylortribe** » 19 Jun 2007, 20:06

Ok just been looking at the injection pump on the new AAZ engine and it's different to the old one.

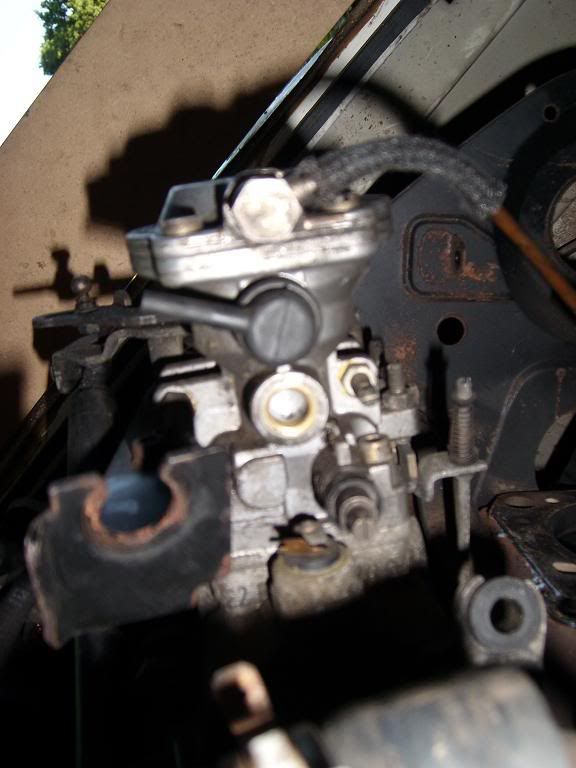

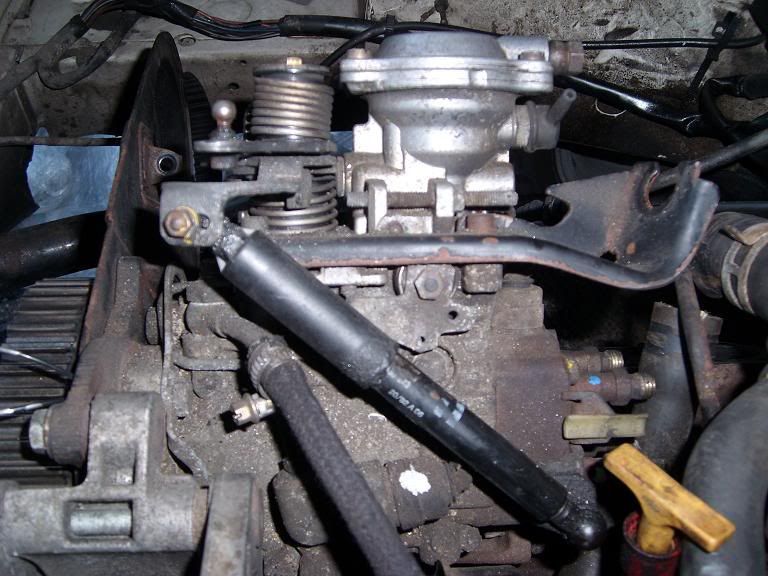

OLD
[img:768:576]http://i134.photobucket.com/albums/q113 ... 270485.jpg[/img]
[img:576:768]http://i134.photobucket.com/albums/q113 ... 270487.jpg[/img]

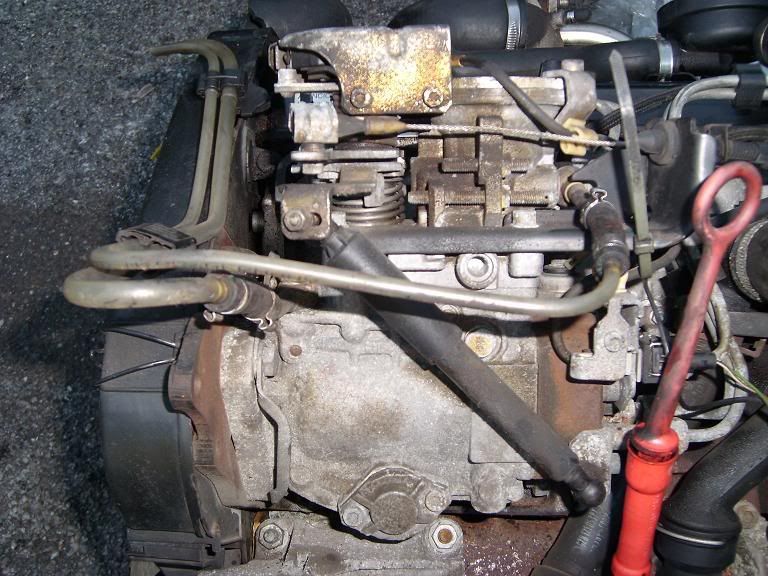

NEW part number 028 130 108
[img:768:576]http://i134.photobucket.com/albums/q113 ... 270484.jpg[/img]
[/img]http://i134.photobucket.com/albums/q113 ... 270486.jpg

Post by **thenaylortribe** » 19 Jun 2007, 20:07

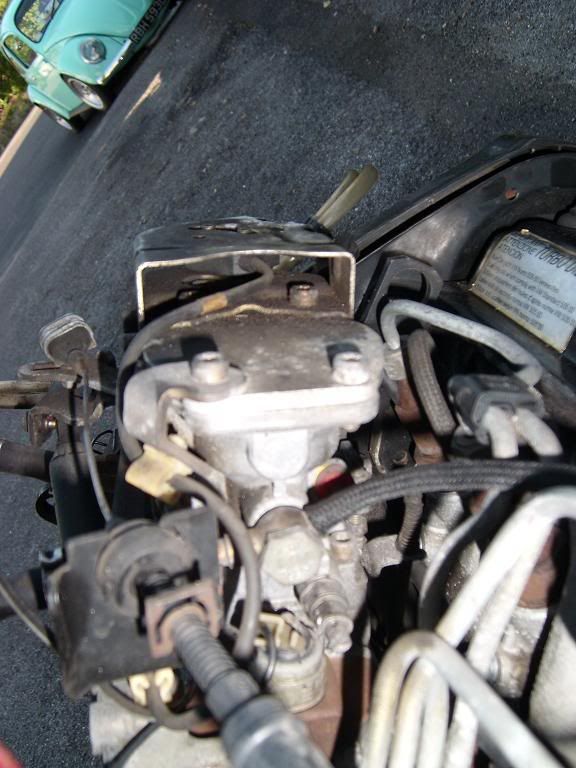

Another of new one
[img:576:768]http://i134.photobucket.com/albums/q113 ... 270486.jpg[/img]

Post by **andysimpson** » 19 Jun 2007, 21:24

Change them over the one on the new one will give less power.

Post by **thenaylortribe** » 19 Jun 2007, 22:01

ok, how do I time in the old pump to the new motor?

Post by **andysimpson** » 19 Jun 2007, 22:03

thenaylortribe wrote:ok, how do I time in the old pump to the new motor?

You will need a dial gauge and a manual if you have not done before, it will be well worth the effort, that new pump you have is a nasty one.

Post by **thenaylortribe** » 20 Jun 2007, 05:21

Is that all I need..a DTI gauge?
I'll pick one up from work

Post by **andysimpson** » 20 Jun 2007, 21:55

thenaylortribe wrote:Is that all I need..a DTI gauge?
I'll pick one up from work

yes

Post by **thenaylortribe** » 21 Jun 2007, 05:37

Cheers Andy, the help is appreciated!
started stripping all the pipes and wiring from the old engine ready for removal (labelling and photographing as I went!)
Had to change over alternator mounting plate and the turbo is different as well with EGR fitted..Is it worth swapping this for the old turbo as well?

Post by **thenaylortribe** » 21 Jun 2007, 09:00

Do I need a vw specific DTI or will any mag mounted one do?
Does it have to screw in to the hole or just sit in it?
Where can I get the camshaft locking bar and gubbins from?

Ripping out the old and fitting the new AAZ this weekend...wish me luck!!

Post by **HarryMann** » 21 Jun 2007, 09:02

Think it would, if old turbo is a good one... depends what manifold arrangement you had before?

Do I need a vw specific DTI or will any mag mounted one do?
Does it have to screw in to the hole or just sit in it?
Where can I get the camshaft locking bar and gubbins from?

1) No don't think so, any as long as pushrod thin enough to go into hole
2) Just sit in it without moving
3) Borrow or buy cheaply (think GSF might do a kit) - if in trouble might be able to get down with one Sunday, where in Hampshire, have sprocket plug too

PS No expert, but seen timing done (once

)

Post by **thenaylortribe** » 21 Jun 2007, 09:04

AAAHH!! there is someone there!

I think old turbo has survived although I suppose I won't really know until I spin it up.

One question I do have is can the engine be dropped in to the top of the engine bay or does it have to fit from underneath?

Post by **HarryMann** » 21 Jun 2007, 09:06

see above..

Post by **HarryMann** » 21 Jun 2007, 09:07

underneath bst, have you a farm jack?

slide on sheet of 3/4" plywood works OK, so lift vehcile minimum amount (but still quite high)

Post by **HarryMann** » 21 Jun 2007, 09:09

Away now, back later this evening...

Where in hants?

Post by **thenaylortribe** » 21 Jun 2007, 09:10

I probably should have scrolled down and read the rest of your post......no farm jack unfortunately just trolley jack and axle stands . Ramps are no good as I can't move the bus!
