Does anyone know what the Little White Box behind the driver's seat on a Devon t25 1984 with gilflex written on it. Cheers .
Sent from my SM-G925F using Tapatalk
Gilflex fuse box?
Moderators: User administrators, Moderators
-
doenut82
- Registered user
- Posts: 136
- Joined: 01 Feb 2016, 16:10
- 80-90 Mem No: 15227
- Location: shropshire
Gilflex fuse box?
1984 T25 1.9 DG Devon Moonraker
2001 golf 1.8T gti
1987 Honda cbr 600f
2002 Suzuki drz 400S
2001 golf 1.8T gti
1987 Honda cbr 600f
2002 Suzuki drz 400S
-
Jeff J
- Registered user
- Posts: 648
- Joined: 02 Jul 2012, 07:12
- 80-90 Mem No: 13853
- Location: Millom Cumbria
Re: Gilflex fuse box?
The only Gilflex I know make plastic trunking. It could be one of their junction boxes that someone has utilised. You will need to open it up & see what is inside. Split charge relay perhaps.
-
petethefeet
- Registered user
- Posts: 490
- Joined: 03 Oct 2012, 19:24
- 80-90 Mem No: 12639
- Location: South Bucks
Re: Gilflex fuse box?

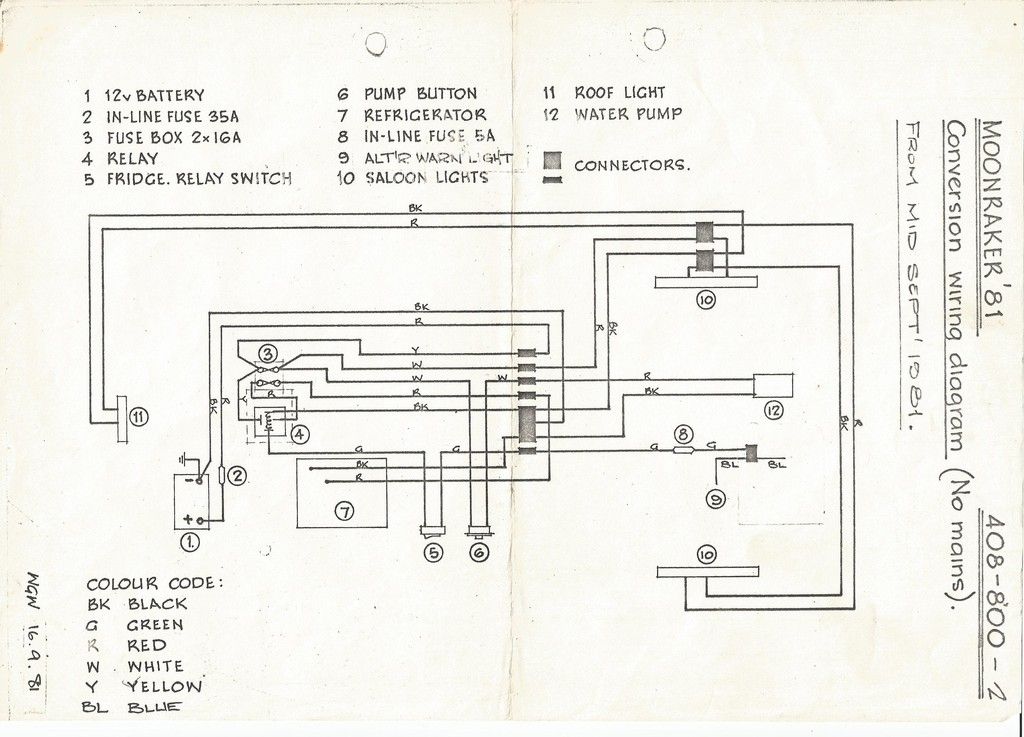

Its the fuse box for the fridge and and the water pump. See below, I assume the 1984 version is the same as the 1981 version in the diagram.
1982 2 litre CU Auto Devon Moonraker called Brian
