Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

Yes I've been lucky enough for this to happen to me before I could fit it. Brickwerks say it is nigh on impossible to rectify. Does anybody know of any tips that may help me unwind it before it goes in the bin please?
Thanks, Jon.
1982 Diesel hightop. 1Y engine. Still work in progress but running and taking us on holidays.

Ralf85
Registered user
Posts: 4447
Joined: 13 Jan 2010, 12:42
80-90 Mem No: 4418
Location: West London - 1985 westie pop top, LHD, 1900 DF engine

Re: Brickwerks seatbelt wound in all the way

Post by Ralf85 »

Jonnyb416 wrote:Yes I've been lucky enough for this to happen to me before I could fit it. Brickwerks say it is nigh on impossible to rectify. Does anybody know of any tips that may help me unwind it before it goes in the bin please?
Thanks, Jon.
How long ago did you buy it? Have you e-mailed Brickwerks about returning it?

Jonnyb416
Registered user
Posts: 965
Joined: 17 Feb 2011, 22:07
80-90 Mem No: 9259
Location: Wigan

Re: Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

It was bought a good few months ago now just never fitted it. I could ask them that I suppose.
1982 Diesel hightop. 1Y engine. Still work in progress but running and taking us on holidays.

User avatar
tobydog
Registered user
Posts: 1481
Joined: 07 Mar 2009, 21:03
80-90 Mem No: 6484
Location: Near Saarfend, Essex

Re: Brickwerks seatbelt wound in all the way

Post by tobydog »

Have you tried holding it vertical?
Knowledge is power
1970 CU

Jonnyb416
Registered user
Posts: 965
Joined: 17 Feb 2011, 22:07
80-90 Mem No: 9259
Location: Wigan

Re: Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

tobydog wrote:Have you tried holding it vertical?
Yeah. Held it every way possible I think. I was hoping there may be a release mechanism somewhere.
1982 Diesel hightop. 1Y engine. Still work in progress but running and taking us on holidays.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Brickwerks seatbelt wound in all the way

Post by CovKid »

Can't see how it can although not familiar with ones Brickwerks sell. Normally you put the seatbelt reel in the orientation its meant to be and VERY VERY slowly pull it up.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

Jonnyb416
Registered user
Posts: 965
Joined: 17 Feb 2011, 22:07
80-90 Mem No: 9259
Location: Wigan

Re: Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

CovKid wrote:Can't see how it can although not familiar with ones Brickwerks sell. Normally you put the seatbelt reel in the orientation its meant to be and VERY VERY slowly pull it up.
Apparently it's because the belt is so long once it's wound back so far it won't come out. I will keep trying :(
1982 Diesel hightop. 1Y engine. Still work in progress but running and taking us on holidays.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Brickwerks seatbelt wound in all the way

Post by CovKid »

Check through these - may help

https://www.youtube.com/results?search_ ... belt+stuck" onclick="window.open(this.href);return false;
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

User avatar
Oldiebut goodie
Registered user
Posts: 7484
Joined: 18 Apr 2008, 01:19
80-90 Mem No: 11135
Location: Eastern Angle

Re: Brickwerks seatbelt wound in all the way

Post by Oldiebut goodie »

Sometimes a sharp downwards rap on a block whilst held in the correct orientation will free the catch.
1.6D 2019 VW T-Cross
200hp VW T6
1̶Y̶ ̶1̶9̶8̶7̶ ̶H̶i̶-̶t̶o̶p̶ ̶C̶a̶r̶a̶v̶e̶l̶l̶e̶
5̶0̶8̶d̶ ̶M̶e̶r̶c̶

jacobh
Registered user
Posts: 23
Joined: 28 May 2015, 06:24
80-90 Mem No: 0

Re: Brickwerks seatbelt wound in all the way

Post by jacobh »

You should keep the unit horizontal so that the belt can go up. Then let it "roll in" for a few (4) inches. Then the lock will be released. keep it horizontal and slow but steady roll out the belt. It is possible that the belt is jammed by the small brace. squeeze and force could help
I took me some tries but got it out after a few tries.

Jacob

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Brickwerks seatbelt wound in all the way

Post by CovKid »

I agree. I actually sat here with an old belt this evening to replicate your troubles. Basically it winds in so much, theres so much webbing it gets stuck against outer casing. Sure enough - stuck fast. However, I found by keeping belt in correct orientation, I could gently work the whole reel with my fingers so it wound slightly more then I very slowly wound it out enough to create the gap needed to free it entirely. If I had any advice it would be to temporarily mount it to a known absolutely vertical object like a wall or post first, as it makes it easier to do.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

Jonnyb416
Registered user
Posts: 965
Joined: 17 Feb 2011, 22:07
80-90 Mem No: 9259
Location: Wigan

Re: Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

I cannot thank you all enough. I've only gone and managed to free it :D
I was ready to send it back as Brickwerks said they would try to free it up for me, however, this would have cost me postage both ways. I was getting so stressed with this! I read the last few posts and decided to give it one last crack. I held it horizontal and squeezed the reeled up belt as I pulled it slowly. Bloody result. Thanks again all :ok
1982 Diesel hightop. 1Y engine. Still work in progress but running and taking us on holidays.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Brickwerks seatbelt wound in all the way

Post by CovKid »

No worries. Kinda glad I had a go at creating the problem myself this end. Might help someone else faced with same issue another time. Thanks everyone.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

Jonnyb416
Registered user
Posts: 965
Joined: 17 Feb 2011, 22:07
80-90 Mem No: 9259
Location: Wigan

Re: Brickwerks seatbelt wound in all the way

Post by Jonnyb416 »

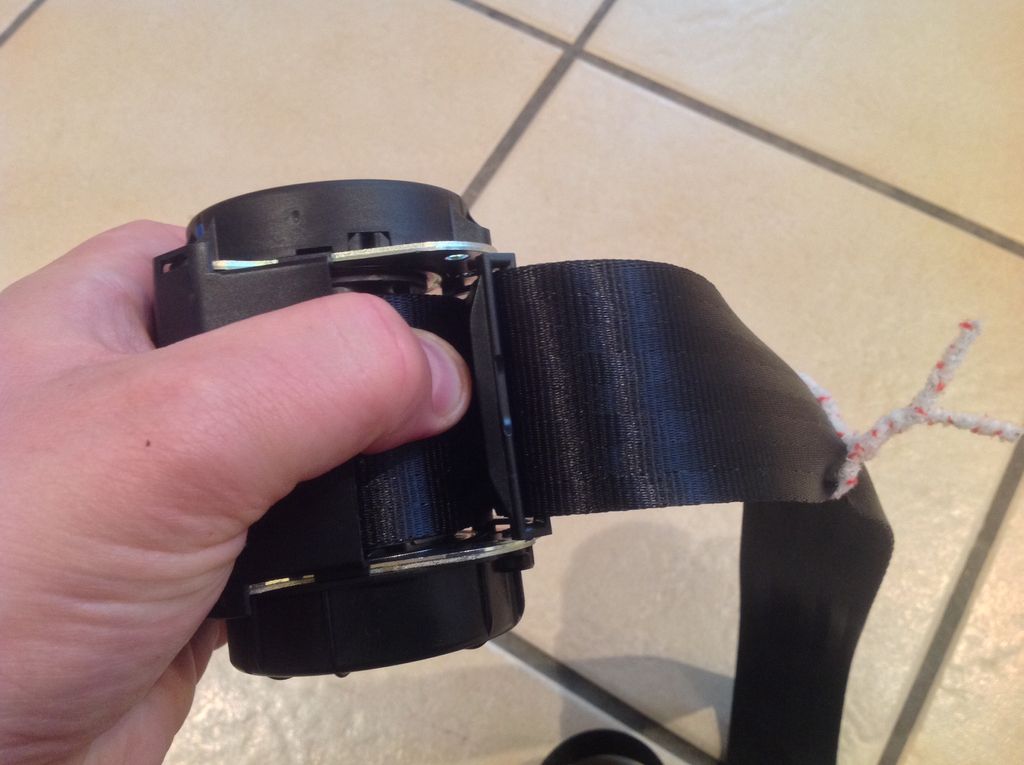

For reference here is where I squeezed/pressed down with my thumb whilst holding the belt upright and pulling up slowly. When the belt is fully rolled up there is a bit if squishyness to it. You can almost feel something slacking off as you press and pull.
