diesel mount bars reinforcing plate?

Post by **hotpod** » 20 Jun 2013, 14:34

when i tried the mount bars in place on my (was petrol) van, i noticed that where they bolt to the rear valance, they overlap a bit and the top bolt hole seems to be hanging in the air above the valance.
i had a look on my brothers diesel van and there appears to be an extra plate welded to the valance:

does anyone just happen to have their bars off and can take me a photo?
i don't mind improvising, but would rather it looked exactly as it should.

Post by **jes*b** » 20 Jun 2013, 15:39

From 2wd....

Post by **lhd** » 20 Jun 2013, 15:59

Mines been converted from Petrol to diesel, will take a look tomorrow as I will be in there.
Rob.

Post by **hotpod** » 20 Jun 2013, 16:03

wicked. thanks chaps.
that shouldn't be too tricky to knock up

any closer pics would be much appreciated. from what i can see of my brothers, they seem to be just welded on at the corners. does that sound right?

Post by **lhd** » 25 Jun 2013, 17:05

I forgot.

I was in there with the camera as well.

Will do it tomorrow.
Rob.

Post by **hotpod** » 26 Jun 2013, 10:06

thanks rob.
hope to be cracking on with it on monday. fingers tightly crossed.

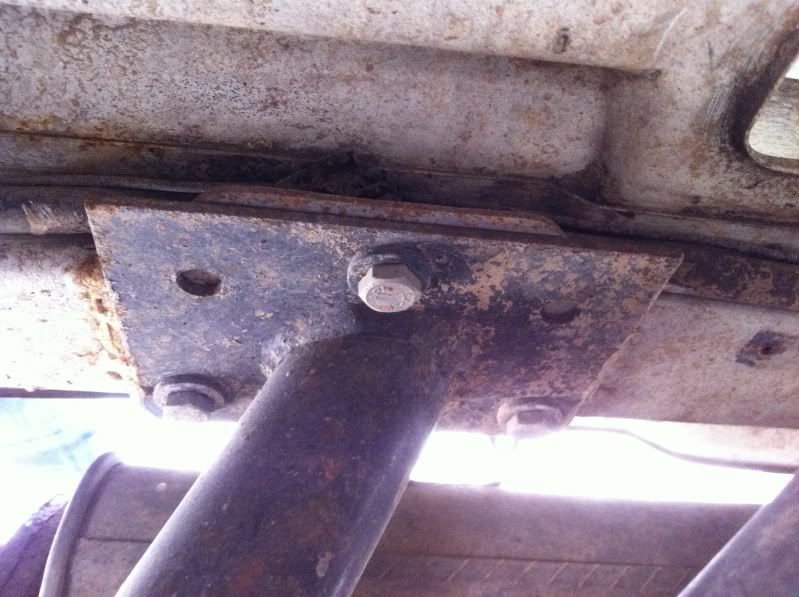

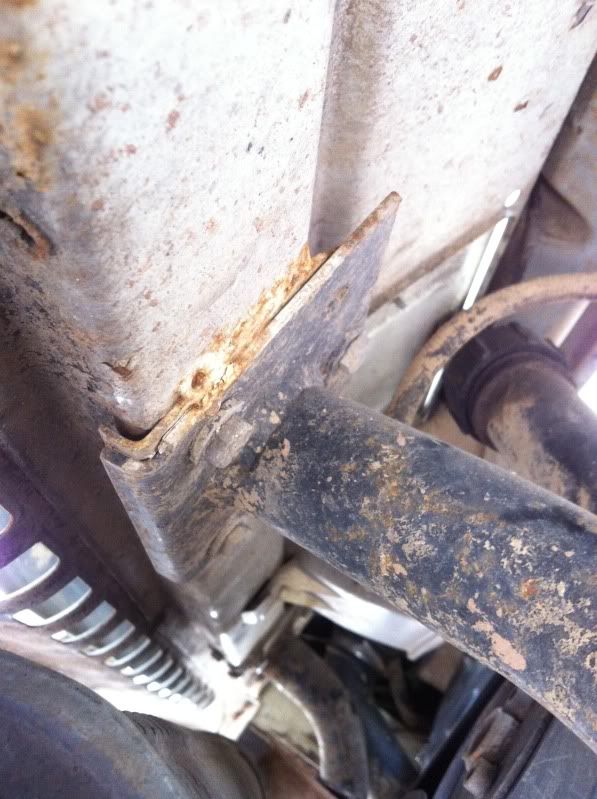

Post by **lhd** » 27 Jun 2013, 11:58

Rob.

Post by **hotpod** » 27 Jun 2013, 21:27

perfect. thanks Rob!

Post by **Plasticman** » 31 Jul 2013, 21:00

https://club8090.co.uk/forum/viewtopic.p ... 6&start=15" onclick="window.open(this.href);return false;
ah just seen the date so a bit late

mm
