Had a good look through the site, and the wiki but not really found what I'm looking for... Stupidly pulled out the 3/4 rock and roll bed when I stripped the van took a few pics of damage and binned it without thinking about using the old parts as a template! Duhhh what a clutz...
I'm now at the point of putting the bed back in and wondered if anyone has any plans/dimensions for the end plates (?)

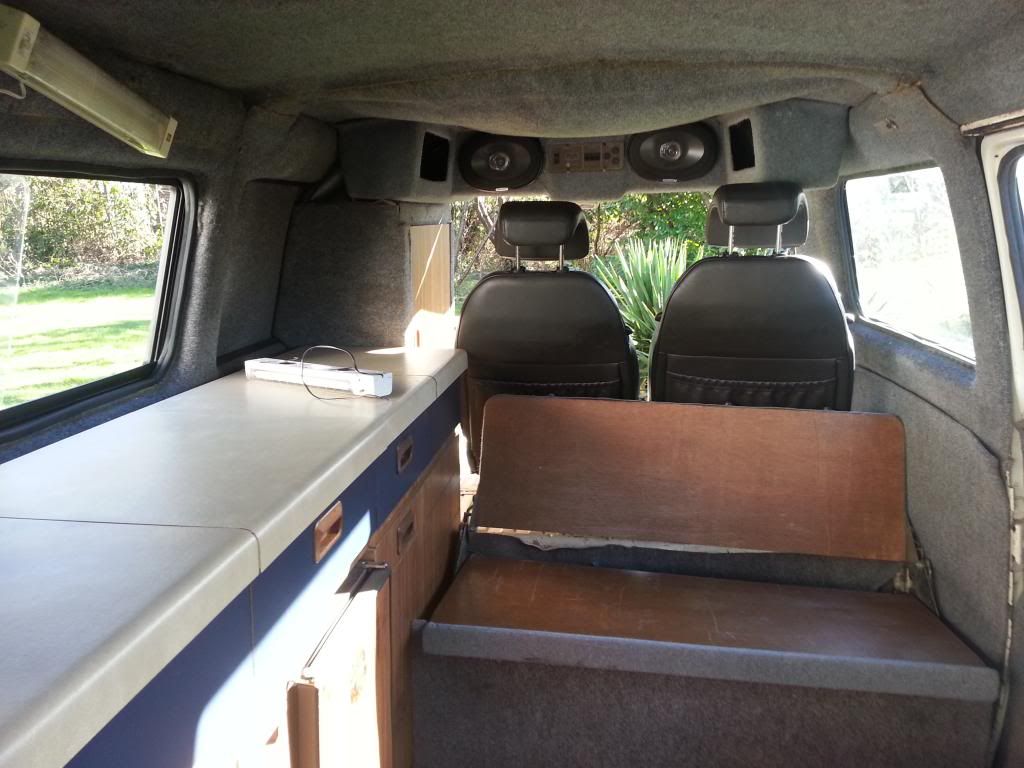

I'm making out of ply and then going to bolt the hinges back in after sealing with some sort of varnish... Anyway - I think it's a Holdsworth Villa 2 conversion, that's what the furniture looks like anyway, here's a few pics... I've still got the main pieces of the bed, the lower seat, back rest and hinges all attached together still, it's just a case of making the base and bolting it back in, then in to the van...

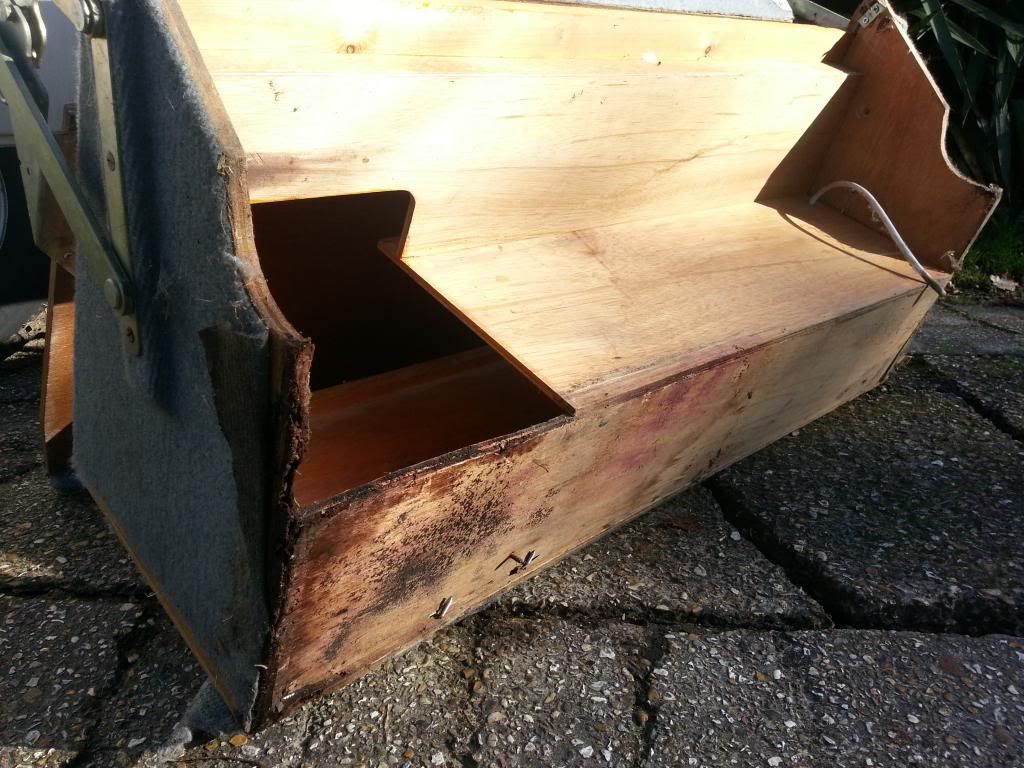

It was pretty grotty...
I've no idea why I didn't just replace the parts that were knackered...
Hope the request doesn't seem lazy, I'm quite happy/keen to measure it all myself, but am fully expecting a lot of mistakes and was just hoping to side step them! Any help or advice that can be offered would be greatly received...
Cheers
Tony
