Does anyone have any pics of the insides of their propex heaters they can post here, I bought a second hand one the other day and the wiring is a bit here and there with quite a few open ends.
Thanks in advance.
Propex pics
Moderators: User administrators, Moderators
-
itchyfeet
- Registered user
- Posts: 12425
- Joined: 23 Jul 2007, 17:24
- 80-90 Mem No: 12733
- Location: South Hampshire
Re: Propex pics
Sorry no but you will need to be more specific as there are different models and thay have changed over the years
why not post a picture of yours save people wasting their time on the wrong model.
why not post a picture of yours save people wasting their time on the wrong model.
1988 DG WBX LPG Tin Top
itchylinks
itchylinks
-
ghost123uk
- Registered user
- Posts: 6855
- Joined: 10 Mar 2006, 10:15
- 80-90 Mem No: 2585
- Location: John in Malpas, in the very S. W. part of Cheshire.
- Contact:
Re: Propex pics
What, itchyfeet not got a picture of somethingitchyfeet wrote:Sorry no
Got a new van, but it's a 165bhp T4 [shock horror] Accurate LPG Station map here
-
itchyfeet
- Registered user
- Posts: 12425
- Joined: 23 Jul 2007, 17:24
- 80-90 Mem No: 12733
- Location: South Hampshire
Re: Propex pics
No not one, can't understand it, I know I would have taken the lid off
1988 DG WBX LPG Tin Top
itchylinks
itchylinks
-
CovKid
- Trader
- Posts: 8411
- Joined: 30 Apr 2006, 13:19
- 80-90 Mem No: 3529
- Location: Ralph - Coventry (Retired)
- Contact:
Re: Propex pics
Have done in the past and theres some online but came to the conclusion theres little point, Theres nowt you can service yourself at home other than a clean, and the bits you can mess with Ghost and I have added to the WIKI. https://club8090.co.uk/wiki/Ca ... ior_Propex" onclick="window.open(this.href);return false;
If its foobarred, Propex themselves are the only reliable and safe option. Send one in and it comes back virtually brand new for about £150. Much as I love to tackle all jobs myself, thats one I have to concede on. They're the only people that carry the spares, and they can spot stuff we can't as they have all the test gear. They also guarantee the work.
More to the point its worth putting them in for a proper service after 10 years anyway (putting mine in next Summer), if only for peace of mind. Their service team are excellent. Everyone I've known about comes back with new burner and fan as a minimum. If either of those begin to play up, it generally won't fire up as the inbuilt protection is very efficient. As it should be. A clean wouldn't sort it in that instance. The only repairs I've been happy to tackle on mine was a corroded exhaust stub (a new stub and plate welded underneath) and an electrical fault due to poor grounding - ended up earthing the case directly inside.
Finally, every Propex unit should be fired up at least once a month regardless of whether you're using it or not to ensure the fan bearings don't end up seized through lack of use etc. An air line can be used to blow out spiders and debris from external pipes.
Do an image search on Google - theres a few there and in most cases the components are the same or similar. However, no full wiring diagram exists in public domain, nor will Propex provide one, understandably.
About as good as you'll get if its a 1600 compact:
If its foobarred, Propex themselves are the only reliable and safe option. Send one in and it comes back virtually brand new for about £150. Much as I love to tackle all jobs myself, thats one I have to concede on. They're the only people that carry the spares, and they can spot stuff we can't as they have all the test gear. They also guarantee the work.
More to the point its worth putting them in for a proper service after 10 years anyway (putting mine in next Summer), if only for peace of mind. Their service team are excellent. Everyone I've known about comes back with new burner and fan as a minimum. If either of those begin to play up, it generally won't fire up as the inbuilt protection is very efficient. As it should be. A clean wouldn't sort it in that instance. The only repairs I've been happy to tackle on mine was a corroded exhaust stub (a new stub and plate welded underneath) and an electrical fault due to poor grounding - ended up earthing the case directly inside.
Finally, every Propex unit should be fired up at least once a month regardless of whether you're using it or not to ensure the fan bearings don't end up seized through lack of use etc. An air line can be used to blow out spiders and debris from external pipes.
Do an image search on Google - theres a few there and in most cases the components are the same or similar. However, no full wiring diagram exists in public domain, nor will Propex provide one, understandably.
About as good as you'll get if its a 1600 compact:
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.
-
Aidan
- Trader
- Posts: 7029
- Joined: 11 Oct 2005, 19:21
- 80-90 Mem No: 742
- Location: Llanfyllin, mid Wales : )
- Contact:
Re: Propex pics
WHS/\/\/\/\/\/\
Propex are one of the best companies I have ever come across for knowledgeable, helpful, efficient and cost effective customer service in my 52 years on this planet, old school british style with enough 21st century to keep everyone happy
a british company making a decent product and providing great service, jobs and warmth
Propex are one of the best companies I have ever come across for knowledgeable, helpful, efficient and cost effective customer service in my 52 years on this planet, old school british style with enough 21st century to keep everyone happy
a british company making a decent product and providing great service, jobs and warmth
Re: Propex pics

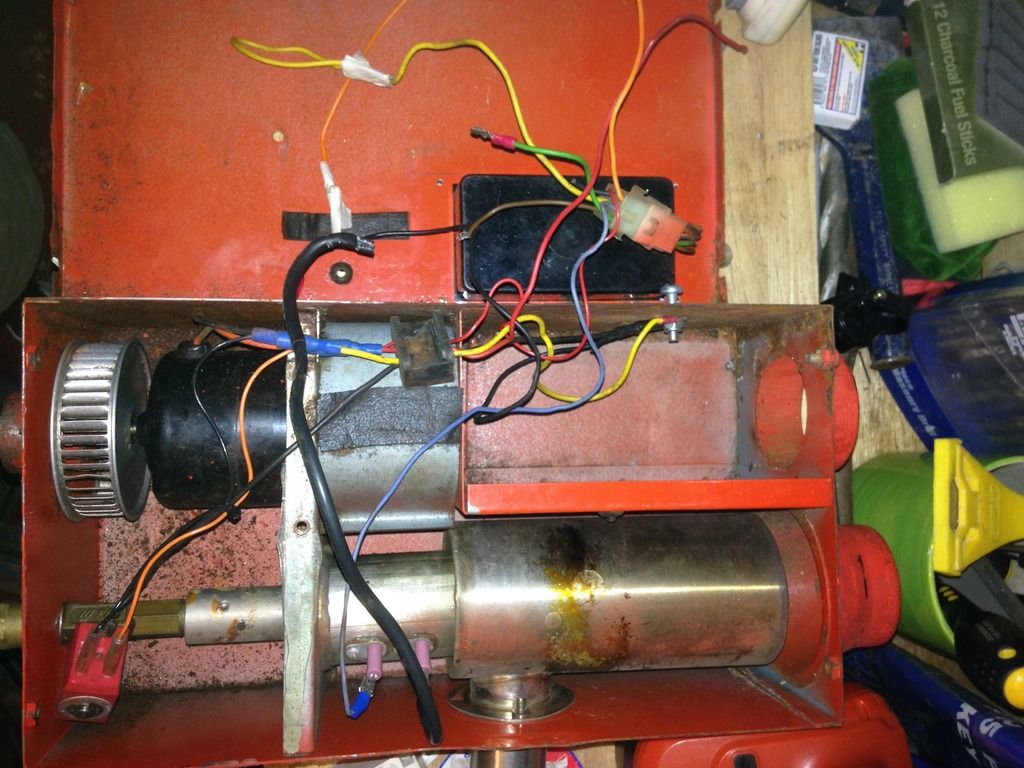

I've tried a dozen or so times now to upload pics and I'm not having much luck so here goes something different.
Its a 2.6 propex if that helps.
Its a 2.6 propex if that helps.
