Flooding Pierburg Carb

Post by The Bishop »

The good news is that I rarely have to use fools gold as I run on LPG but....

Engine 1.9DG
Carb Peirburg 2E

I had a little issue with crap in the petrol tank which now appears cleared. The hoses are also cleared.
The fuel pump is putting out a very healthy flow of petrol. Can it be too much?

When I switch to petrol the carb physically floods, there is petrol sloshing about at the top of the carb. Lots of smoke and smell of petrol. And then it drowns. My initial thought was that the float valve was sticking so went to take it apart but some joker has glued it together. Given the cost of a gasket set, I bought a second hand carb which I am told was running fine. Switched them over and the symptoms are the same. It could be that in the post the float valve as been knocked or something similar. But before I strip the second carb, is there any other cause?

Thanks,
1986 1.9 Petrol/LPG with Devon pop up.

MidLifeCrisis
Registered user
Posts: 566
Joined: 20 Nov 2011, 19:07
80-90 Mem No: 10519
Location: Bagshot, Surrey

Re: Flooding Pierburg Carb

Post by MidLifeCrisis »

Is the fuel return hose clear?
Also seem to recall that the return hose has a one-way valve in it - might be worth checking that too?
1987 Westfalia Van, Petrol 2.0 AGG

User avatar
The Bishop
Registered user
Posts: 763
Joined: 14 Jul 2011, 11:44
80-90 Mem No: 10021
Location: Near Ipswich

Re: Flooding Pierburg Carb

Post by The Bishop »

Oh good idea. But just blown through the return pipe and it is clear all the way to the tank. :cry:
1986 1.9 Petrol/LPG with Devon pop up.

User avatar
marlinowner
Registered user
Posts: 1530
Joined: 28 Jan 2014, 12:02
80-90 Mem No: 13646
Location: Scottish Borders

Re: Flooding Pierburg Carb

Post by marlinowner »

Is this a mechanical or electric pump? Electric pump pressure can be too high for carb to handle, may need a pressure regulator.
1993 SA VW T25/T3 2.5i Microbus/homebrew camper
1981/1968 Marlin Kitcar TR6 Engine

User avatar
The Bishop
Registered user
Posts: 763
Joined: 14 Jul 2011, 11:44
80-90 Mem No: 10021
Location: Near Ipswich

Re: Flooding Pierburg Carb

Post by The Bishop »

Its a mechanical pump.
1986 1.9 Petrol/LPG with Devon pop up.

User avatar
marlinowner
Registered user
Posts: 1530
Joined: 28 Jan 2014, 12:02
80-90 Mem No: 13646
Location: Scottish Borders

Re: Flooding Pierburg Carb

Post by marlinowner »

Think youre right about looking at the float chamber then.
1993 SA VW T25/T3 2.5i Microbus/homebrew camper
1981/1968 Marlin Kitcar TR6 Engine

User avatar
itchyfeet
Registered user
Posts: 12425
Joined: 23 Jul 2007, 17:24
80-90 Mem No: 12733
Location: South Hampshire

Re: Flooding Pierburg Carb

Post by itchyfeet »

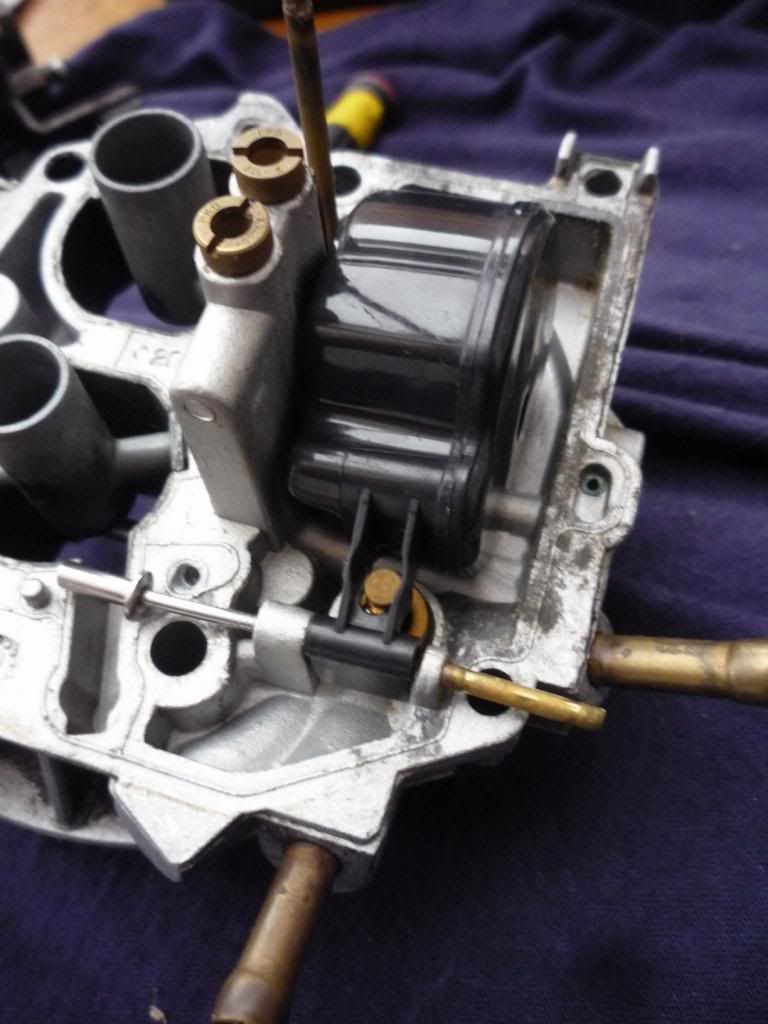

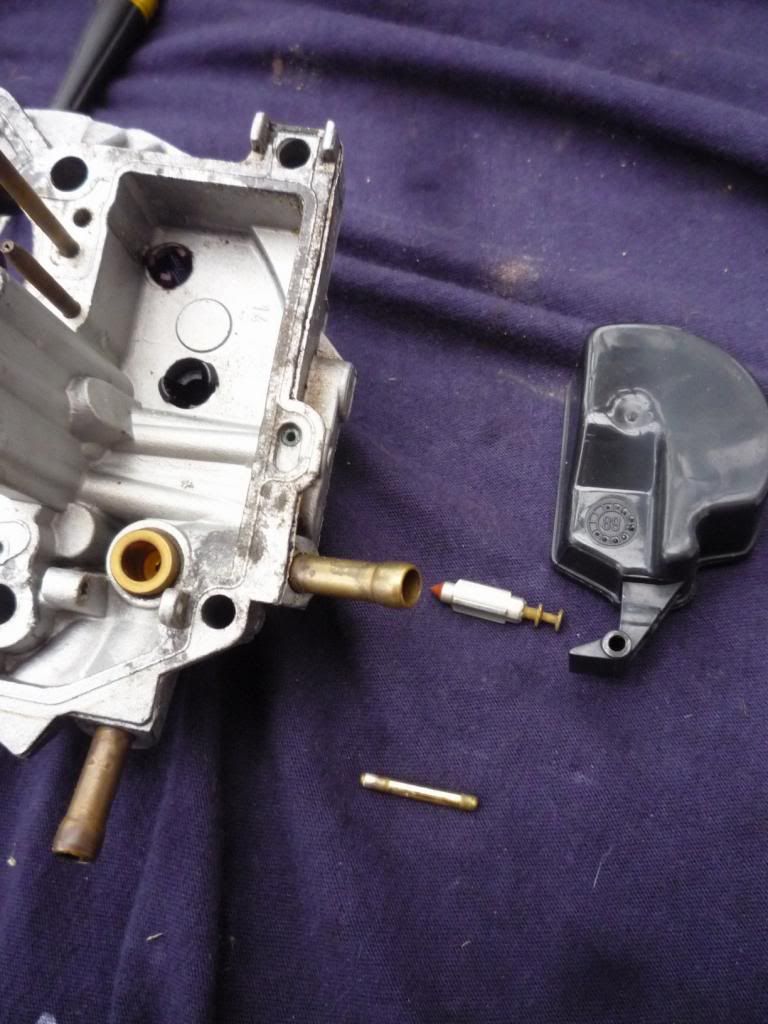

yep needle valve in float chamber most likely shot, or float has a hole but less likely

second hand carb could just be a stuck float hinge pin if it's been sitting dry on a shelf for years

needle valve in early carbs is slightly different to the late carbs, check your carb suffix as most rebuild kits are for the later version
1988 DG WBX LPG Tin Top
itchylinks

User avatar
itchyfeet
Registered user
Posts: 12425
Joined: 23 Jul 2007, 17:24
80-90 Mem No: 12733
Location: South Hampshire

Re: Flooding Pierburg Carb

Post by itchyfeet »

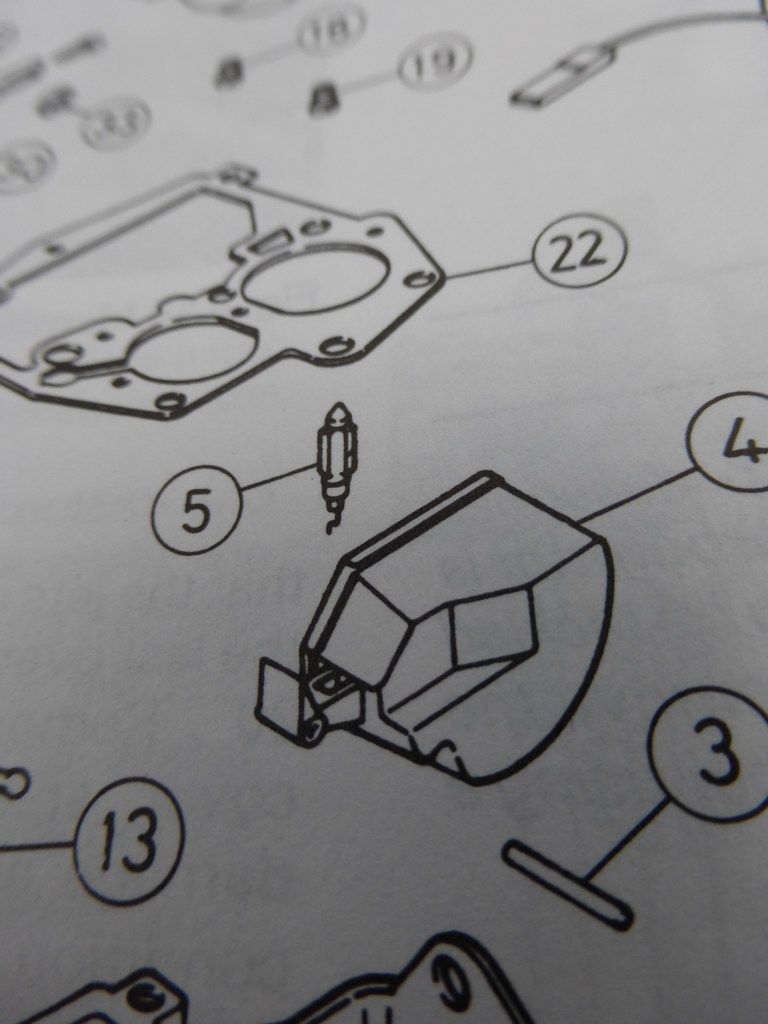

early valve
1988 DG WBX LPG Tin Top
itchylinks

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Flooding Pierburg Carb

Post by CovKid »

Needle valve usually has to be replaced if you go from mech to electric pump or indeed from duff mech pump to new mech pump. The extra pressure being too much for the valve which by now has a ring worn into the cone and will no longer seal properly.
