Front near side hub leaking

Big lumps of metals and spanners. Including servicing and fluids.

Moderators: User administrators, Moderators

what2do
Registered user
Posts: 2853
Joined: 05 Oct 2012, 08:55
80-90 Mem No: 11974
Location: Salisbury

Re: Front near side hub leaking

Post by what2do »

A pair of stilsons will help remove even the most stubborn of caps, could always wrap a cloth around it to prevent the teeth from marking the metal if you're concerned.
Why would the glass be anything other than half full?

'89 panel van, 1.9 DG.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Front near side hub leaking

Post by CovKid »

Looks to me as if the speedo cable end doesn't have its e-clip fitted either. Without it, the cable tends to drift in and out slightly which may be pushing some of the old and tired grease out. Wear in the hole in the cap will also let grease past easily as will a cap that isn't seating right all the way around - particularly when the grease is old and thin or heated to extinction by a worn bearing.

Claw hammer will normally fetch the cap off.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

normal rules
Registered user
Posts: 183
Joined: 05 Apr 2015, 18:36
80-90 Mem No: 14652

Re: Front near side hub leaking

Post by normal rules »

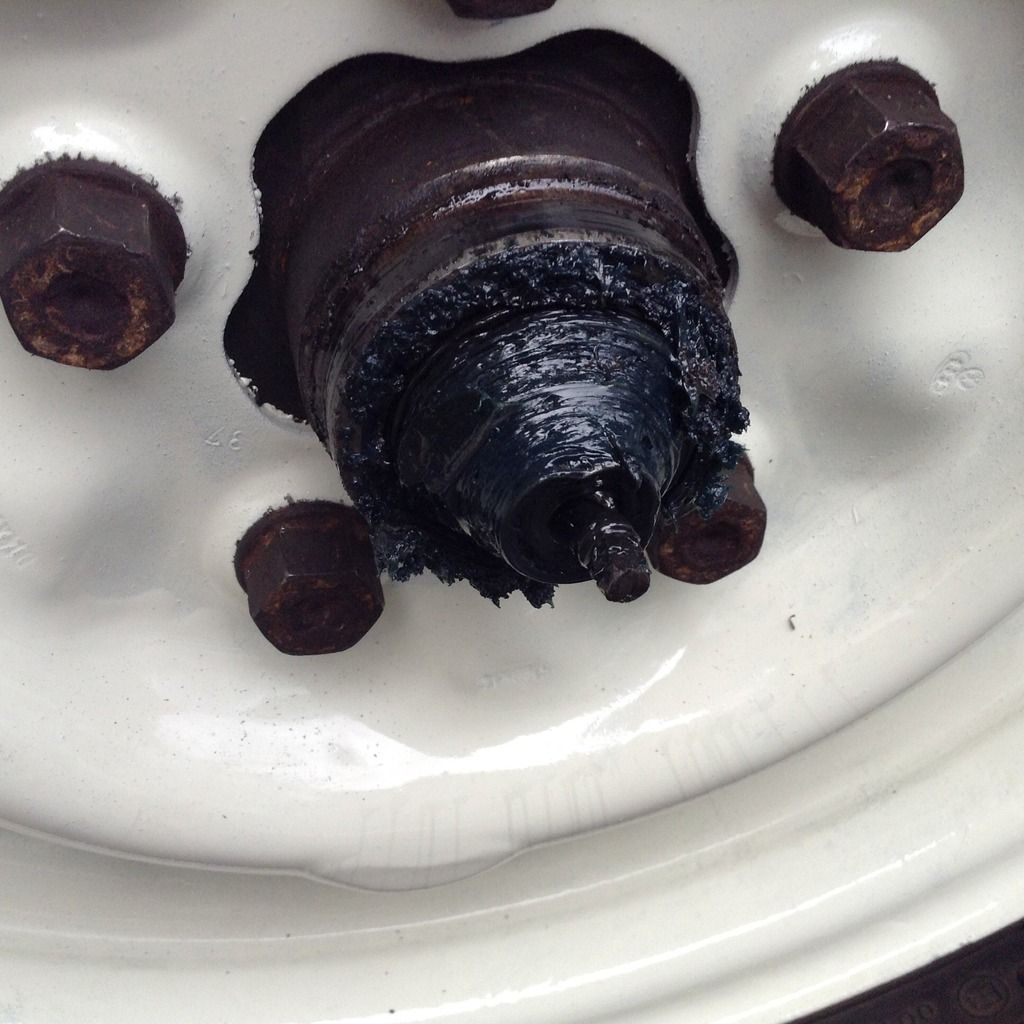

Got the cap off. Looks like someone got excited with the grease.
T25 autosleeper vt20 1.9dg 5 sp man 1985.

normal rules
Registered user
Posts: 183
Joined: 05 Apr 2015, 18:36
80-90 Mem No: 14652

Re: Front near side hub leaking

Post by normal rules »

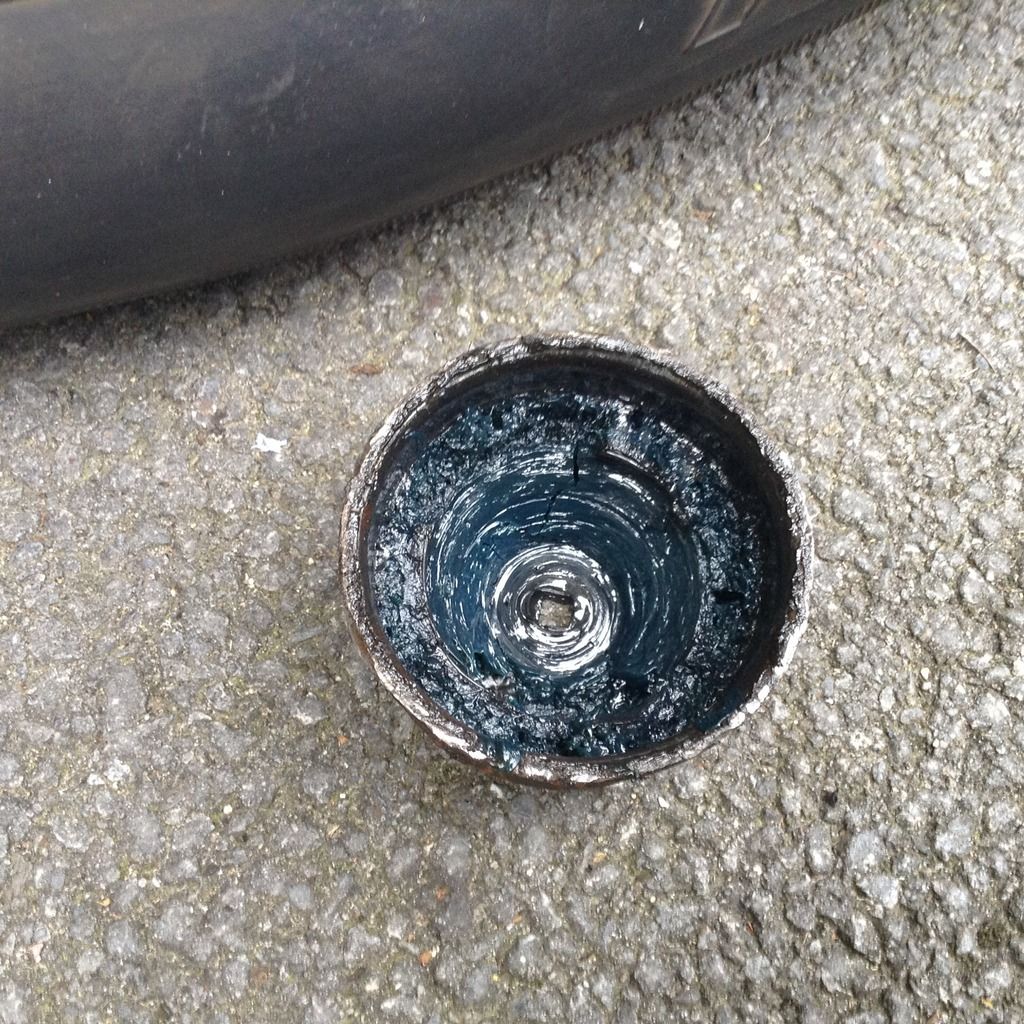

Inside of cap stuffed full of it too.
T25 autosleeper vt20 1.9dg 5 sp man 1985.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Front near side hub leaking

Post by CovKid »

Maybe some nutter thought the end of the cable was a grease nipple. Heck thats way too much grease. :shock:

I suppose as soon as the hub gets moderately warm, the grease has nowhere else to go. Make sure you fit an 8mm e-clip on the speedo cable end once the cap is put back.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

normal rules
Registered user
Posts: 183
Joined: 05 Apr 2015, 18:36
80-90 Mem No: 14652

Re: Front near side hub leaking

Post by normal rules »

Got one on order from jk, thanks cov kid. I still think the bearing is suspect though. Just what is the recommended amount of grease on top of the bearing being packed?
T25 autosleeper vt20 1.9dg 5 sp man 1985.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Front near side hub leaking

Post by CovKid »

Not much. The bearing can't drag in grease. Seen folk pack the cap before. It doesn't do anything except make a mess.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.

normal rules
Registered user
Posts: 183
Joined: 05 Apr 2015, 18:36
80-90 Mem No: 14652

Re: Front near side hub leaking

Post by normal rules »

Is there a recommended service interval for greasing hub bearings?
T25 autosleeper vt20 1.9dg 5 sp man 1985.

normal rules
Registered user
Posts: 183
Joined: 05 Apr 2015, 18:36
80-90 Mem No: 14652

Re: Front near side hub leaking

Post by normal rules »

Circlip arrived today also from jk. Cleaned some of the grease from hub cap. Going to keep an eye on it. Will change bearings if it's hot after next run out. Viva skeg Vegas this weekend. It's only 17 miles from my gaff!
T25 autosleeper vt20 1.9dg 5 sp man 1985.

User avatar
CovKid
Trader
Posts: 8411
Joined: 30 Apr 2006, 13:19
80-90 Mem No: 3529
Location: Ralph - Coventry (Retired)
Contact:

Re: Front near side hub leaking

Post by CovKid »

Normally the discs wear before the bearing or grease expires and thats the time the owner ends up focused on them.
