Central locking not working

[jack-d]

Hi

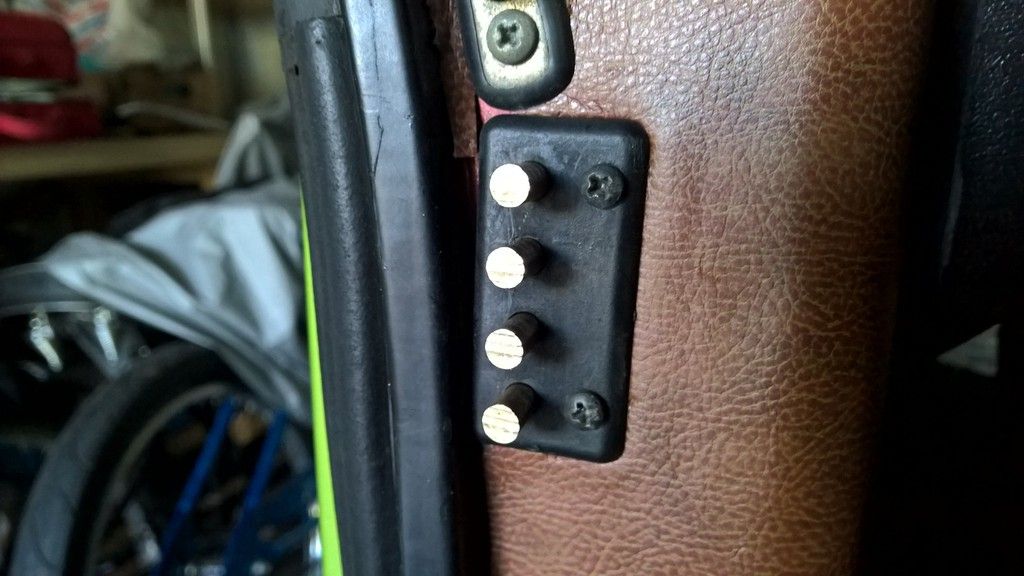

Just took the sliding door card off so I could remove the catch on the sliding door, as it was popping open when driving. And now the central locking isn't working, not sure if I have blown a fuse, as I did touch the brass pins on the sliding door with a screw driver? As in the photo below. If it is a fuse which one would it be? Or have I disturbed the Actuator while putting the door card back on?

Any thoughts appreciated.

Thanks
Jack

[tonytech]

If none of the doors lock or unlock electrically, you have probably blown the fuse.

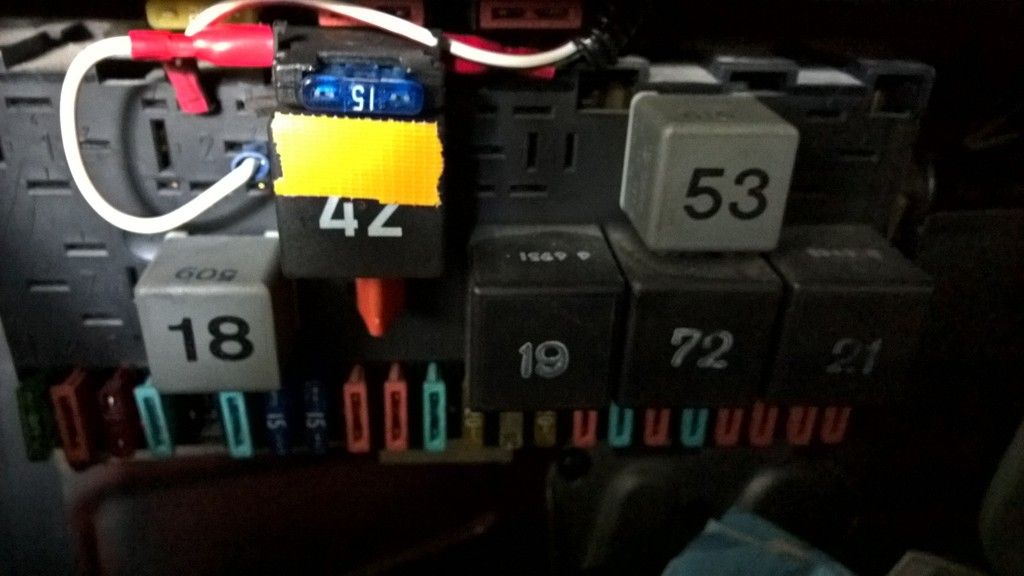

Its number 23, somewhere across the top of the fuse board.
This might help:
http://www.pbase.com/tonytech/image/84733738/large
http://www.pbase.com/tonytech/image/84733739

T

[jack-d]

Thanks Tony, will check it out

[jack-d]

Yep no.23 20amp fuse, didn't have a spare so robbed it from the rear window heater for now.
Cheers again Tony. Very glad it wasn't the actuator.
