What you done to yours?

Syncro 4&4 Discussion and Q&A last answered over 2 years ago.
You may also want to visit the Wiki(pedia) for a more structured index of T25 repair, maintenance, technical and ownership topics (browse for Syncro links)

You can find further syncro specific information on the Syncronauts website.

Moderators: User administrators, Moderators

User avatar
TT|
Registered user
Posts: 0
Joined: 07 Oct 2011, 05:35
80-90 Mem No: 0
Location: Finland

Re: What you done to yours?

Post by TT| »

Mickyfin wrote:
jed the spread wrote:
There is a good chance I we may be driving up to the Artic Circle this summer for our 4 weeks holiday and one thing will be 100%, my bull bars will be fitted for the trip.

jed

Will you be headed here Jed? If so, pop in for a coffee mate, or a beer. We are around 400 clicks south of The Arctic Circle. Oh and yes, you will need your Bull Bars here, as the further North you go, the more chance on hitting a Moose, or Bear.

And if you come via southern part of Finland, here is lots of us syncro-guys in the Helsinki area to hang out :) Welcome :ok
16" Armylance "multivan" 1.9mTDI

mrmule
Registered user
Posts: 348
Joined: 01 Jun 2010, 07:59
80-90 Mem No: 10656
Location: Kent

Re: What you done to yours?

Post by mrmule »

v-lux wrote: I'm running 235/70/16 on Merc ML alloys

Are the MLs 8J? 235 70 would be OK I guess? Although 4.4% taller than the 215 75 15s. Would that be unmanageable for the MV?
Last edited by mrmule on 23 Apr 2012, 13:04, edited 1 time in total.
T6 Pure Grey Kombi DSG 150PS on Bilsteins
RHD Caravelle Twin Slider DIY Syncro Westy EJ25

v-lux
Trader
Posts: 737
Joined: 07 Aug 2006, 18:54
80-90 Mem No: 2951
Location: Somerset....yarp!
Contact:

Re: What you done to yours?

Post by v-lux »

There's two types, mine are the skinnier ones. 7 or 7.5 I think, off the top of my head.

The wider ones are 8 I think.

mrmule
Registered user
Posts: 348
Joined: 01 Jun 2010, 07:59
80-90 Mem No: 10656
Location: Kent

Re: What you done to yours?

Post by mrmule »

I really like the old Pentas; I have a set on my multivan. But the genuine ones are 8j. Would I be pushing my luck with 8j?
T6 Pure Grey Kombi DSG 150PS on Bilsteins
RHD Caravelle Twin Slider DIY Syncro Westy EJ25

User avatar
TT|
Registered user
Posts: 0
Joined: 07 Oct 2011, 05:35
80-90 Mem No: 0
Location: Finland

Re: What you done to yours?

Post by TT| »

mrmule wrote:I really like the old Pentas; I have a set on my multivan. But the genuine ones are 8j. Would I be pushing my luck with 8j?

At least here in Europe there is at least two kinds of genuine MB ML wheels, only difference is ET and the 7J vs 8J. I had a set of the wider ones (8J) and they had totally wrong ET, something like 50+, so you need spacers to fit those. I tested them on 14" and 16" syncros and no way to get them in.

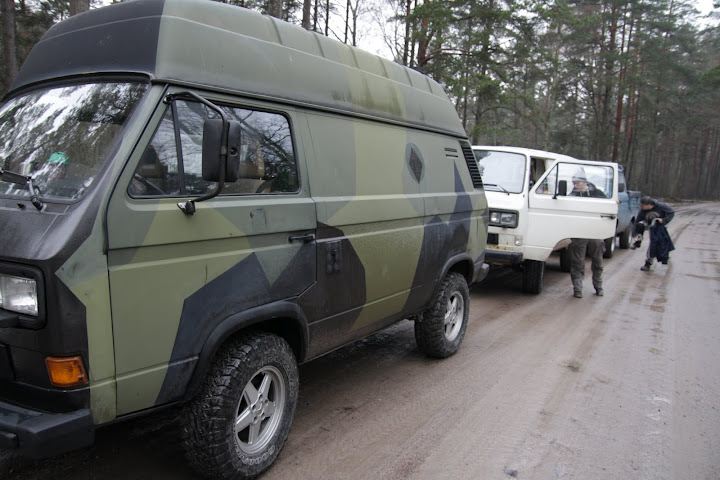

On my 16" I have 7x16 ET35 Pentas with 245/75-16 GoodYear Wrangler MTR tires, they are good for on and off-road.
16" Armylance "multivan" 1.9mTDI

mrmule
Registered user
Posts: 348
Joined: 01 Jun 2010, 07:59
80-90 Mem No: 10656
Location: Kent

Re: What you done to yours?

Post by mrmule »

jed the spread wrote: There is a good chance I we may be driving up to the Artic Circle this summer for our 4 weeks holiday and one thing will be 100%, my bull bars will be fitted for the trip.

jed

Jed,

You should get some of these for your trip!
T6 Pure Grey Kombi DSG 150PS on Bilsteins
RHD Caravelle Twin Slider DIY Syncro Westy EJ25

jed the spread
Trader
Posts: 9020
Joined: 09 Oct 2005, 17:31
80-90 Mem No: 1967
Location: Sutton in'it Syncronaut: 123
Contact:

Re: What you done to yours?

Post by jed the spread »

jed the spread wrote:
mrmule wrote: Anyone located the shackle points to the the two main chassis rails successfully?

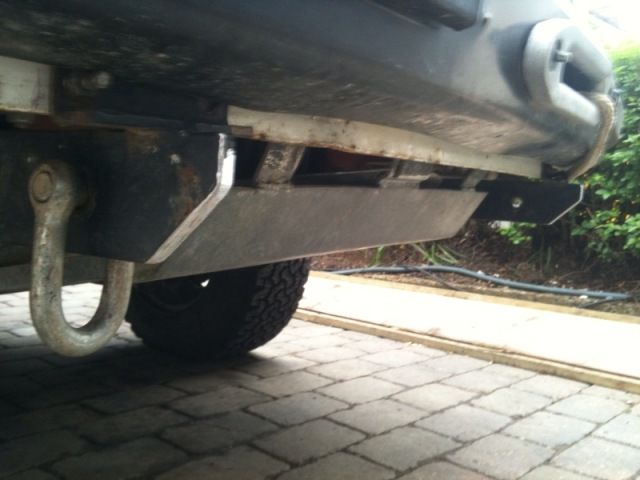

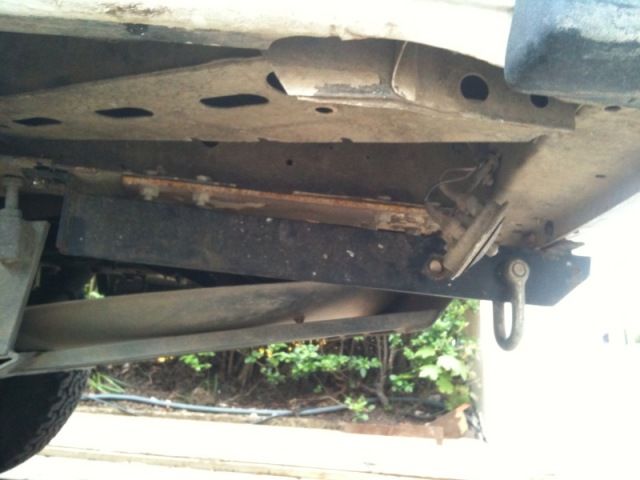

Here you go Sam,



Jed
CAMPERVANCULTURE.COM

VW T25 Van Spares, Westfalia Parts, Quality Camping Gear & More

mrmule
Registered user
Posts: 348
Joined: 01 Jun 2010, 07:59
80-90 Mem No: 10656
Location: Kent

Re: What you done to yours?

Post by mrmule »

Looking good mate. Thanks for the photos. Looks like quite a nice non-invasive solution. What thickness plate did you use?
T6 Pure Grey Kombi DSG 150PS on Bilsteins
RHD Caravelle Twin Slider DIY Syncro Westy EJ25

User avatar
lloydy
Registered user
Posts: 8015
Joined: 24 Nov 2009, 17:54
80-90 Mem No: 5262
Location: cheam surrey

Re: What you done to yours?

Post by lloydy »

TT| wrote:
mrmule wrote:I really like the old Pentas; I have a set on my multivan. But the genuine ones are 8j. Would I be pushing my luck with 8j?

At least here in Europe there is at least two kinds of genuine MB ML wheels, only difference is ET and the 7J vs 8J. I had a set of the wider ones (8J) and they had totally wrong ET, something like 50+, so you need spacers to fit those. I tested them on 14" and 16" syncros and no way to get them in.
On my 16" I have 7x16 ET35 Pentas with 245/75-16 GoodYear Wrangler MTR tires, they are good for on and off-road.
Hmmmm penta's would like a set of them, don't suppose you have a pic of them fitted....
Time is a drug. Too much of it kills you

User avatar
TT|
Registered user
Posts: 0
Joined: 07 Oct 2011, 05:35
80-90 Mem No: 0
Location: Finland

Re: What you done to yours?

Post by TT| »

lloydy wrote:
TT| wrote:
mrmule wrote:I really like the old Pentas; I have a set on my multivan. But the genuine ones are 8j. Would I be pushing my luck with 8j?

At least here in Europe there is at least two kinds of genuine MB ML wheels, only difference is ET and the 7J vs 8J. I had a set of the wider ones (8J) and they had totally wrong ET, something like 50+, so you need spacers to fit those. I tested them on 14" and 16" syncros and no way to get them in.
On my 16" I have 7x16 ET35 Pentas with 245/75-16 GoodYear Wrangler MTR tires, they are good for on and off-road.
Hmmmm penta's would like a set of them, don't suppose you have a pic of them fitted....

Tons of pics :) What you want to see?

side
Foot up
16" Armylance "multivan" 1.9mTDI

jed the spread
Trader
Posts: 9020
Joined: 09 Oct 2005, 17:31
80-90 Mem No: 1967
Location: Sutton in'it Syncronaut: 123
Contact:

Re: What you done to yours?

Post by jed the spread »

mrmule wrote:Looking good mate. Thanks for the photos. Looks like quite a nice non-invasive solution. What thickness plate did you use?

Its 8mm.

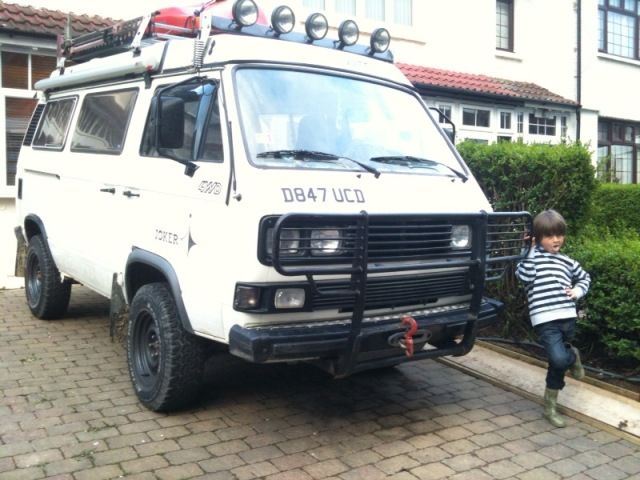

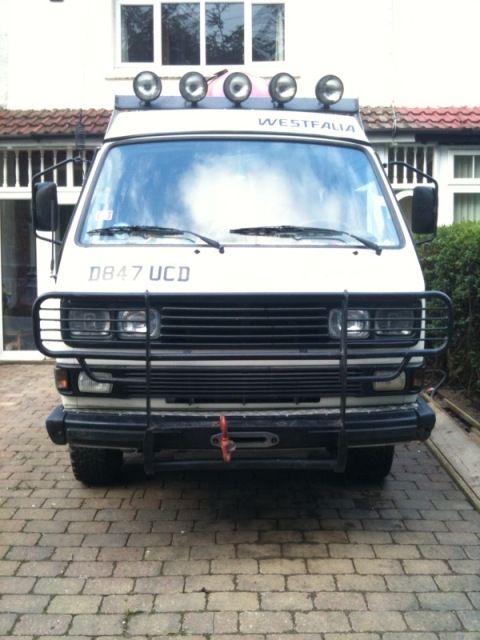

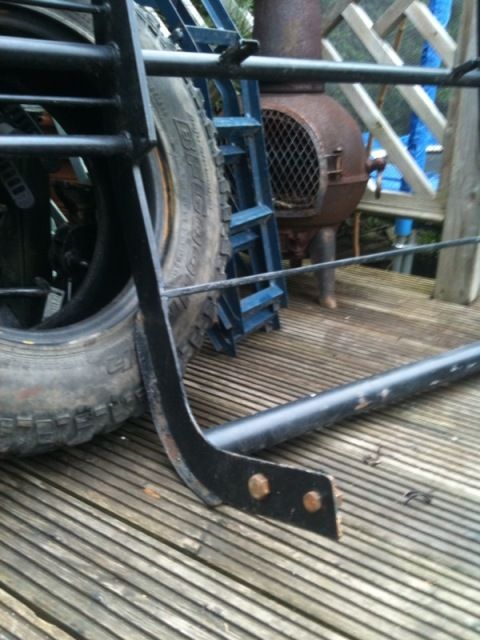

They double up to hold my bull bars that I intend on using on our trip to the Artic Circle this summer and as I have been planning a route this week I thought I would get i the mood by doing something pro active to the Westy. Its a quick system to allow the bull bars (or kiddy killers to those who only drive in GB and Ireland) to be taken off or put back on in 5 minutes. When the bars are off the mounts will be used as safe towing points and when the bars are on I can use those with a towing point welded low down.




The bull bars are off again at the moment and we are away this weekend so I might get Jake to tow me around abit to see what its like.

Jed
CAMPERVANCULTURE.COM

VW T25 Van Spares, Westfalia Parts, Quality Camping Gear & More

Al Housman
Registered user
Posts: 174
Joined: 27 Feb 2007, 23:05
80-90 Mem No: 11858
Location: Oswestry, Shropshire

Re: What you done to yours?

Post by Al Housman »

Back to the winch question.

They do look cool mounted on the front of your vehicle and great for pulling mates out of the mire but how about getting yourself out? How often do you reverse into a ditch so that you can winch yourself out forwards? Also they can be a tad pricey.

Why not stick a Tirfor somewhere handy- that'll pull you and anybody else from any angle.

mrmule
Registered user
Posts: 348
Joined: 01 Jun 2010, 07:59
80-90 Mem No: 10656
Location: Kent

Re: What you done to yours?

Post by mrmule »

Agree; for the moment. Is why I went for the 5ft HiLift, to use as a winch worst case.

I'd like to have one nonetheless.
T6 Pure Grey Kombi DSG 150PS on Bilsteins
RHD Caravelle Twin Slider DIY Syncro Westy EJ25

jed the spread
Trader
Posts: 9020
Joined: 09 Oct 2005, 17:31
80-90 Mem No: 1967
Location: Sutton in'it Syncronaut: 123
Contact:

Re: What you done to yours?

Post by jed the spread »

Al Housman wrote:Back to the winch question.

They do look cool mounted on the front of your vehicle and great for pulling mates out of the mire but how about getting yourself out? How often do you reverse into a ditch so that you can winch yourself out forwards? Also they can be a tad pricey.

Why not stick a Tirfor somewhere handy- that'll pull you and anybody else from any angle.


You only drive through something you think you can get through, if you fall that little bit short the winch will see you through. The rest of the time its to help your chums out, hey V-lux :lol:

jed
CAMPERVANCULTURE.COM

VW T25 Van Spares, Westfalia Parts, Quality Camping Gear & More

User avatar
ninja.turtle007
Registered user
Posts: 2234
Joined: 04 Jun 2009, 16:07
80-90 Mem No: 7278
Location: Surrey

Re: What you done to yours?

Post by ninja.turtle007 »

I watched Jed winch himself out of a river at Syncropendance. Very cool. Wouldn't have been possible without a tree or something to anchor onto though. He also pulled me out of the mud with his winch after failing to tow me out.
Full time Explorer http://www.resfeber.co.uk
