Rear speaker placement

Post by Zebedee »

My caravelle has a pair of speakers mounted low down in the cab doors which gives a reasonable sound (not perfect as they are too low but OK for now). There are no speakers at all in the rear so i'd like to fit a set.

Should i fit them in the rear kick panel under the back seat or in the side panels either side of the back seat?
Ideally they'd need to be mounted higher up but i can't see any way of doing that. :(
Any suggestions?
Movember, growing a tash for charity.
Please donate: http://mobro.co/Zebedee

When you do things right people won't be sure you've done anything at all.
http://www.border-dubbers.co.uk

1988 Caravelle running LPG

dash
Registered user
Posts: 69
Joined: 27 Jul 2011, 15:14
80-90 Mem No: 10042
Location: Derby
Contact:

Re: Rear speaker placement

Post by dash »

Kick panel. Definitely. The choice is between mounting your speakers into a bit of ~30mm plywood, or hanging them off some 3mm weetabix trim panels.

My parents Caravelle was set up with the front speakers in the usual bottom of the door location, and the back ones in the kick panel. I always used to set it faded entirely into the back speakers because it sounded much better than anything that came out of the front ones. I don't think the height is a massive issue because they are four or five feet behind you.

User avatar
1664
Registered user
Posts: 8746
Joined: 30 Mar 2006, 15:20
80-90 Mem No: 3299
Location: Coventry Member

Re: Rear speaker placement

Post by 1664 »

If they're not too large, how about either side of the rear overhead locker like here?

Vorsprung Durch Technik my ar$e!

User avatar
Titus A Duxass
Registered user
Posts: 5777
Joined: 24 Nov 2007, 08:22
80-90 Mem No: 4475
Location: Cologne

Re: Rear speaker placement

Post by Titus A Duxass »

I have my rear speakers in the tailgate panel.
They get muffled when fully loaded and I had to recess them so they don't get banged about.

When parked up you can sit under the tailgate and hear your music without blasting it out.
VW T3 GTi Camper 2,0l

User avatar
R0B
Moderator
Posts: 19463
Joined: 07 Oct 2005, 17:33
80-90 Mem No: 864
Location: Cheshire

Re: Rear speaker placement

Post by R0B »

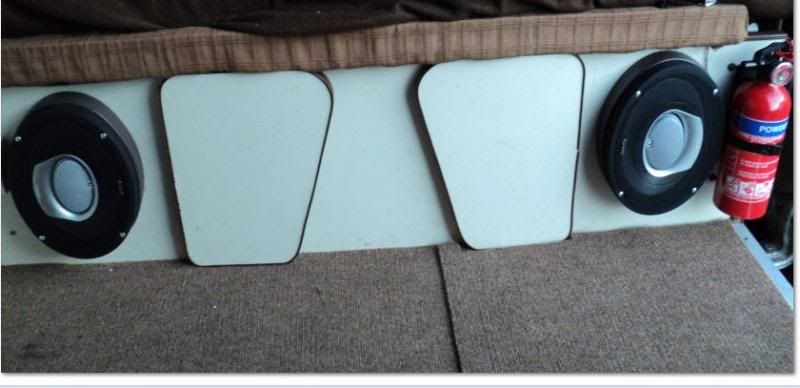

Mine are in the kick panel.There was not enough gap behind them as thats where my lpg tank is.So i made these stand offs from mdf.
2.1 LPG/Petrol Auto Caravelle

"The difference between genius and stupidity is that genius has its limits"

User avatar
Zebedee
Registered user
Posts: 368
Joined: 17 Jan 2009, 17:31
80-90 Mem No: 9267
Location: Maryport, Cumbria

Re: Rear speaker placement

Post by Zebedee »

Cheers, kick panel it is then. Not got an overhead locker or i'd fit them in that.
Movember, growing a tash for charity.
Please donate: http://mobro.co/Zebedee

When you do things right people won't be sure you've done anything at all.
http://www.border-dubbers.co.uk

1988 Caravelle running LPG

billybigspud
Registered user
Posts: 635
Joined: 11 Mar 2011, 15:59
80-90 Mem No: 9454
Location: southampton

Re: Rear speaker placement

Post by billybigspud »

Do both



the leads are not there any more :wink:

:ok
