what is this please

Post by **JamesT25** » 18 Nov 2008, 12:49

Hello,

all the wiring is currently out of my van and thought while its out might as well give it all a clean up and check everything over but can't for the life of me figure out what this is!!

scotch locked up which i dont like for starters but dont know whether to whip it out or just make a decent job of wiring it up!!

any help would be apreciated Here's the pics that could describe more than I ever could
[img:300:400]http://2.bp.blogspot.com/_HZua_Kqd98k/S ... AG0202.jpg[/img]

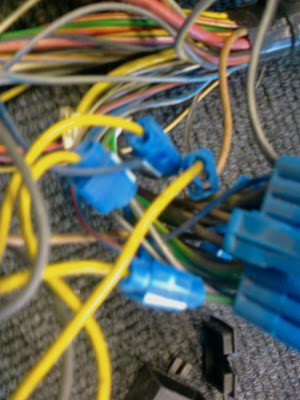

[img:300:400]http://4.bp.blogspot.com/_HZua_Kqd98k/S ... AG0203.jpg[/img]
[img:300:400]http://1.bp.blogspot.com/_HZua_Kqd98k/S ... AG0204.jpg[/img]

Cheers

James

Post by **Aidan** » 18 Nov 2008, 17:54

looks like some alarm/imobiliser stuff, I'd remove it if I were you as long as there's no obviously cut or rerouted wires

Post by **JamesT25** » 18 Nov 2008, 20:31

have traced the wires back to the indicator cables going to the stalk

could these be indicator flasher things????

there is 3 cables to each unit 1 cable connecting the pair and then two more intersecting the cable to the indicator switch

does anyone know where the indicator relay should be i nassume the fuse box????

Post by **HarryMann** » 18 Nov 2008, 20:37

A tip to get sharpness into those images, if i may?

If your camera hasn't got a close-focus button or setting, just try shooting from a bit further away to allow it to focus. Then even though the image is smaller, its sharp enough to be cropped down and then enlarged.

Cheers

Post by **kevtherev** » 18 Nov 2008, 20:40

scotch-lok-tastic

they may well flash the indicators to tell you the alarm is armed

Post by **JamesT25** » 18 Nov 2008, 20:42

gal,

the wiring loom is on the floor at work the van is in for paint and the engine is sat with my mechanic if i could get 2hp i'd be happy never mind 200hp!!!!

Post by **Mocki** » 18 Nov 2008, 20:45

its a electromagnet reed switch, used to make the tell tale on the dash(or sometimes a buzzer sound ) flash when the trailer indecators are working.......
they are normally found in a plastic box, with a expensive name on the outside

Post by **JamesT25** » 18 Nov 2008, 20:47

had a good look over all the loom never had an alarm attached

the only thing i can think is its a bodge for indicators but one hell of a crap job!!! want to put back to normal if possible if i can find where its supposed to go and what supposed to make em flash

Post by **kevtherev** » 18 Nov 2008, 20:48

OK
have you looked in Haynes?
the relay is in the glove box

Post by **JamesT25** » 18 Nov 2008, 20:50

Mocki wrote:its a electromagnet reed switch, used to make the tell tale on the dash(or sometimes a buzzer sound ) flash when the trailer indecators are working.......
they are normally found in a plastic box, with a expensive name on the outside

they did come out of a pair of little plastic boxes that sounds like it may have had tow bar at one point!!!

perfect now i can remove that crap from behind my fuse box and use a good old soldering iron and heat shrink

anyone fancy a pair of these magic buzzer / flash units then cos they coming off my loom!!!!

cheers

james

Post by **Mocki** » 18 Nov 2008, 20:51

Mocki wrote:its a electromagnet reed switch, used to make the tell tale on the dash(or sometimes a buzzer sound ) flash when the trailer indecators are working.......
they are normally found in a plastic box, with a expensive name on the outside

hello?????

*waves*
*jumps up and down*

Post by **JamesT25** » 18 Nov 2008, 20:52

cheers mocki

mystery solved and greatly appreciated
