Removing headrest sockets from rear seat

Post by **VWlewis** » 12 Feb 2008, 22:08

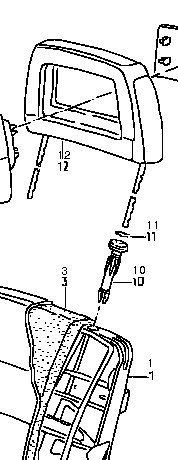

I am trying to remove the headrest socket from a Caravelle rear seat and fit it to another rear seat. I have pull out the locking springs and got the headrest out. The guide (see item 10 in figure below) seems pretty stuck ... it might be screwed in - does anyone have any experience in doing this?

[IMG:178:460]http://i109.photobucket.com/albums/n74/ ... drests.jpg[/img]

You ask why? I have swapped my Caravelle rear seat for a multivan bed seat but want to match the headrests with the middle and front seats.

Thanks

VW Lewis

Post by **hakuna matata** » 12 Feb 2008, 23:38

ive done the same on my back seat, its easy , get two srewdrivers under the guide and yank it up ,their only push fitted on, or undo the back material off the seats put your hand up the back off the board and push up.
if no joy i might have a few in the shed,call me .
neil. 07973-151117.

Post by **VWlewis** » 13 Feb 2008, 13:51

Done - thanks for your advice, encouragement to press on, and offer of parts Neil.

I will put some pics up here later ...

Part number for the seat insert is 811 881 939 01C (Black ones) and the cost is £3.89 +VAT from VW .. 10 still available in the UK.

One happy Camper

VW Lewis

Post by **VWlewis** » 13 Feb 2008, 17:06

Now written up for the WIKI with photos!

https://club8090.co.uk/wiki/He ... rear_seats

Enjoy!!

VW Lewis
