Post by **Jonnyb416** » 21 Sep 2011, 19:16

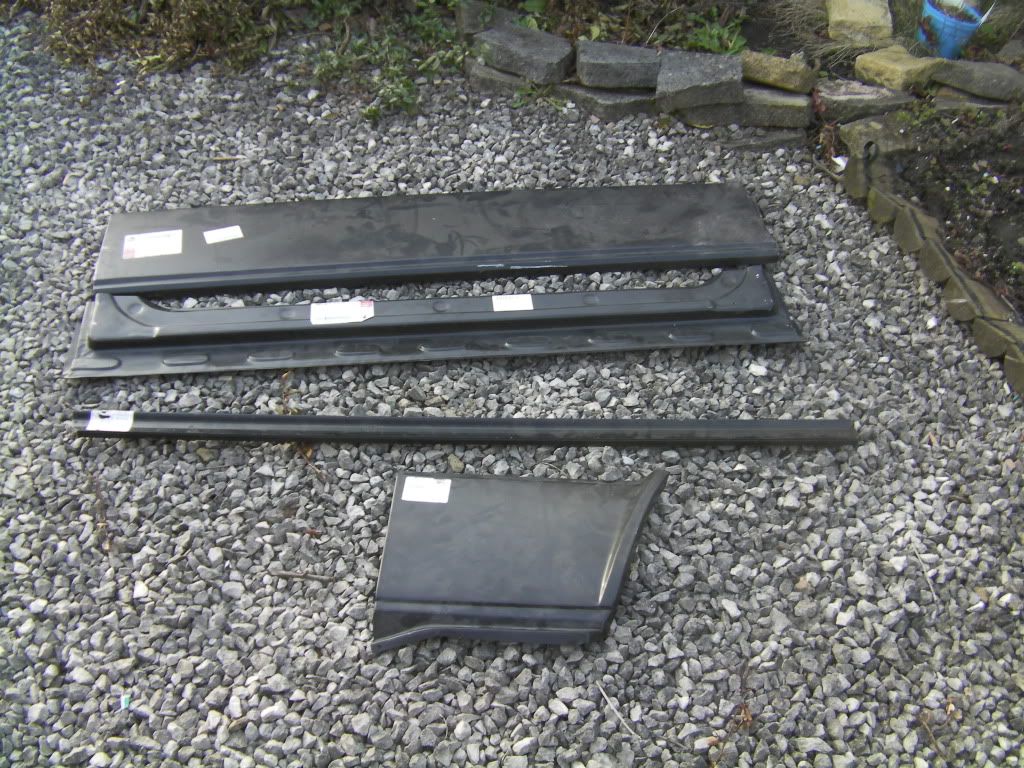

The plan was to get the door to hang as straight as possible before deciding how to fit the new outer skin and how much to cut off to repair the inner skin. The panels we were going to use can be seen here.

Post by **Jonnyb416** » 21 Sep 2011, 19:23

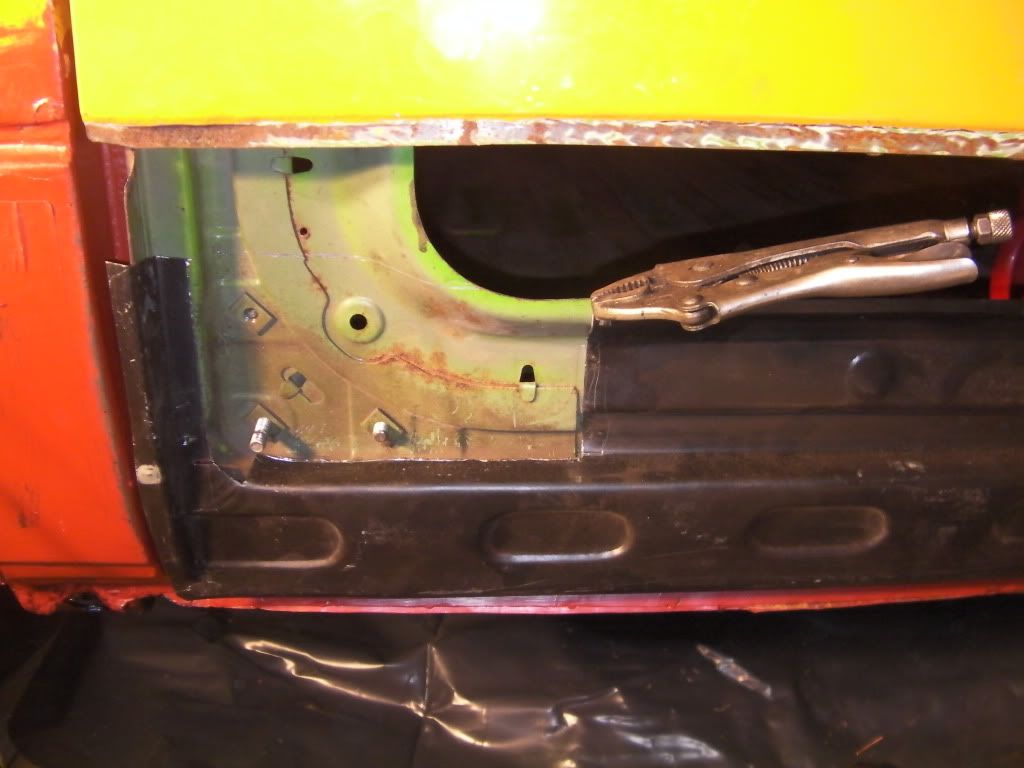

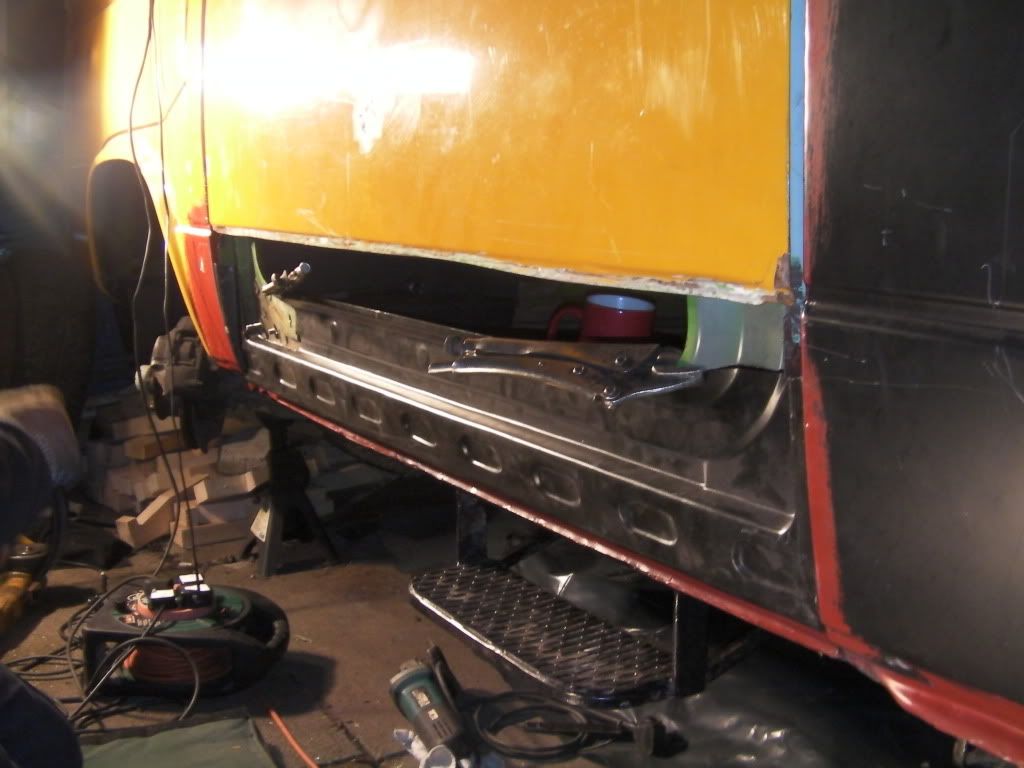

After a lot of deliberating we decided to cut most of the inner skin off as it was rusty round the bottom but leave the left corner piece in place (where the bottom bracket attaches) This bit seemed to be a seperate bit that was there for strength.

Post by **Jonnyb416** » 21 Sep 2011, 19:52

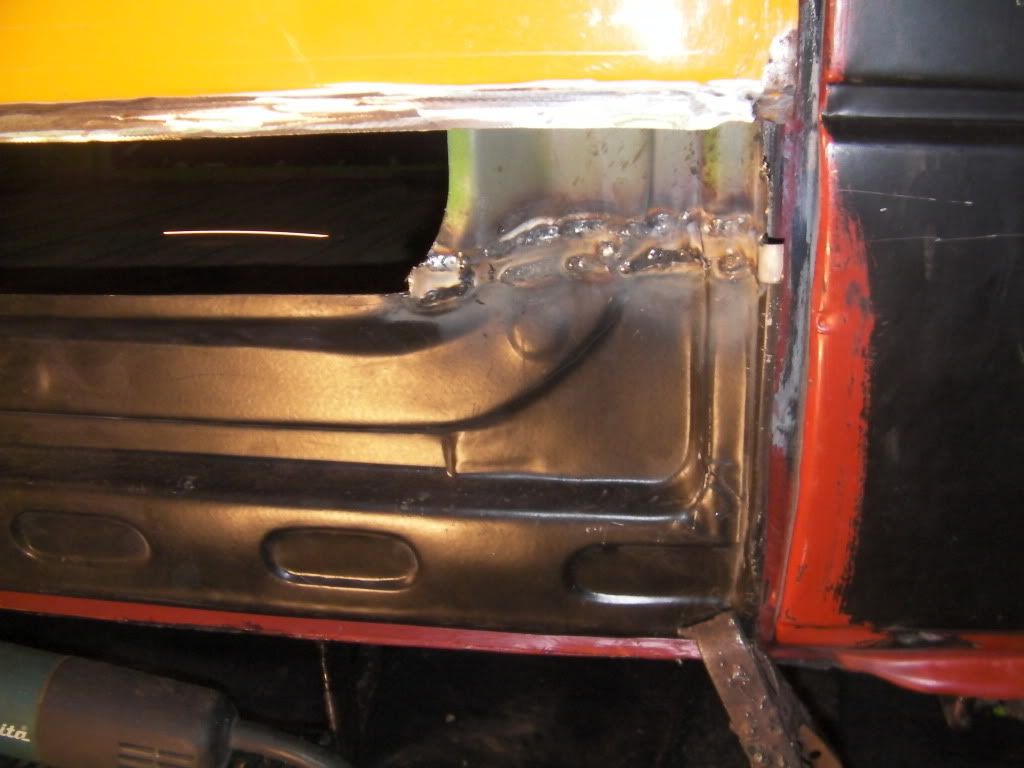

When it came to fitting had to make a small bit for here as we had cut off a bit too much.

Anyway, once it's cleaned up and painted no one will know!! Jon.

Post by **Jonnyb416** » 21 Sep 2011, 19:58

Picture of the other side. Jon.

Post by **Jonnyb416** » 21 Sep 2011, 20:00

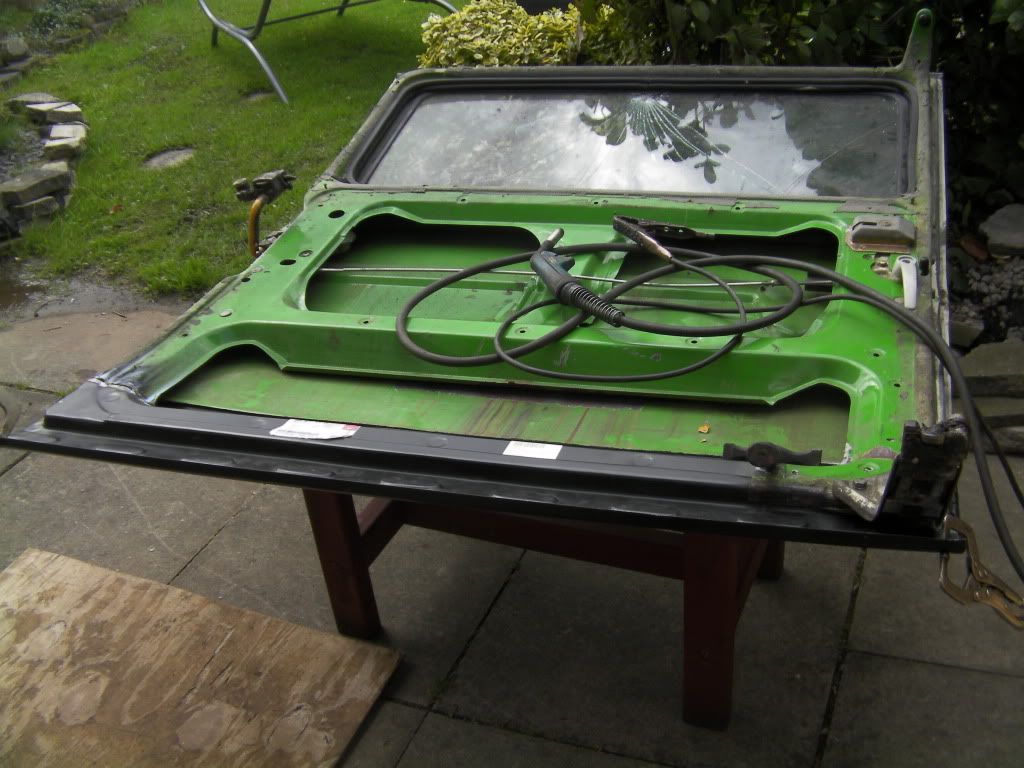

Next tacked the outer skin on whilst the door was still in place then took it off to tidy it all up. Jon.

Post by **Plasticman** » 21 Sep 2011, 20:05

WE? who cut it,you or a.n.other, as a WE cannot both hold the grinder

and yes you got the early door, the centre guide wears, mine has and a new one wasnt a million times better,
m

Post by **Jonnyb416** » 21 Sep 2011, 20:16

a.n.other held the grinder and closed his eyes and I guided him using morse code

No it wasn't me but I could have spotted it, but hey sod it.

Jon.

Post by **Plasticman** » 21 Sep 2011, 20:27

Jonnyb416 wrote:a.n.other held the grinder and closed his eyes and I guided him using morse code

thats a well thought ouit excuse, good on you
m

Post by **Jonnyb416** » 21 Sep 2011, 20:35

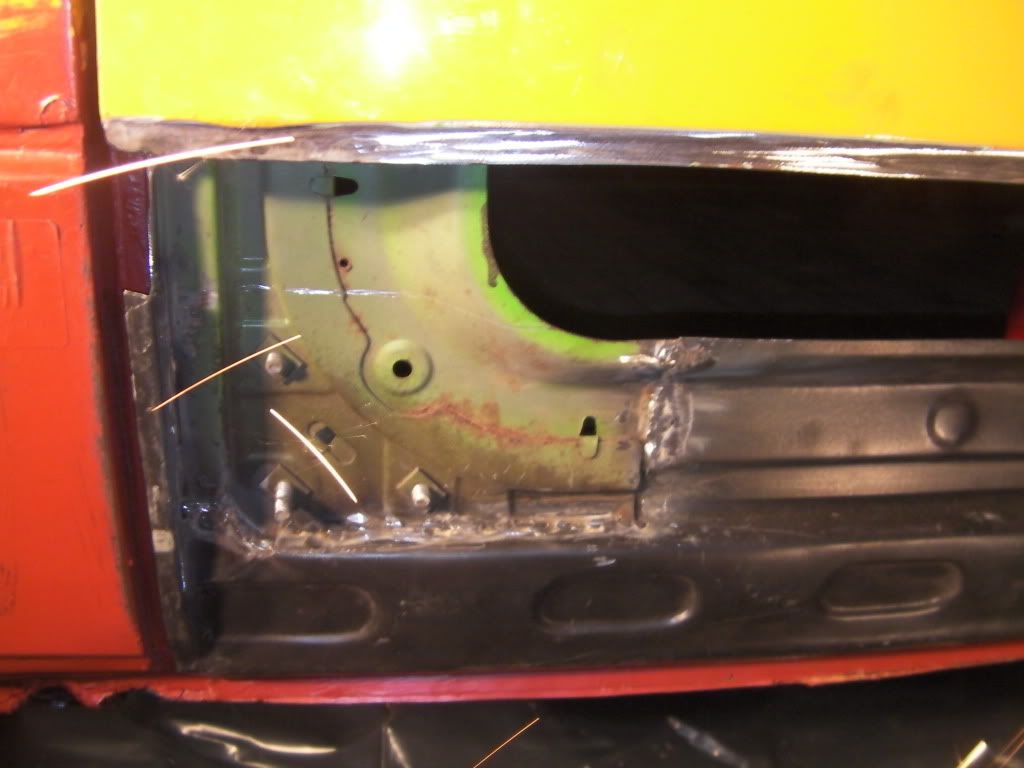

A close up here. Jon.

Post by **weldore** » 21 Sep 2011, 20:39

good work there..but do you think that looks a sharp edge on the bottom of the door?

i think when i sorted mine it was folded down there.

..also noticed the holes are gone in the new lower panel

Post by **Cruz** » 21 Sep 2011, 20:42

Inner repair pieces don't have those holes

Post by **Jonnyb416** » 21 Sep 2011, 20:45

The very bottom of the door? Or the side bottom? We folded the side bottom bit over. Will need to look at the bottom bit again though to see.

Not sure about the holes missing, where do you mean? And does it matter?

Jon.

Post by **Plasticman** » 21 Sep 2011, 20:48

cut them in and keep the waxoyl up to date

m

Post by **Cruz** » 21 Sep 2011, 20:50

On an original door the sausage shaped pressed areas along the bottom of the repair panel were holes

Unsure for what reason because they are too high to let water out

Post by **weldore** » 21 Sep 2011, 20:50

its a bit of a crud trap innit
