CE1 Fuse box - Map of G Pins.

Post by Robsey »

Hi all,

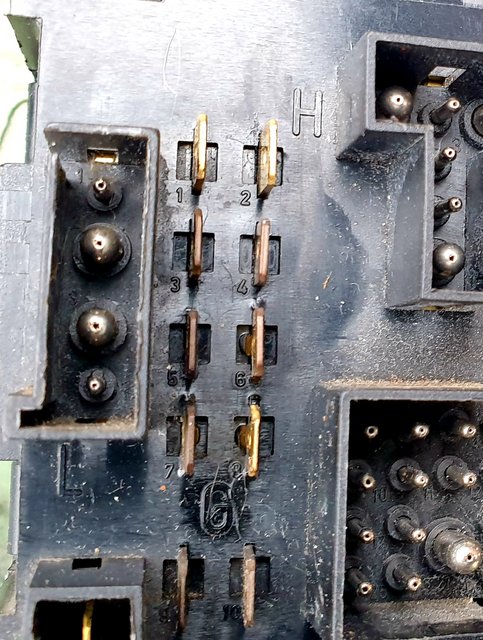

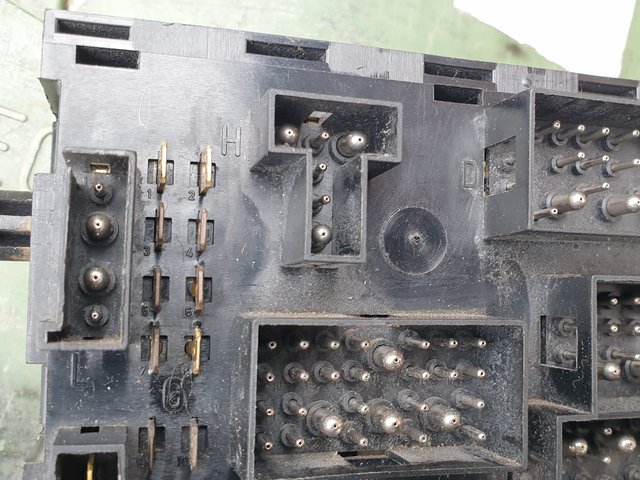

As part of my conversion from early fuse box to the later CE1 fuse box, I mapped out every single pin in the fusebox.



I found that the pins in the "G" connector cluster are not used as much as they could be.


They are numbered G1 to G10, starting top left and finishing bottom right.


So - here is what I found.

Pin G1 (top left)
X-Contact (12v when running).
Black / Yellow wire for rear warm air blower if fitted.
Internal connections to:-
E8 - Black / Grey to rear wiper motor pin 53a
G3 - see below.
Output from fuse S12 -20 amps.
Relay 11 - pin 3 (53a)

Pin G2 (top right)
Ignition live -
Optional Black wire to Cruise control where fitted.
Internal connections to:-
A25 - Black wire to brake warning indication light.
D7
G5 - see below.
Output from Fuse S18 - normally 10amps, but uprated to 15amps where cruise control is fitted.

Pin G3
X-Contact (12v when running).
Normally signified by Black / Yellow wires.
Internal connections to:-
G1 - see above
E8 - Black / Grey to rear wiper motor pin 53a
Output from fuse S12 -20 amps.
Relay 11 - pin 3 (53a)

G4
Alternator Charge Light Signal.(61 rail).
Blue wire to auxilliary battery cut-out relay pin 86 where fitted.
Internal connections to:-
A16 - sometimes wired instead of E13, or wired to B1.
B1 - Blue wire to charge light in instrument cluster
C2.
D4
E13 - Blue wire to alternator pin D+

Pin G5.
Ignition live supply
Internal connections to:-
A25 - Black wire to brake warning indication light.
D7
G2 - see above.
Output from Fuse S18 -10 amps.

Pin G6
No specific function.
Internal links only to pins:-
A4
D1

Pin G7
56 Voltage rail. (Feed to head lamp circuit).
Internal connections to:-
A9 - White / Black wire from light switch pin 56, and also to the dip / high beam stalk pin 56.
M1 - not used.

G8
Dimming illumination.
Internally connected to:-
A1 - Grey / Blue wire for all dash switches and output from light switch rheostat).

G9
Non-dimming Illumination.
Internally connected to -
A26 - Grey wire to lighting rheostat pin 58e.
E1 - Grey / Green wire to rear number plate lights,
And fuse S20.

G10
X-Contact (12v when running).
Internal connections to
A19 - Green / Red to wash / wipe stalk switch pin T
C9 - Green / Red to front washer pump.
D5.

I hope it helps.
It has allowed me to wire in a few extras without having to chop into wires.
Last edited by Robsey on 03 Apr 2021, 22:05, edited 5 times in total.
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

User avatar
Mocki
Membership Admin
Posts: 15801
Joined: 29 Sep 2005, 09:27
80-90 Mem No: 428
Location: Mansfield tel/txt 07947137911
Contact:

Re: CE1 Fuse box - Map of G Pins.

Post by Mocki »

Excellent info , banked !
Steve
tel / txt 07947137911
just one shade of very fast grey
________________

1989 2.1LpgWBX HiTop Leisuredrive Camper

User avatar
Robsey
Posts: 213
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: CE1 Fuse box - Map of G Pins.

Post by Robsey »

I have done a few tweaks, so please check for any of my corrections.
There were quite a few.

Being spade / lucar connectors, they are so easy to use for adding extras.

I notice, that it also answers a few other recent electrical threads.
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

User avatar
steveo9007
Trader
Posts: 245
Joined: 21 May 2019, 17:49
80-90 Mem No: 16902
Location: Cornwall

Re: CE1 Fuse box - Map of G Pins.

Post by steveo9007 »

interesting this, (E D I T) can i ask what sort of connections plug in the boxes with all the pins in them ?? (E D I T...i see it needs the plugs for the back on them)

Do you have a pic of this connected up in van yet ?

Found this aswell whilst i was researching more on this a while back, may help you out, not mine but could be handy

http://a2resource.com/electrical/CE1.html
1985 RHD Pop Top Autosleeper, 1.7D KY Engine 4 Speed ALD Gearbox (Bertie)

User avatar
Robsey
Posts: 213
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: CE1 Fuse box - Map of G Pins.

Post by Robsey »

The van is a long way off from getting the electrics fitted.

There are a mix of connector pins used in the various plugs.
Most are hollow round female pins of two different sizes.

But connectors P, G, M and N (extra large spade) are simple spade connectors.

As I am doing a major electrical conversion...
I was a bit of a nerd, creating huge excel spreadsheets.

I also found it interesting looking at how the CE1 fuseboard is wired up in the front-wheel drive cars.

Do be aware though, that dependent upon body type, trim level and model year, the pins used may not be exactly the same between the physical van loom and the various wiring diagrams.
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

User avatar
steveo9007
Trader
Posts: 245
Joined: 21 May 2019, 17:49
80-90 Mem No: 16902
Location: Cornwall

Re: CE1 Fuse box - Map of G Pins.

Post by steveo9007 »

Yeah no worries thanks for the info, I do like looking at stuff like this. 👌
1985 RHD Pop Top Autosleeper, 1.7D KY Engine 4 Speed ALD Gearbox (Bertie)

Stesaw
Posts: 744
Joined: 10 Aug 2019, 23:30
80-90 Mem No: 17004
Location: Coventry

Re: CE1 Fuse box - Map of G Pins.

Post by Stesaw »

I plan on doing something like this once the engine and syncro builds are done, so great info Robsey.
1985 LeisureDrive 1.9DG 5 Speed- Syncro project.. soon.. ish..
1987 Syncro JX- Donor

User avatar
Robsey
Posts: 213
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: CE1 Fuse box - Map of G Pins.

Post by Robsey »

I could do tables for all connectors, but I don't know what the best format would be.

On my other forum, we used to make everything into pdf documents.
I tend to start off as excel files, and then print to pdf.

I am just an info whore, when it comes to researching projects on vehicles.

Just for info...

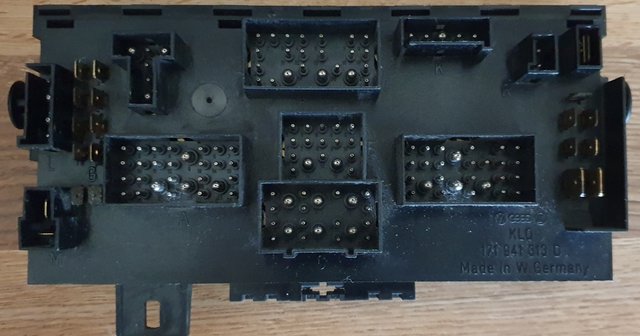

This is how I got my fusebox in 2018...
