Dashboard PCB Replacement (CJH Design)

[The Hairy Camper]

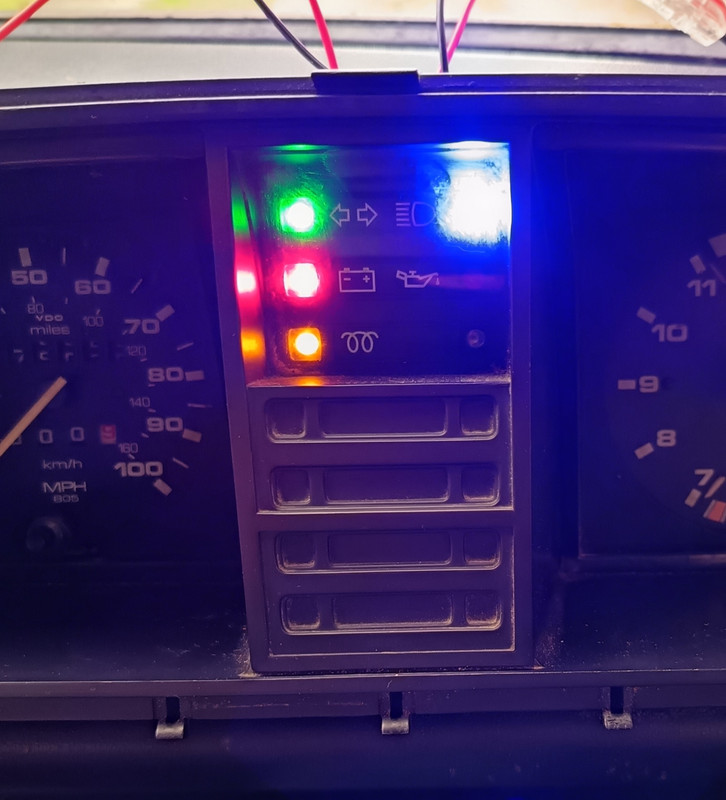

Did a quick test this morning. Van starts and all LED's are working apart from the Oil Pressure light. Oil pressure light does not even flicker on and off when ignition is on. Will need to check my wiring.

I'm not getting any voltage from the alternator either, so need to check my wires on that one as well.

Temp guage seems to be working fine, not sure about the fuel guage though as I was almost out of fuel anyway

Gauge bulbs are working with the dimmer switch.

Next step is to check my wiring and permanently mount the voltage regulator. There's not a lot of space behind the dash for it sticking out. It could come loose too.

Not a bad first test though.

[TwinTurbo]

Hot melt glue on the socket will hold it in place
