Brake pipe flares?
Moderators: User administrators, Moderators
-
jas915
- Registered user
- Posts: 228
- Joined: 08 Oct 2007, 18:27
- 80-90 Mem No: 6242
- Location: Cupar, Fife Scotland
Brake pipe flares?

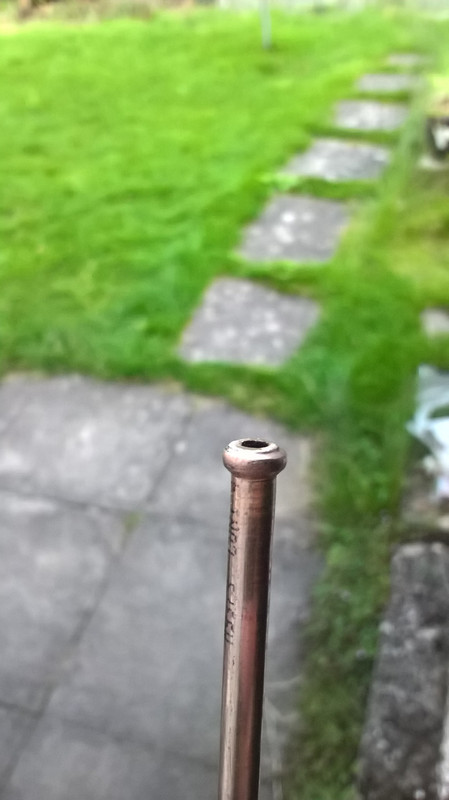

Hi got a set of brake pipes from Heritage as need to change a few and they do a full van kit already flared with the ends on that just needs bending.
However im not sure the quality of the flaring, not an expert but wondering what your thoughts are, they all seem very off center, does this matter? . I dont want to spend the time bending them and fitting to find they leak.
However im not sure the quality of the flaring, not an expert but wondering what your thoughts are, they all seem very off center, does this matter? . I dont want to spend the time bending them and fitting to find they leak.
Last edited by jas915 on 30 Aug 2019, 07:45, edited 1 time in total.
Grey/white high top, AAZ.
-
Oldiebut goodie
- Registered user
- Posts: 7487
- Joined: 18 Apr 2008, 01:19
- 80-90 Mem No: 11135
- Location: Eastern Angle
Re: Brake Flares
Look like nothing that I have seen before. ( no pics or link!)
Posted that and pics appeared!!!!
Look very rough and ready to me, I always clean the bore afterwards. Look like they have been cut with a hacksaw rather than a cutter. Not made with care in my opinion.
Posted that and pics appeared!!!!
Look very rough and ready to me, I always clean the bore afterwards. Look like they have been cut with a hacksaw rather than a cutter. Not made with care in my opinion.
1.6D 2019 VW T-Cross
200hp VW T6
1̶Y̶ ̶1̶9̶8̶7̶ ̶H̶i̶-̶t̶o̶p̶ ̶C̶a̶r̶a̶v̶e̶l̶l̶e̶
5̶0̶8̶d̶ ̶M̶e̶r̶c̶
200hp VW T6
1̶Y̶ ̶1̶9̶8̶7̶ ̶H̶i̶-̶t̶o̶p̶ ̶C̶a̶r̶a̶v̶e̶l̶l̶e̶
5̶0̶8̶d̶ ̶M̶e̶r̶c̶
-
jas915
- Registered user
- Posts: 228
- Joined: 08 Oct 2007, 18:27
- 80-90 Mem No: 6242
- Location: Cupar, Fife Scotland
Re: Brake pipe flares?
I agree,not made with care?
-
Simon Baxter
- Trader
- Posts: 3116
- Joined: 08 Oct 2005, 19:36
- 80-90 Mem No: 1
- Location: Huddersfield, WeYo.
- Contact:
Re: Brake pipe flares?
Not the tidiest I agree however it shouldn't cause any issues and should clamp down nicely.
It looks like it's been done with a flare tool for SAE 3/16" rather than the DIN 4.75mm flare used on German stuff, the bottom side should be flat.
Here's a good link to explain better than I can.
http://www.fedhillusa.com/?page=flare" onclick="window.open(this.href);return false;
if you're not wanting to bend them then we do have a lot of pre-bent pipes ready to fit like so.
Saves us a lot of time in the workshop as we can just go to the shelf and pick up what we want.
They can be a bit of a pain to post!
They are in theis category here.
https://www.brickwerks.co.uk/t3-parts/b ... ction.html" onclick="window.open(this.href);return false;
I appreciate that they won't be everyones cup of tea but if you only need one or two and you don't have access to all the tools then you can achieve a factory look with little effort.
It looks like it's been done with a flare tool for SAE 3/16" rather than the DIN 4.75mm flare used on German stuff, the bottom side should be flat.
Here's a good link to explain better than I can.
http://www.fedhillusa.com/?page=flare" onclick="window.open(this.href);return false;
if you're not wanting to bend them then we do have a lot of pre-bent pipes ready to fit like so.
Saves us a lot of time in the workshop as we can just go to the shelf and pick up what we want.
They can be a bit of a pain to post!
They are in theis category here.
https://www.brickwerks.co.uk/t3-parts/b ... ction.html" onclick="window.open(this.href);return false;
I appreciate that they won't be everyones cup of tea but if you only need one or two and you don't have access to all the tools then you can achieve a factory look with little effort.
-
jas915
- Registered user
- Posts: 228
- Joined: 08 Oct 2007, 18:27
- 80-90 Mem No: 6242
- Location: Cupar, Fife Scotland
Re: Brake pipe flares?
Thanks for that Simon, I have in the past used your pre bent lines and I agree they are great and quick to fit.however I need to replace the front to back pipe along with most of the front ones so will be costly to get the pre bent ones.hence why I brought these.
Good to hear they should tighten up ok.
Maybe I will add the pre bent ones to my growing list for my next brickwerks order
Good to hear they should tighten up ok.
Maybe I will add the pre bent ones to my growing list for my next brickwerks order
Grey/white high top, AAZ.
-
Simon Baxter
- Trader
- Posts: 3116
- Joined: 08 Oct 2005, 19:36
- 80-90 Mem No: 1
- Location: Huddersfield, WeYo.
- Contact:
Re: Brake pipe flares?
Yeah, I know when I listed these that there would be limited appeal for them.
https://www.brickwerks.co.uk/brake-pipe ... oiner.html" onclick="window.open(this.href);return false;
The prices are calculated on the amount of bends, there are quite a lot of bends hence the price.
https://www.brickwerks.co.uk/brake-pipe ... oiner.html" onclick="window.open(this.href);return false;
The prices are calculated on the amount of bends, there are quite a lot of bends hence the price.
