Radius Rod - Now fixed with photos

Post by nobbyfox »

Well what a pain in the hoop that was!!
Probably the original ones from 1990, so to say the offending item was rusted and stuck fast in an understatement.

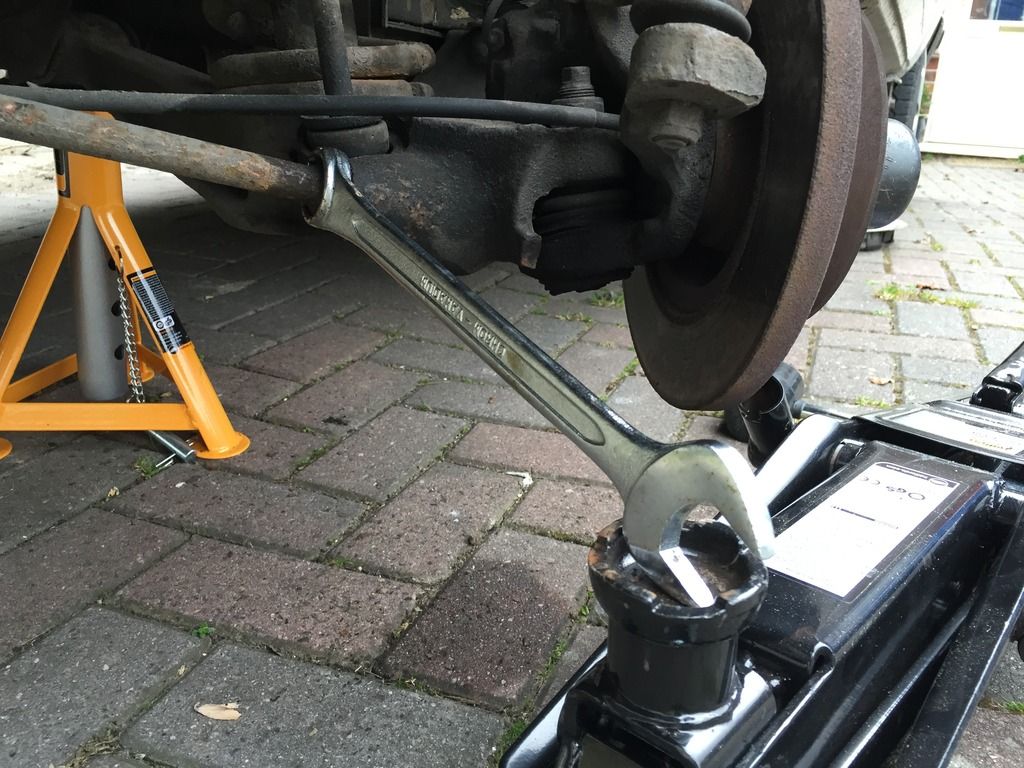

Had to use my 2.5 tonne jack to assist with leverage. Worked though :D

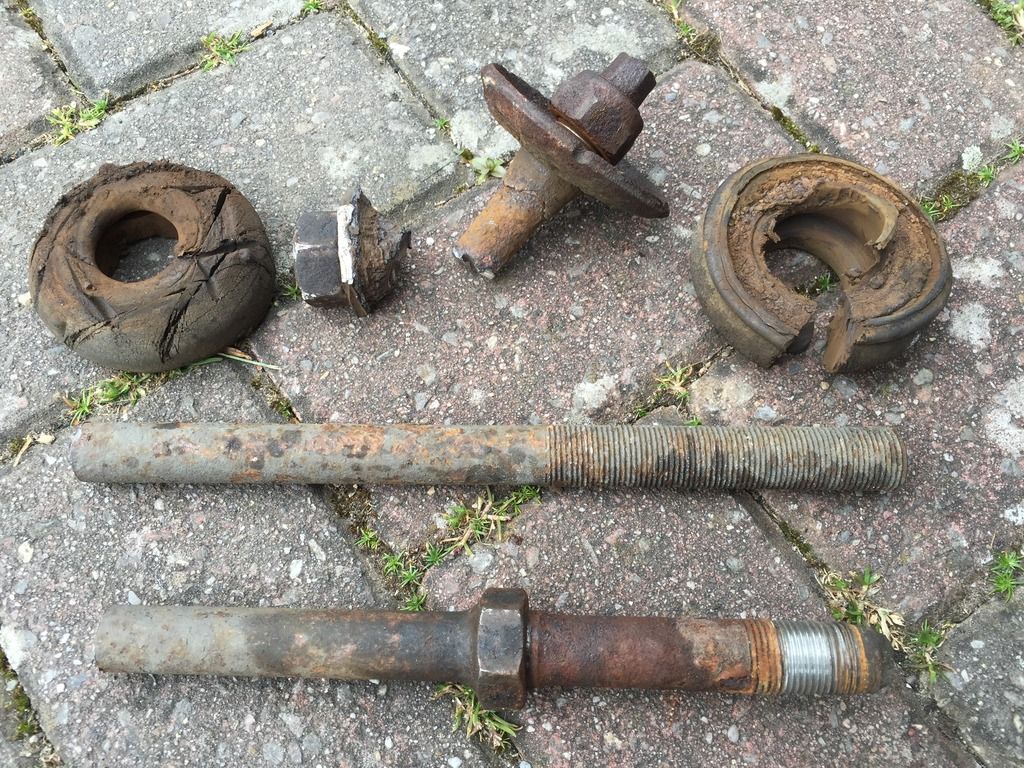

After much swearing and bashing the parts came undone. Completely rusted and no sign of the sleeve/spacer :shock:
The angle grinder was used in anger to shift the stubborn nuts on the chassis side.
There does seem to be less thread on the old one than the new version. Updated ?

Had to get the wife and kids to sit in the drivers seat to compress the suspension enough to align everything together.
Will definately do the other side before we use Dotty for our holidays.

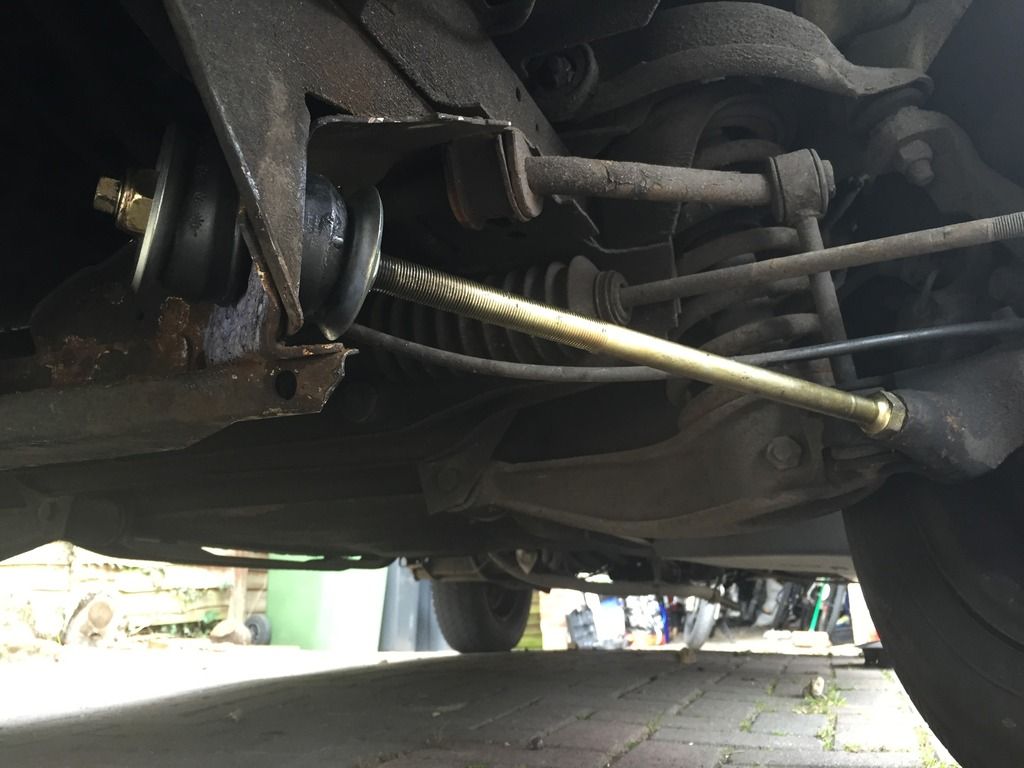

All sorted and shiny. Nice :ok
Westfalia pop-top 1990 1.6JX

User avatar
lloydy
Registered user
Posts: 8015
Joined: 24 Nov 2009, 17:54
80-90 Mem No: 5262
Location: cheam surrey

Re: Radius Rod - Now fixed with photos

Post by lloydy »

well done :ok
Time is a drug. Too much of it kills you

User avatar
nobbyfox
Registered user
Posts: 231
Joined: 20 Jul 2011, 19:38
80-90 Mem No: 9991
Location: Surrey

Re: Radius Rod - Now fixed with photos

Post by nobbyfox »

Thanks lloydy :)
Westfalia pop-top 1990 1.6JX

MiloSteel
Registered user
Posts: 5
Joined: 19 Mar 2015, 13:08
80-90 Mem No: 0

Re: Radius Rod - Now fixed with photos

Post by MiloSteel »

Nice job, like the assist from the Jack

User avatar
HarryMann
Admin/Mod
Posts: 9608
Joined: 30 Sep 2005, 11:40
80-90 Mem No: 379
Location: Herts, UK

Re: Radius Rod - Now fixed with photos

Post by HarryMann »

You WILL notice much better steering feel and response! Trust you red greased all thd bushes & sleeves ;)

The 80-90 Tech Wikipedia Your 1st port of call :idea

1.9TD Syncro Doka / Syncro Kastenwagen / 16" Kombi Camper
Syncronaut No. 1

User avatar
nobbyfox
Registered user
Posts: 231
Joined: 20 Jul 2011, 19:38
80-90 Mem No: 9991
Location: Surrey

Re: Radius Rod - Now fixed with photos

Post by nobbyfox »

Thanks Milosteel :D

Yes Harryman, plenty of rubber grease.
Westfalia pop-top 1990 1.6JX
