Spigot bearing removal WBX

Post by itchyfeet »

OK so I did this today with the Rawlbolt method, tip courtesy of Ian Hulley, probably wasn't broken but as the box was being replaced with an Aidan Talbot rebuild and as It probably has 100K miles on it I though it was time it was done.

Here are some pics for anybody who's interested....

Flywheel needs removing as the bearing won't fit through the hole, for a WBX you need new bolts and an o ring ( oiled with a little fresh oil) and a felt ring. ( Parts all available from Brickwerks)
I replaced the oil seal at the end of last year when the engine was out but this would be another thing I would recommend doing while the flywheel was off.

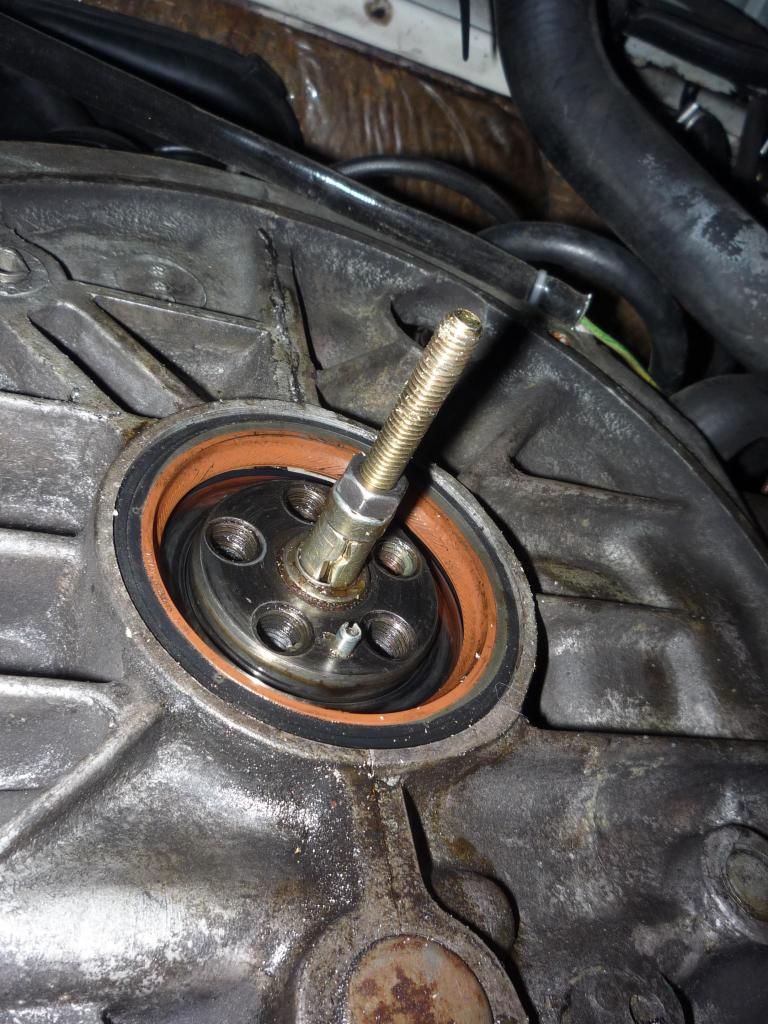

then fit an M8 Rawlbolt through the bearing, and expand it, you don't want it too far in just past the bearing, I added a nut to stop it coming out.

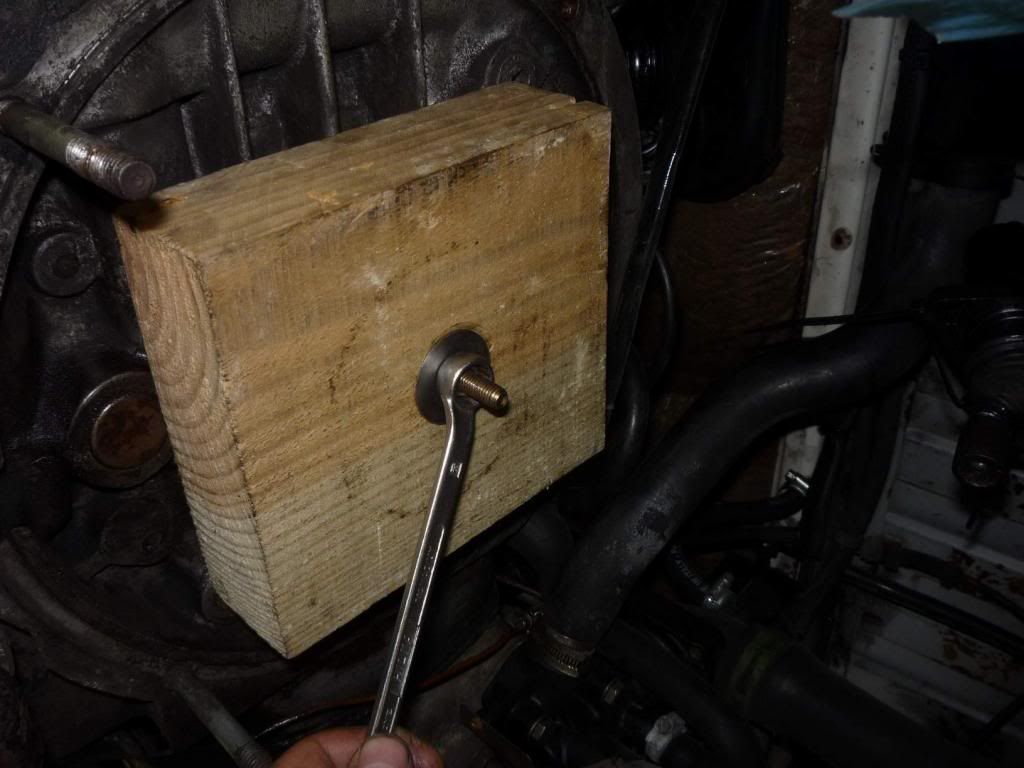

Then drill a 20mm hole in a block of wood large enough for the rawlbolt body to slide through, add a large washer and tighten.

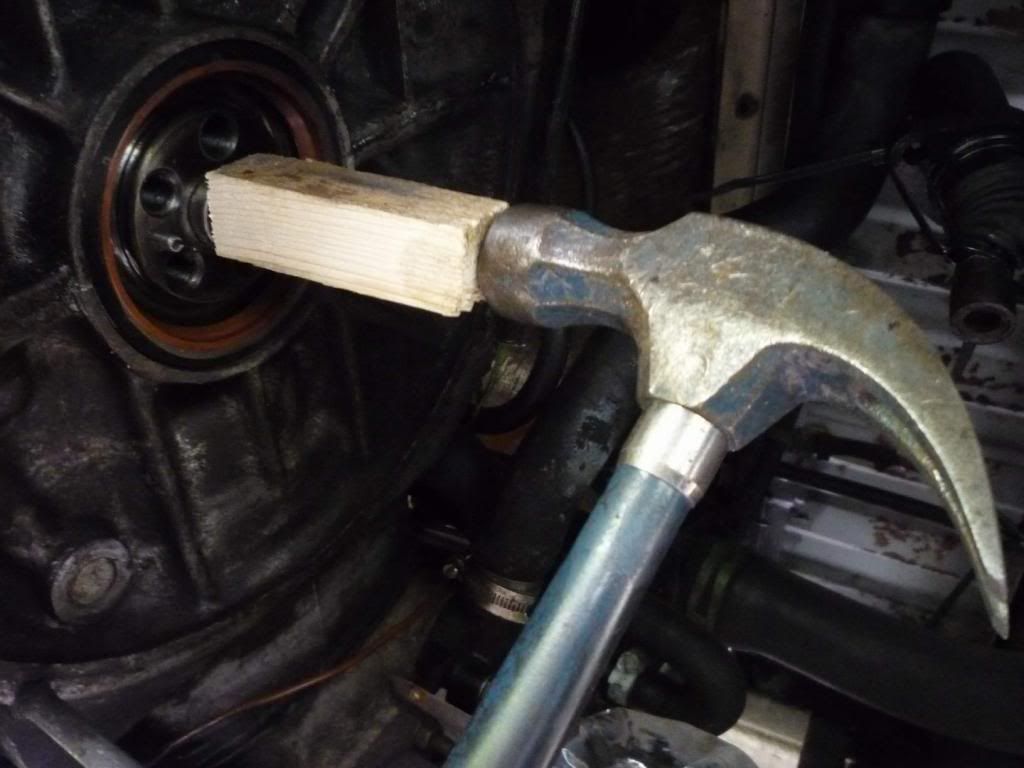

New bearing was tapped in with a wooden drift.

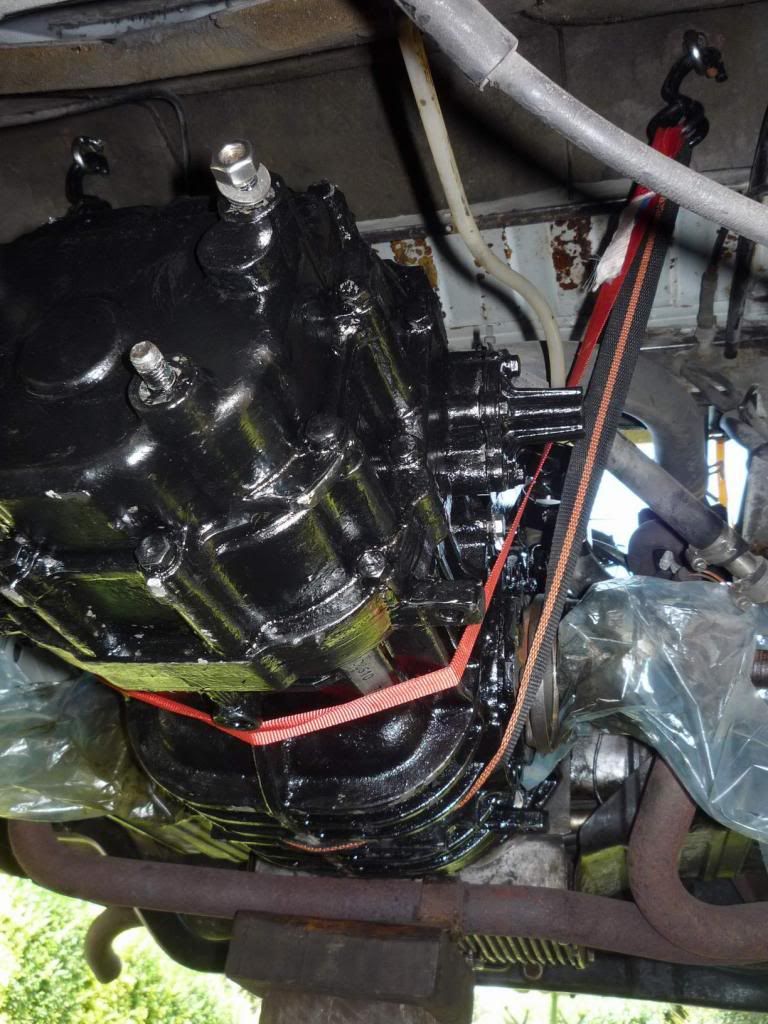

As the gearbox nearly fell on me when removing it with a trolley jack I added some eyelets ( I used existing holes but worth drilling some I think) and used ratchet straps to refit the gearbox.

Last edited by itchyfeet on 06 Jul 2013, 18:17, edited 2 times in total.
1988 DG WBX LPG Tin Top
itchylinks

User avatar
Ian Hulley
Registered user
Posts: 12661
Joined: 11 Oct 2005, 08:08
80-90 Mem No: 1323
Location: Wirksworth, Derbyshire ... or at t'mill

Re: Spigot bearing removal WBX

Post by Ian Hulley »

Glad it went ok mate. :ok

Ian
The Hulley's Bus
1989 2.1DJ Trampspotter
LPG courtesy of Steve @ Gasure

User avatar
itchyfeet
Registered user
Posts: 12425
Joined: 23 Jul 2007, 17:24
80-90 Mem No: 12733
Location: South Hampshire

Re: Spigot bearing removal WBX

Post by itchyfeet »

Just found this great guide from Aidan buried in the required information to go in the wiki post
https://club8090.co.uk/forum/viewtopic.php?f=37&t=107122" onclick="window.open(this.href);return false;

Couldn't actually find it in the wiki though :D
