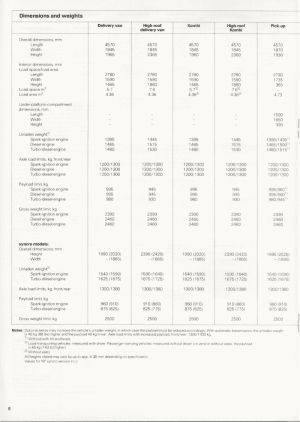

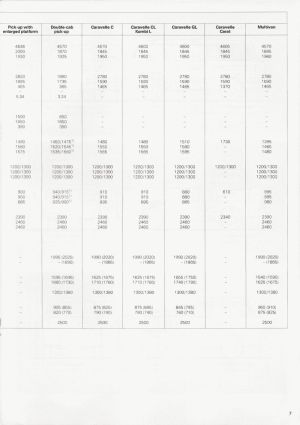

Some actual weight measurements for vans


Westfalia Internal dimensions for carrying large items

rear aperture width 110cm (10cm less with a rear 3 point belt fitted) height 70cm Length to passenger seat in forward position 300cm note it is in theory possible to remove the passenger seat on a left hand drive and load a "standard" length length of kitchen worktop of 4M reaching to the front windscreen and still close the rear hatch. Just don't brake too sharply!

click on the images to see the full size

Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127


Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

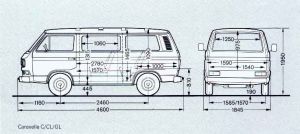

CARAVELLE C/CL/GL
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

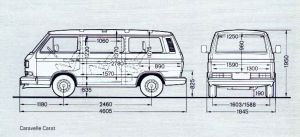

CARAVELLE CARAT
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

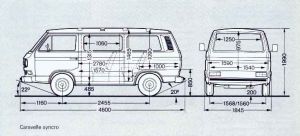

CARAVELLE SYNCRO
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

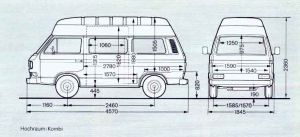

FACTORY HIGH ROOF/HOCHRAUM KOMBI
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

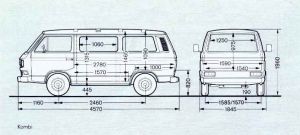

KOMBI
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

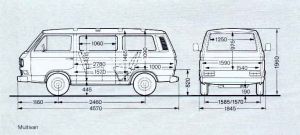

MULTIVAN
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

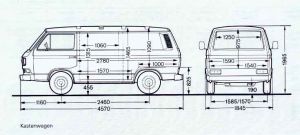

PANEL VAN/KASTENWAGEN
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

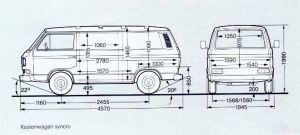

PANEL VAN SYNCRO/KASTENWAGEN SYNCRO
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

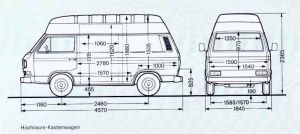

FACTORY HIGH ROOF PANEL VAN/HOCHRAUM KASTENWAGEN
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

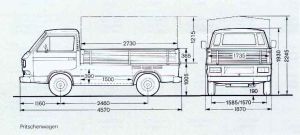

SINGLE CAB/SIKA/PRITSCHENWAGEN
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

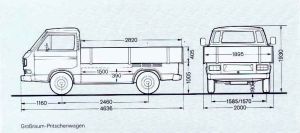

WIDE LOAD SINGLE CAB/GROßRAUM PRITSCHENWAGEN
Error creating thumbnail: sh: /usr/bin/convert: No such file or directory Error code: 127

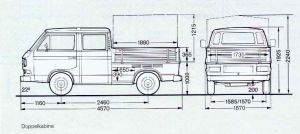

DOUBLE CAB/DOKA/DOPPELKABINE
