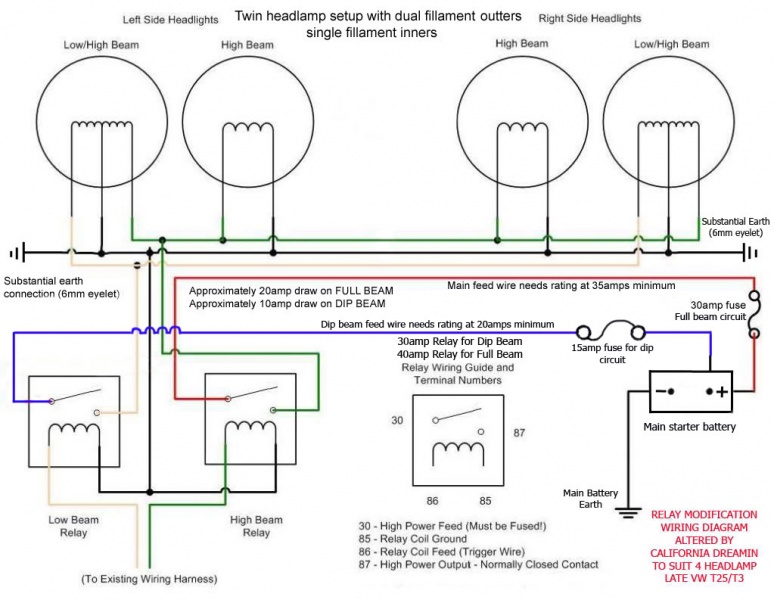

California Dreamin There are two recognised ways to 'relay' the headlamps, Fitting relays to the fuse box but leaving the existing wiring to the lamps or fitting relays and wiring from the battery and using the existing lighting circuit to switch the new relays only. This diagram represents the 'FULL' wiring relay alternative with little or no voltage drop if done properly. I can't take full credit for the diagram although I heavily modified this to suit the later four headlamp setup. Of course it can be used as the basis for twins as well. File:HeadlightRelayWiringDiagramcopycopycopy.JPG
