Wipers work but only by pulling the indicator stalk back with headlights on only
Hello all,
I'm trying to find the cause of my current challenge as per the title "Wipers work but only by pulling the indicator stalk back with headlights on only"
Under the dash the wiring is questionable.
Earth crowns are good
Pins for the relays and inside are immaculate
I have looked at the Wiki and searched but I can't fathom it out.
Before the washers wouldn't work, so they are on a separate switch. They now work (by pulling the indicator stalk back) but the switch does not. This also energises a GPS Speedo. Before the GPS Speedo would come on with ignition on. Now only by pulling the indicator stalk back.
Took the steering wheel off and everything looks good including contact ring
My blower is dead but always has been and the wipers worked before
1990 Caravelle Syncro
Can anyone point me in the right direction?
I'm trying to find the cause of my current challenge as per the title "Wipers work but only by pulling the indicator stalk back with headlights on only"
Under the dash the wiring is questionable.
Earth crowns are good
Pins for the relays and inside are immaculate
I have looked at the Wiki and searched but I can't fathom it out.
Before the washers wouldn't work, so they are on a separate switch. They now work (by pulling the indicator stalk back) but the switch does not. This also energises a GPS Speedo. Before the GPS Speedo would come on with ignition on. Now only by pulling the indicator stalk back.
Took the steering wheel off and everything looks good including contact ring
My blower is dead but always has been and the wipers worked before
1990 Caravelle Syncro
Can anyone point me in the right direction?
- Robsey
- Registered user
- Posts: 1201
- Joined: 19 May 2012, 20:45
- 80-90 Mem No: 11137
- Location: East Manchester
Re: Wipers work but only by pulling the indicator stalk back with headlights on only
Everything you describe runs on the X/ relief relay controlled live.
First thing to check is the relay.
It will be numbered 24, 18, or 100.
Very early fusebox - relay 24
Ce1 Fusebox - relay 18
Ce1 Fusebox - relay 100.
What you are doing by pulling on the high-beam flasher stalk is triggering a quirk in the wiring by bypassing the relay.
Eventually (or sooner) you will burn out the high-beam flasher switch contacts, and lose all electrics on the X relief relay feed.

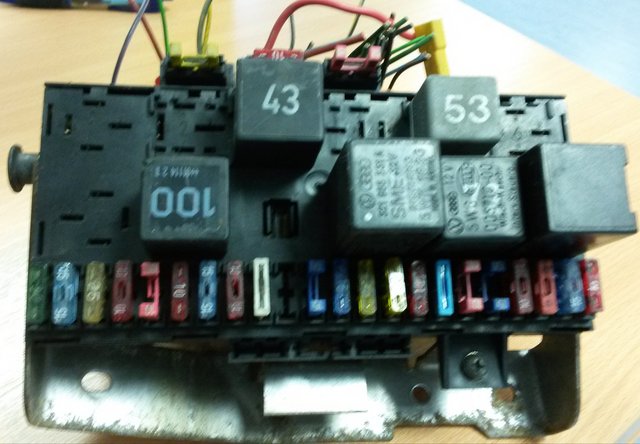

Here is a pinout of the CE1 fusebox.
