new starter motor electrical connections

[jaylo264]

Hi all,

I got a new starter motor [a while ago, have been bizzy] from Si at Brickwerks, and it has three connections whereas my old one has two -- the big bolted one on top of solenoid and the little bolted one a bit to one side.

The new one has a big bolted one at the top as before, with two not-bolted but spade males on the side.

What are these two for please, and which should I connect to my old little bolted wire?

still plodding on with the most northerly T25.......

regards,

jaylo

[itchyfeet]

Drop bwerks an email they are happy to help with questions on bits they sold you im sure

[jaylo264]

at the weekend? No bank holiday here, but Holmfirth must have many b h each month.

jaylo

[itchyfeet]

Errrr not at the weekend but i assumed as you bought it a while ago you are not in a hurry

[bigherb]

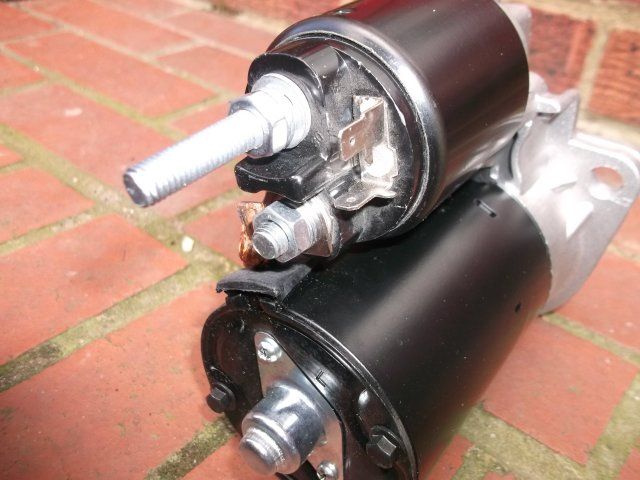

If it is like this one the two terminals are Siamese on the starter you just need to connect the red/black cable to one of them.
The starter has two terminal as some vehicle have a take off to power other things when the starter is operating.

[Oldiebut goodie]

"The starter has two terminal as some vehicle have a take off to power other things when the starter is operating."

Like a normally closed relay. Switch off lights whilst starting or the like would be a use.

[bigherb]

It's usually the electric water circulation pump like on the TD engines it runs every time you crank the engine so it doesn't seize up during the winter.

[jaylo264]

That pic is exactly the one, many thanks, will do as you suggest and connect red/black to a spade.

once again, thanks to this forum and forumites

jaylo
