Wing,arch,valance,side window&Sliding door,cab step,inr sill

Post by **Jonnyb416** » 18 Aug 2011, 11:35

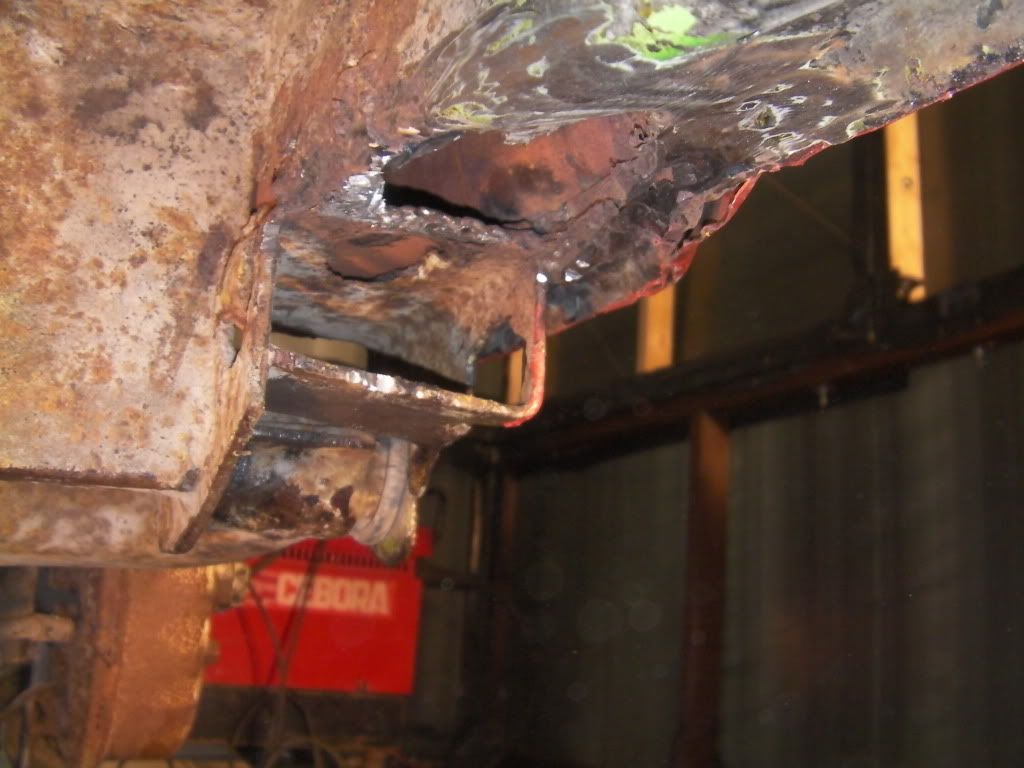

Had a little poke around the inner sill near the rear jacking point and was left with this.

Post by **Jonnyb416** » 18 Aug 2011, 11:37

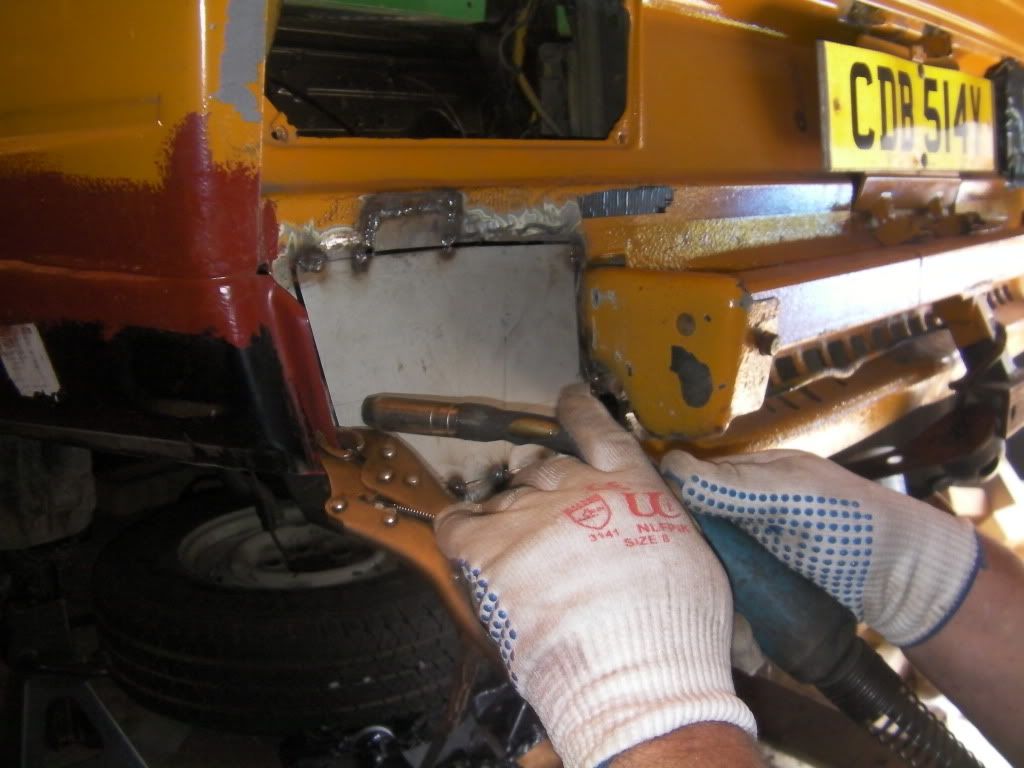

Made a piece to cover it but not got the final picture with it all finished yet. Jon.

Post by **Jonnyb416** » 18 Aug 2011, 11:45

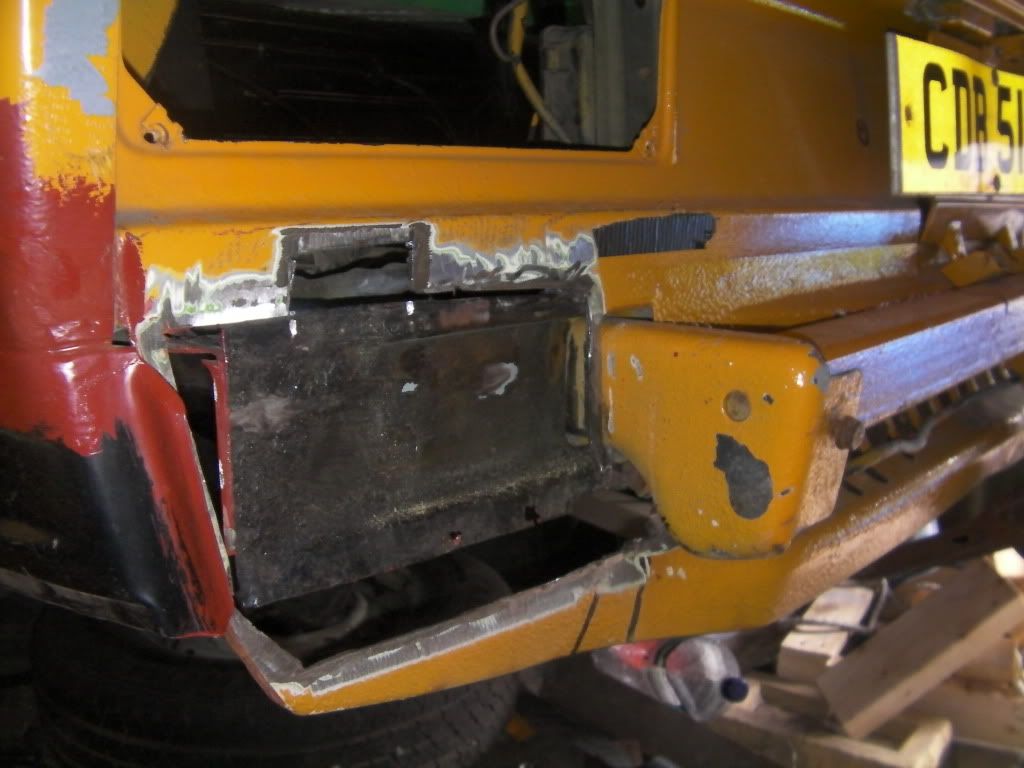

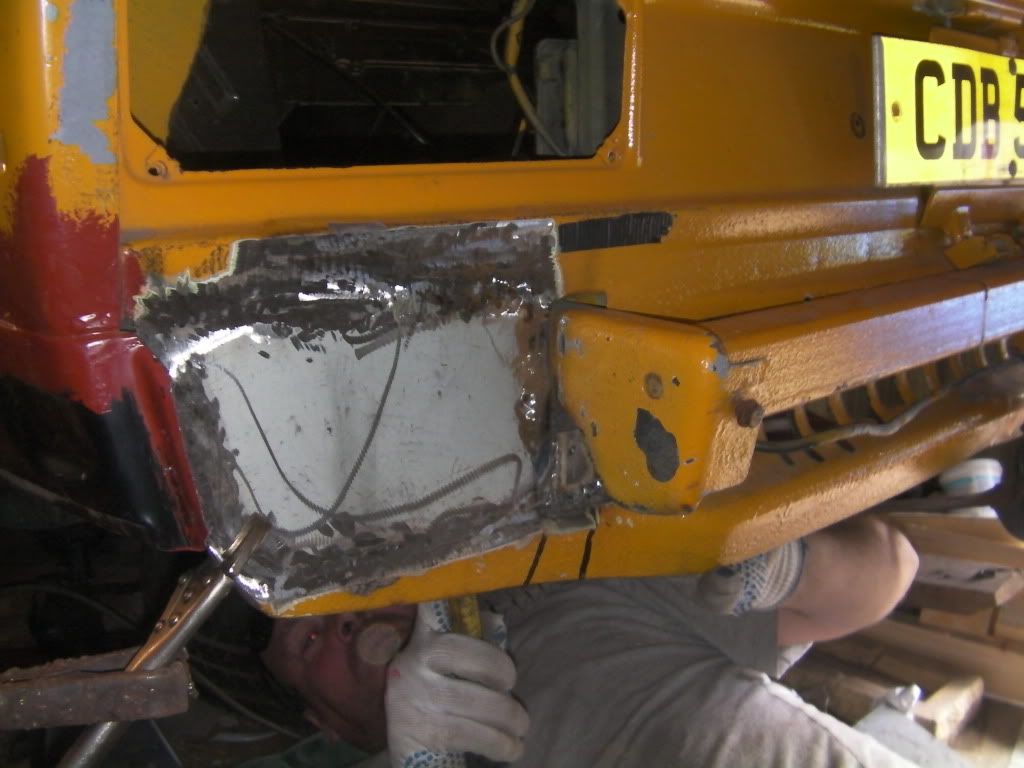

Next job was to sort this bit out. After an unsuccessful asking around for a bit to let in here so as that it matches the other side the decision was to just make a bit to cover it. I am presuming the hole and raised bit that was there is purely cosmetic? Won't see much when the bumpers on anyway. Jon.

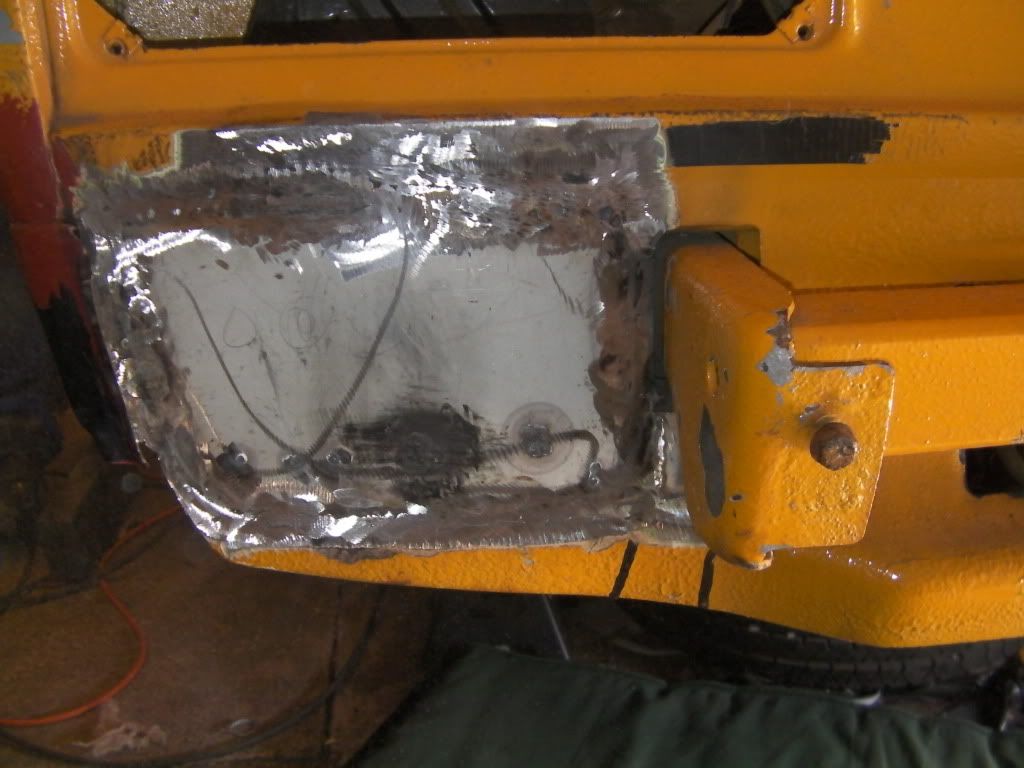

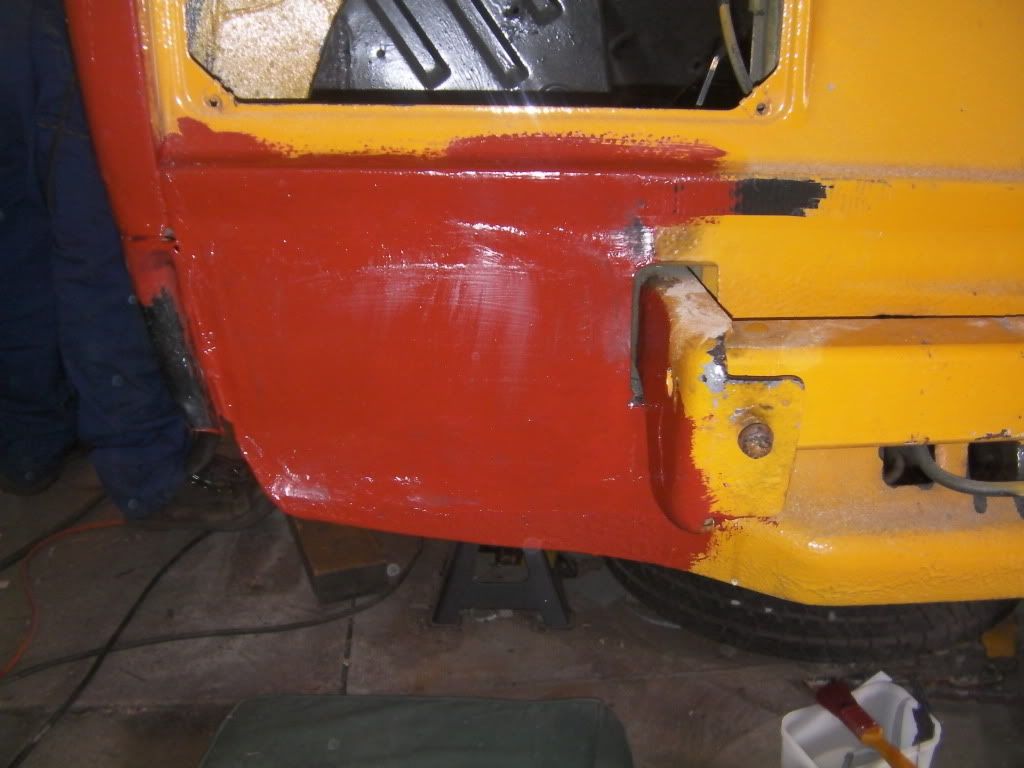

Job finished

Jon.

Post by **Jonnyb416** » 18 Aug 2011, 11:48

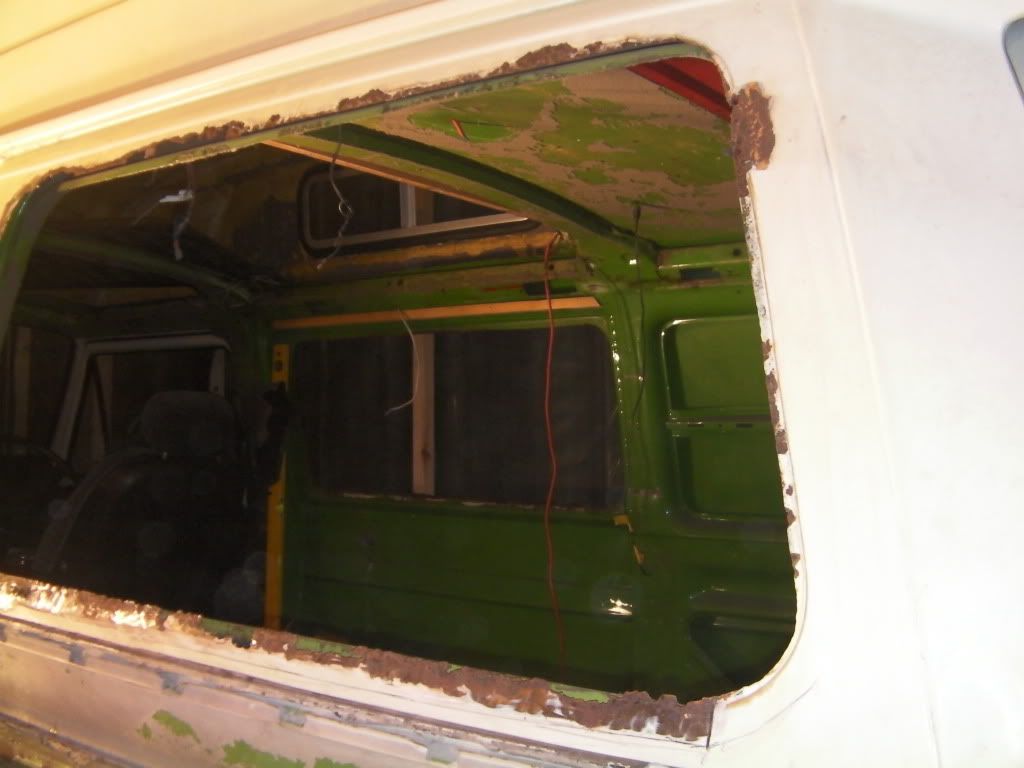

This was the bit I wasn't looking forward to at all, don't know why just doesn't seem straight forward. Jon.

Post by **Jonnyb416** » 18 Aug 2011, 12:45

So the plan was to cut bits out and weld new in and if anything make it bigger so I can cut back when I have a seal and window. Jon.

Post by **Jonnyb416** » 18 Aug 2011, 12:48

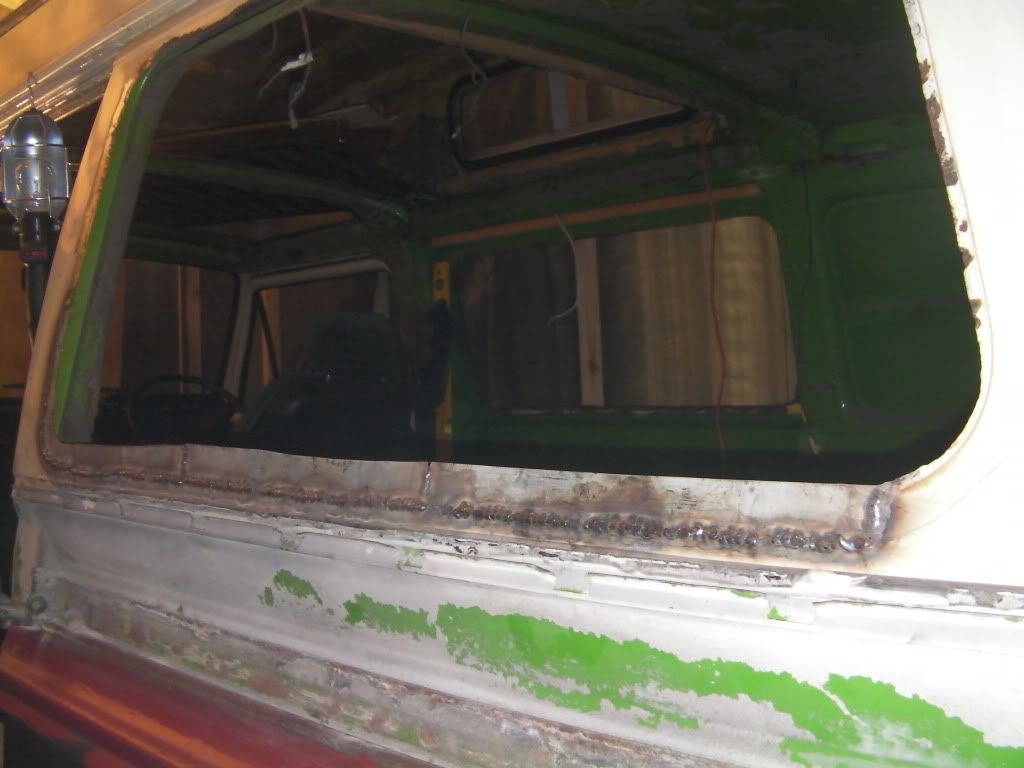

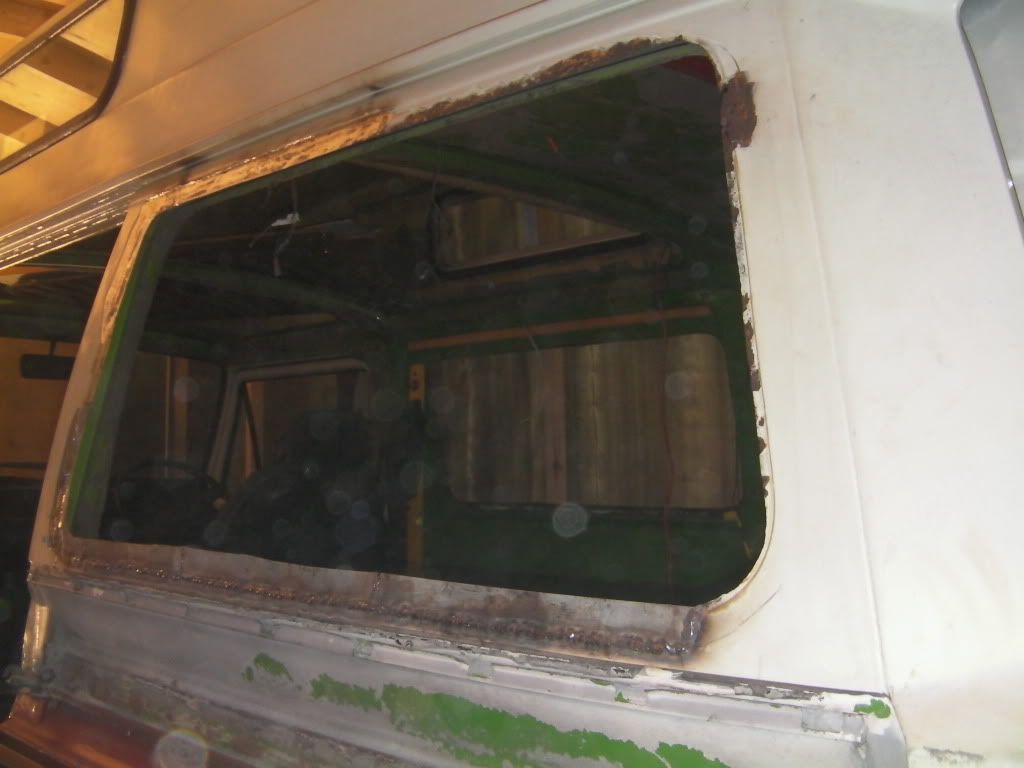

Bottom run done. Cutting the new metal for the lower left corner of the window was bloody hard for an amateur like me. Jon.

Post by **Jonnyb416** » 18 Aug 2011, 12:50

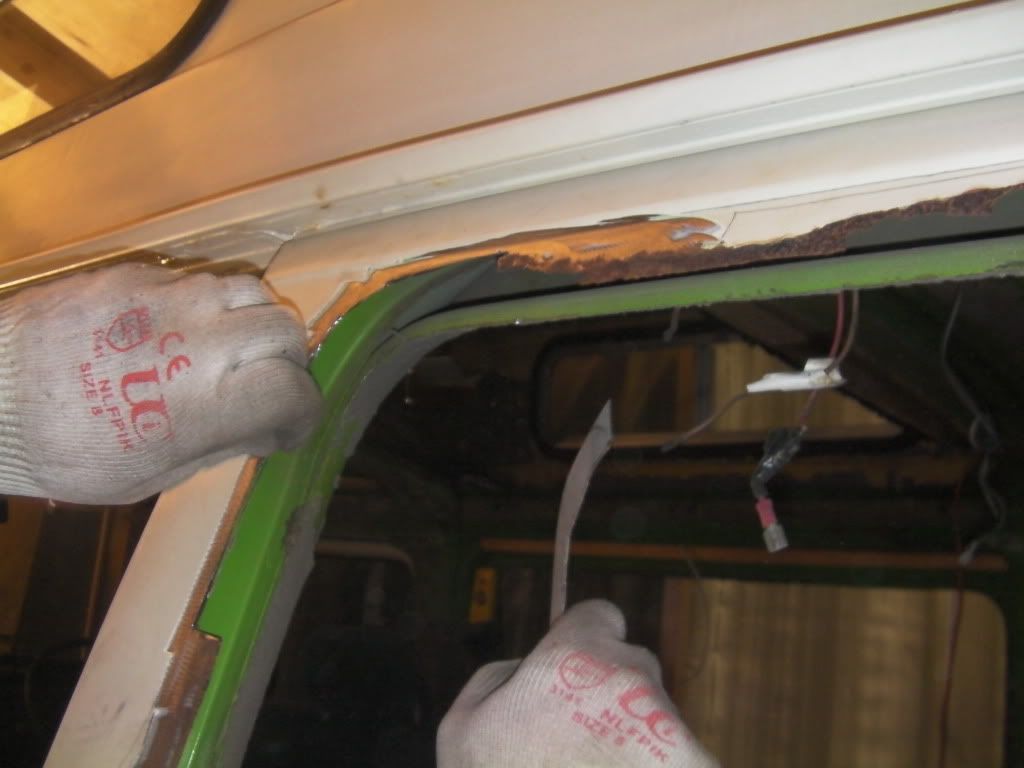

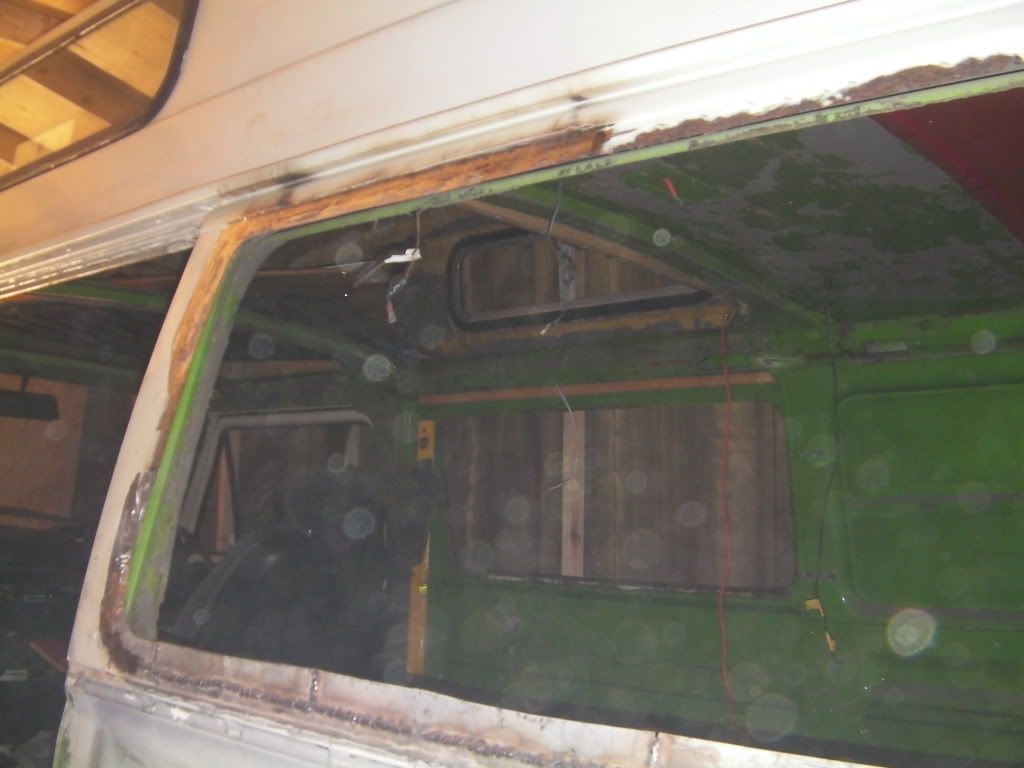

Across the top and corner was pretty bad too. Jon.

Post by **Jonnyb416** » 18 Aug 2011, 12:54

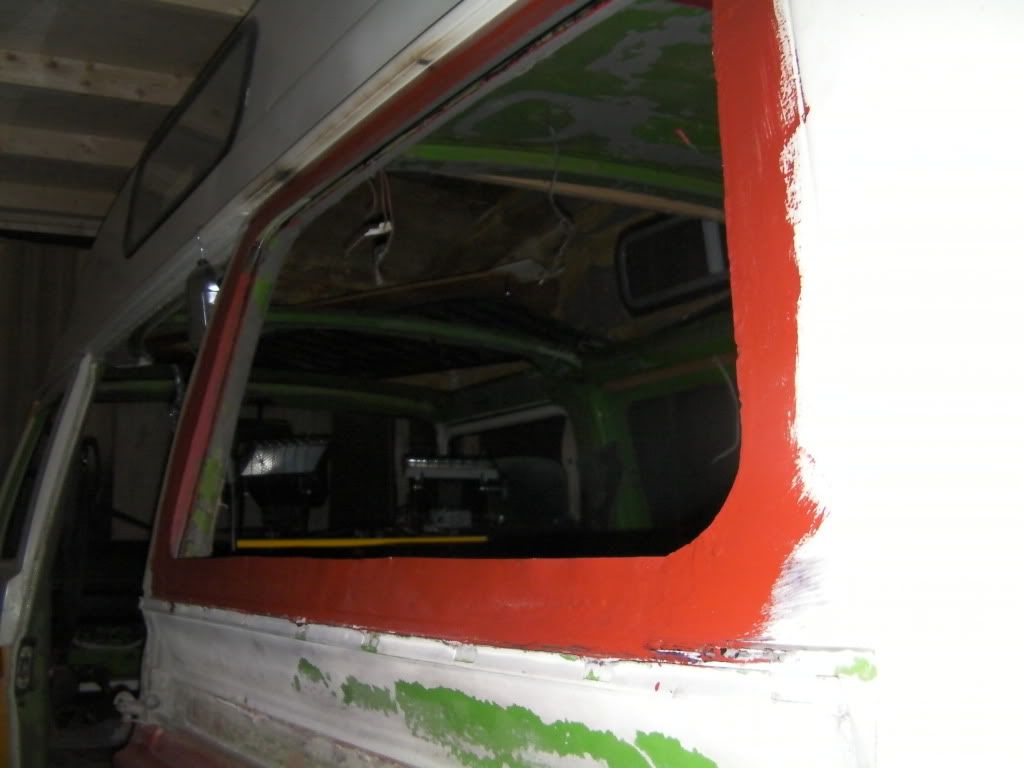

Nearly done, this is as far I got with the pictures for now. Jon.

Post by **New Kentish Campers** » 18 Aug 2011, 13:23

Looking good, make sure you trial fit the window before you fill any joints and begin painting [ cos I did it once and didn't try the glass and had to do it all again. Many years ago, you understand..

]

Post by **Jonnyb416** » 18 Aug 2011, 21:50

Thanks for the advice there Doug

never fitted a window before but will give it a go soon. Jon.

Post by **MarkyBoyT25** » 19 Aug 2011, 02:46

you do love your Van Mr

Lovely work by the way, fair play mate!

I used 2 big cans of wax-oil under mine and im gonna get 2more and carry on protecting mine

Im loving the energy and love you have for your Type 25's

We must be mad

well worth the good times and smiles to be had tho

Post by **Jonnyb416** » 19 Aug 2011, 21:48

I really am so happy about you feeling the love about me feeling the love for the love of my van

Jon.

Post by **Jonnyb416** » 04 Sep 2011, 18:39

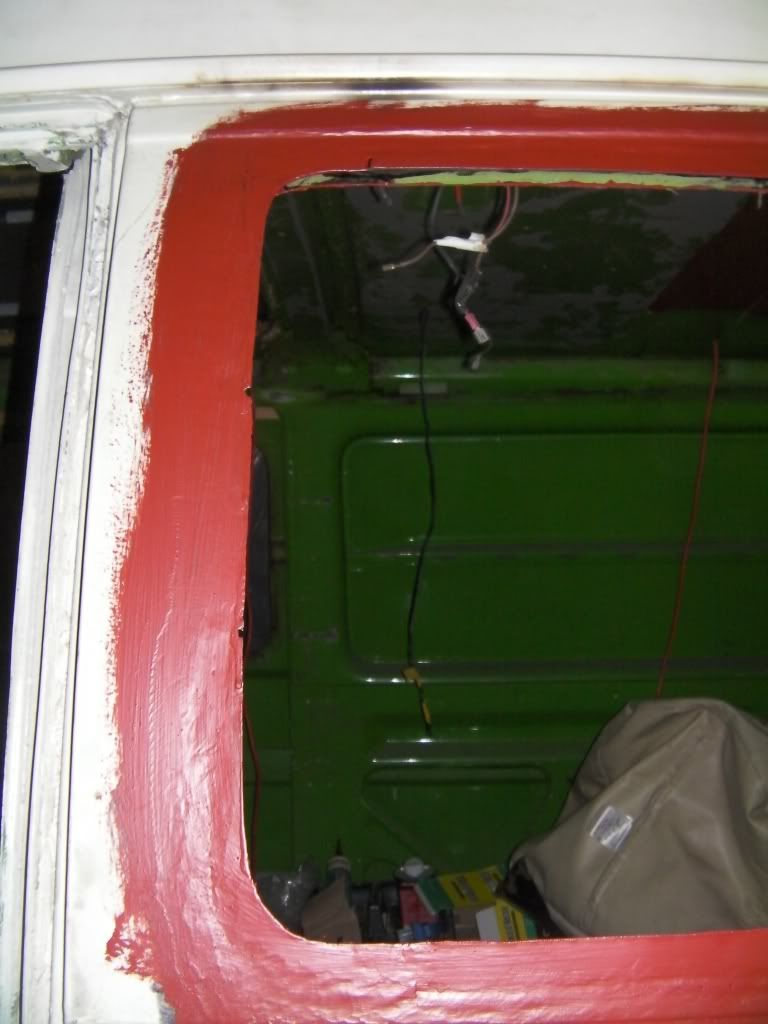

Took these today, first off the window repair in red oxide. Jon.

Post by **Jonnyb416** » 04 Sep 2011, 18:52

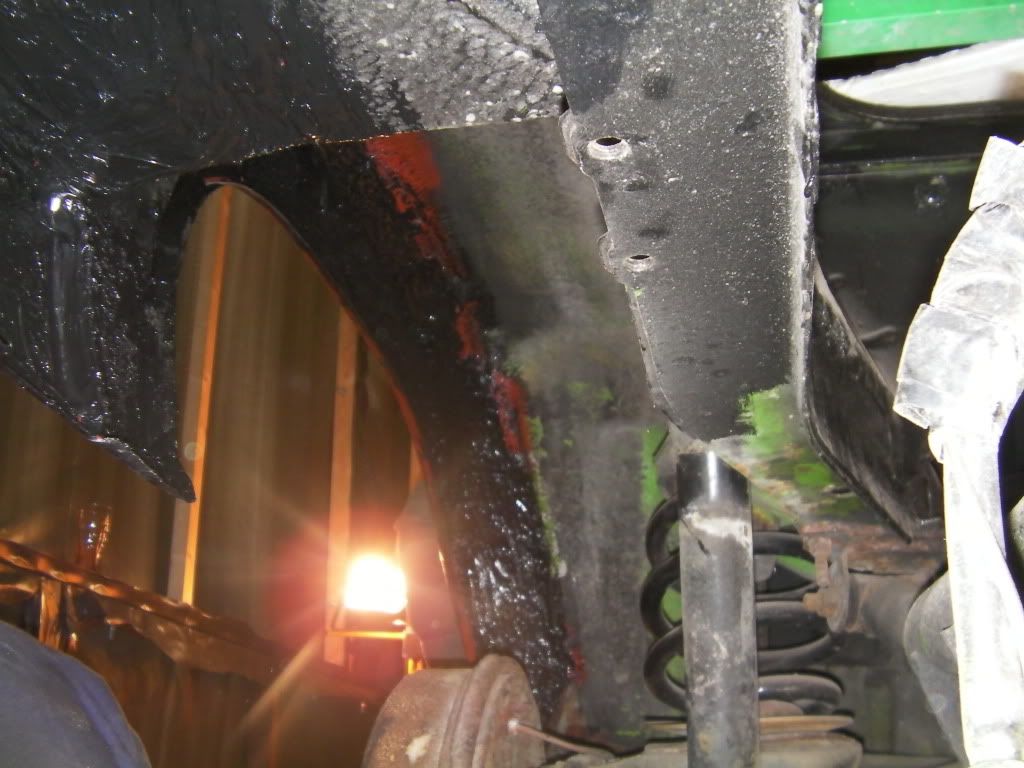

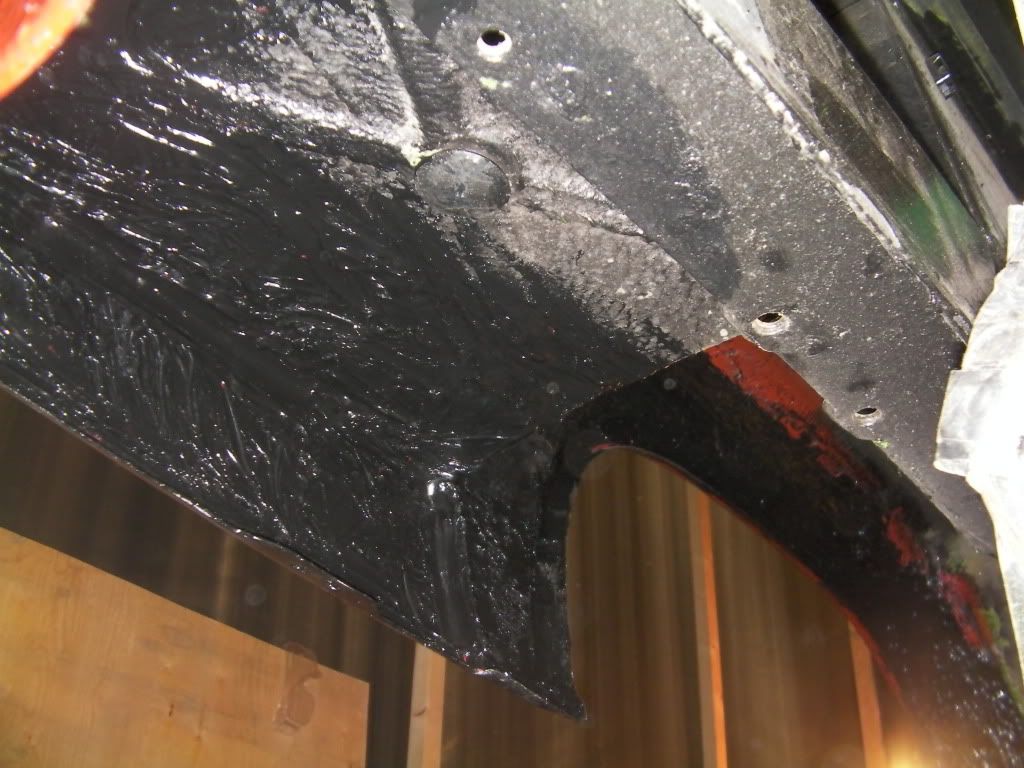

This is what I did today, used soudaflex to seal the rear arch and surrounding area. Was sticky fun but used gloves this time.

Jon.

Post by **Jonnyb416** » 21 Sep 2011, 19:04

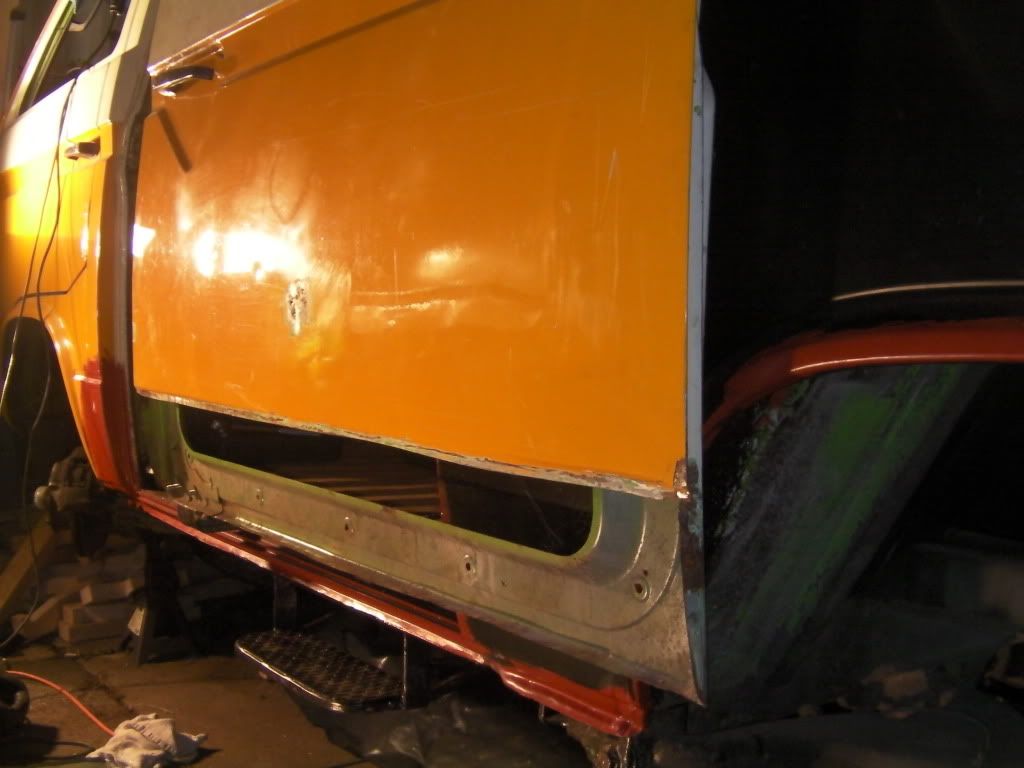

Started off with this today, the sliding door had had the outer skin chopped off by the previous owner. Jon.
