Oil Leak (Was small, now isn't)

Post by MagicWagon »

I have a 1983 Air Cooled 2.0L Devon which has for a couple of years had a very small oil leak (maybe a tablespoon on the floor after a run which then stopped).
After the last couple of runs it has worsened considerably; maybe half a cup full or more, and still dripping after a couple of days.
It's not the push rod seals (been done) and it appears to be from rear of the engine and dripping mainly from around the curved support crossmember thingy across the back.
The engine runs really well, but obviously it's telling me not to push my luck any more.
I realise this is almost certainly an engine-out job, but I wondered if there are any "usual suspects" that would fit this location and description.
My wife (who's van it is really) wants it to go in to be done "properly" but I'm keen on having a go at it myself.
She's worried it won't be on the road for the spring if I do it myself, and I'm keen to avoid any "i told you so...." scenarios.
Also, are all parts readily available for these engines, whatever the cause turns out to be ?
1983 2.0L Air Cooled Devon Moonraker

User avatar
937carrera
Posts: 3526
Joined: 05 Apr 2015, 19:29
80-90 Mem No: 16333
Location: N Yorks.

Re: Oil Leak (Was small, now isn't)

Post by 937carrera »

That sounds like the oil pump area. You should spend some money on brake cleaner, get it sprayed up there to clean the area and then find out where the leak is really coming from.

Parts are pretty much available
1981 RHD 2.0 Aircooled Leisuredrive project, CU engine
1990 RHD 1.9 Auto Sleeper with DF/DG engine

davidoft1
Posts: 1103
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: Oil Leak (Was small, now isn't)

Post by davidoft1 »

2 main possibilities, the front crank oil seal or the oil pressure switch, oil pressure switches leak quite often, 2 minute job to change, make sure to get the right colour, its tucked down next to the distributor, crank oil seal is fairly easy, engine in job, about an hour possibly 2 if your slow , try the switch first

User avatar
937carrera
Posts: 3526
Joined: 05 Apr 2015, 19:29
80-90 Mem No: 16333
Location: N Yorks.

Re: Oil Leak (Was small, now isn't)

Post by 937carrera »

davidoft1 wrote: oil pressure switches leak quite often,

Agreed, but this is a CU engine so no second oil switch at the back - I thought of that too and then realised there wasn't one
1981 RHD 2.0 Aircooled Leisuredrive project, CU engine
1990 RHD 1.9 Auto Sleeper with DF/DG engine

davidoft1
Posts: 1103
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: Oil Leak (Was small, now isn't)

Post by davidoft1 »

937carrera wrote:
davidoft1 wrote: oil pressure switches leak quite often,

Agreed, but this is a CU engine so no second oil switch at the back - I thought of that too and then realised there wasn't one


yeah ive done a few, the oil switch is above the oil filter, tends to run down the rear of the engine

User avatar
tobydog
Posts: 857
Joined: 07 Mar 2009, 21:03
80-90 Mem No: 6484
Location: Near Saarfend, Essex

Re: Oil Leak (Was small, now isn't)

Post by tobydog »

Oil presure switch is accesible from the top of the engine. Box spanner comes in handy.

Mechanical fuel pump leaking oil?
Knowledge is power
1970 CU

User avatar
937carrera
Posts: 3526
Joined: 05 Apr 2015, 19:29
80-90 Mem No: 16333
Location: N Yorks.

Re: Oil Leak (Was small, now isn't)

Post by 937carrera »

davidoft1 wrote:
yeah ive done a few, the oil switch is above the oil filter, tends to run down the rear of the engine

Too much time on WBX's :oops: , the CU pressure switch is of course on the top near the oil cooler, speaking of which it could also be the seals on the cooler that are leaking
1981 RHD 2.0 Aircooled Leisuredrive project, CU engine
1990 RHD 1.9 Auto Sleeper with DF/DG engine

MagicWagon
Posts: 229
Joined: 17 Jan 2016, 19:38
80-90 Mem No: 0

Re: Oil Leak (Was small, now isn't)

Post by MagicWagon »

Many thanks for all the replies. Just going to summarise the possibilities so far in case I've misunderstood
* Oil Pump area
* Front crank oil seal
* Oil pressure switch (Near oil filter or near oil cooler ?)
* Oil filter
* Oil cooler
* Mechanical fuel pump

From what I gather from the replies, these should all be do-able fairly easily without removing the engine, is that correct. :D
Also, should I be able to diagnose/remedy all or any of these without removing tinware ? (not that I mind doing that, but don't want to do it if not necessary.
1983 2.0L Air Cooled Devon Moonraker

User avatar
sarran1955
Posts: 1215
Joined: 11 Mar 2009, 18:51
80-90 Mem No: 6754
Location: 6, les Hauts de Sarran 19800, Sarran ,Limousin ,FRANCE

Re: Oil Leak (Was small, now isn't)

Post by sarran1955 »

Hello,

This may help...

https://www.youtube.com/watch?v=uRXNqBHH-LE" onclick="window.open(this.href);return false;

Air-Cooled Bliss 8)

:ok
Help and advice on Aircooled engines here:
http://www.youtube.com/user/sarran1955/videos?view=0" onclick="window.open(this.href);return false;

davidoft1
Posts: 1103
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: Oil Leak (Was small, now isn't)

Post by davidoft1 »

The oil pump is fairly involved, exhaust off, engine hanger etc, could take a whole day, the oil light switch will take less than 2 minutes and cost under £5 oil cooler seals are quite involved too, the crank oil
Seal is an hour or 2 at the most

I would start easiest first

Oil switch
Fuel pump( but this is at the opposite end of the engine)
Oil seal
Oil cooler
Oil pump

MagicWagon
Posts: 229
Joined: 17 Jan 2016, 19:38
80-90 Mem No: 0

Re: Oil Leak (Was small, now isn't)

Post by MagicWagon »

Thanks again for that. That's great info.
I got under and gave it a cleanup and debunk, and I seem to have found the general location of the leak (at least the main leak).

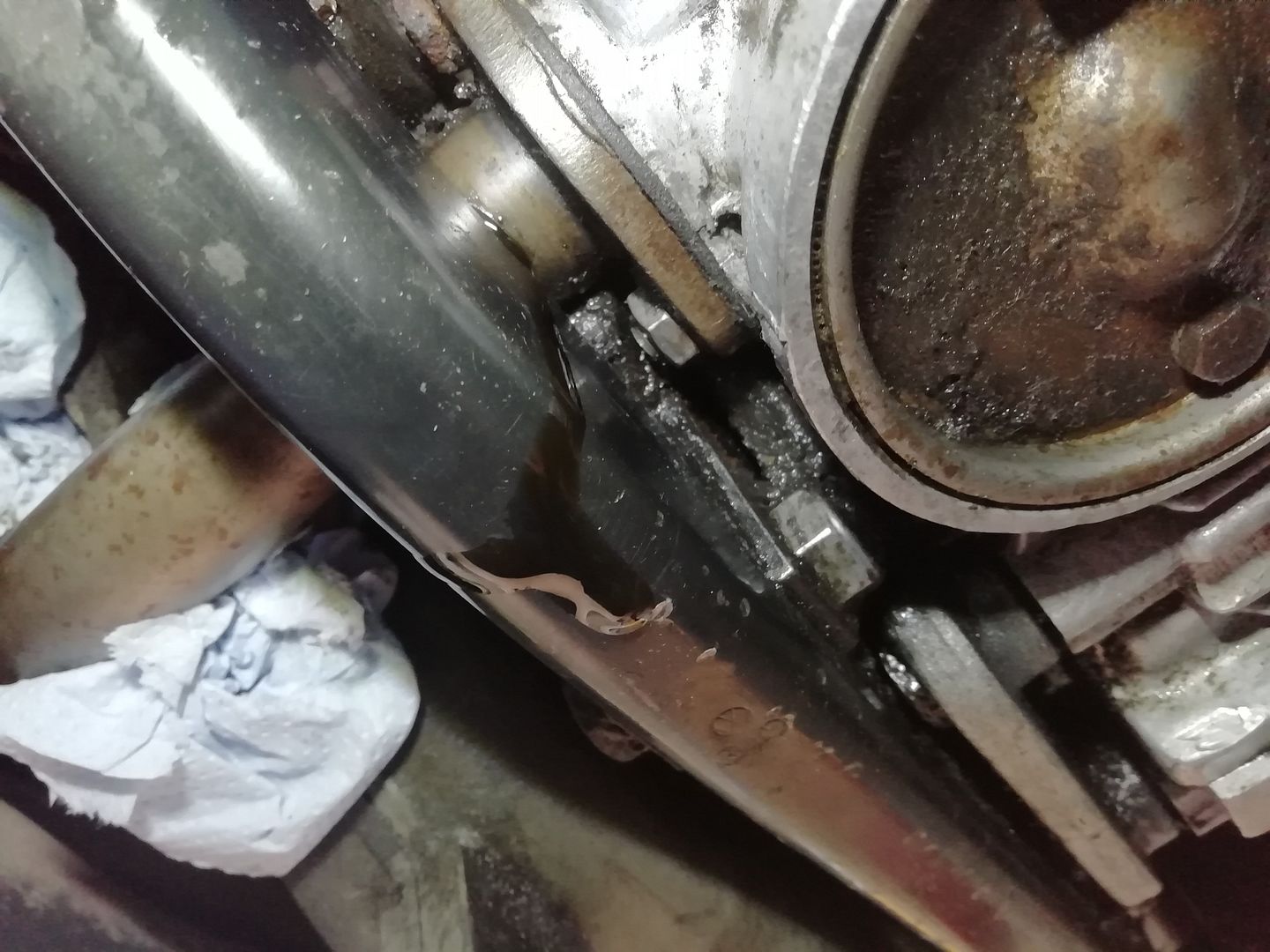

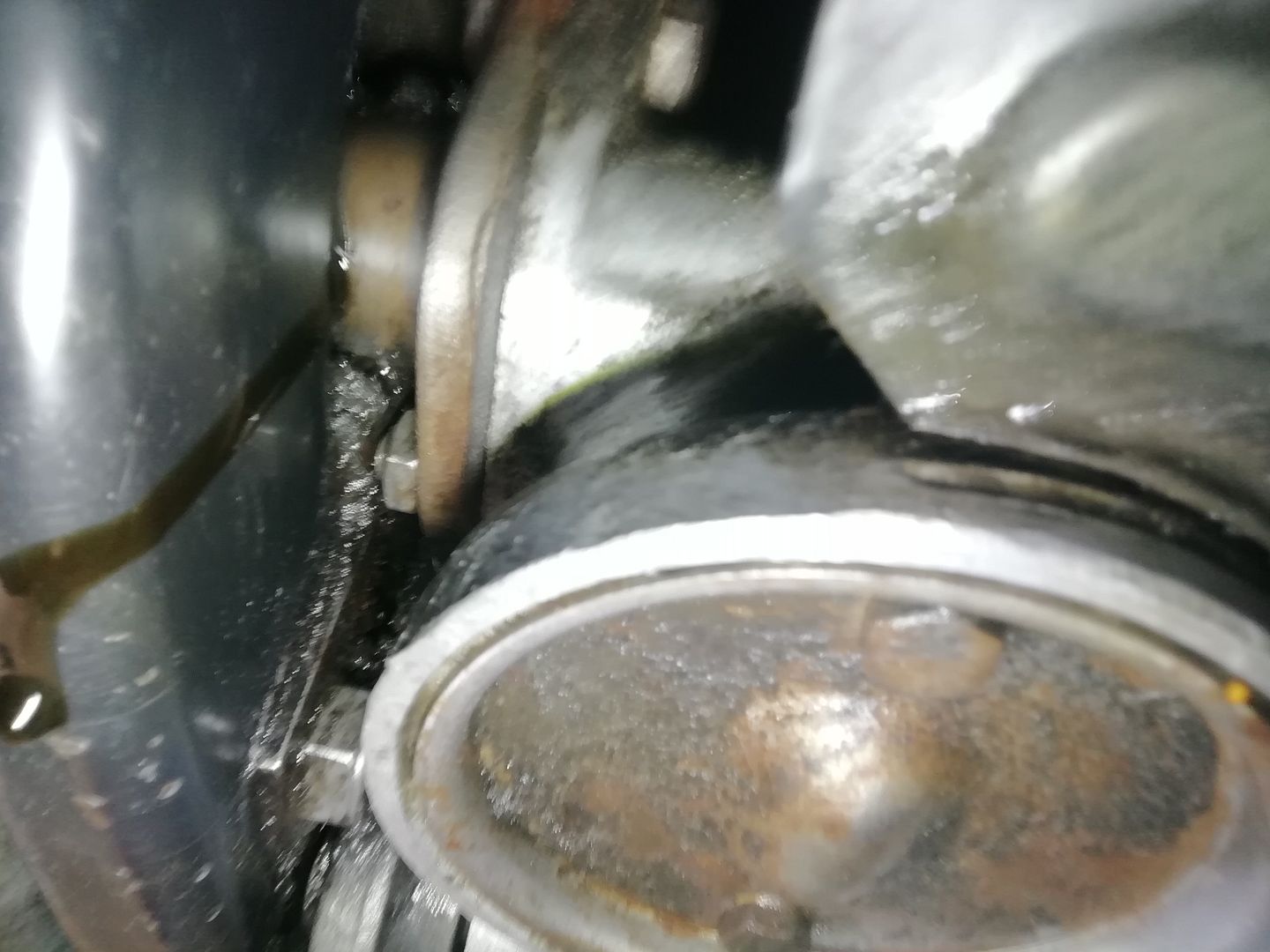

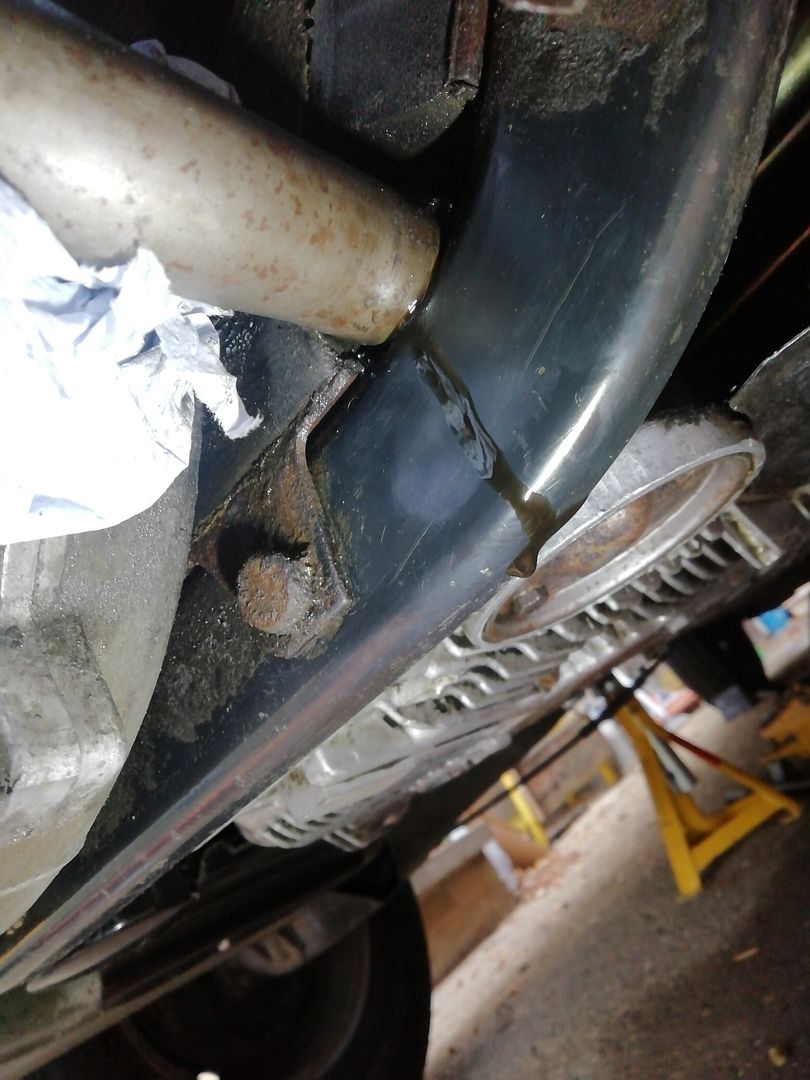

See attached photos. It seems to be running from the oil filler tube onto the support/crossmember thingy.
Looking closely at the pics, it doesn't look like it's coming from the gasket on the filler pipe, unless its from the upper section.
Does this give any clues as to the source ? Is there anything above this that could be leaking and dripping/running onto this pipe ?
I can't see without starting to remove bits.


1983 2.0L Air Cooled Devon Moonraker

davidoft1
Posts: 1103
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: Oil Leak (Was small, now isn't)

Post by davidoft1 »

I would say you’re engine mounts have failed and the engine has sat in the oil filler pipe and worn a hole in it, you can get that oil pipe off without removing anything, drain oil first

MagicWagon
Posts: 229
Joined: 17 Jan 2016, 19:38
80-90 Mem No: 0

Re: Oil Leak (Was small, now isn't)

Post by MagicWagon »

Oh dear. Engine mounts sounds like an engine out job, or can it be done in situ ? Thanks.
1983 2.0L Air Cooled Devon Moonraker

davidoft1
Posts: 1103
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: Oil Leak (Was small, now isn't)

Post by davidoft1 »

Can leave the engine and in but exhaust, fan housing , engine bar have to come off

MagicWagon
Posts: 229
Joined: 17 Jan 2016, 19:38
80-90 Mem No: 0

Re: Oil Leak (Was small, now isn't)

Post by MagicWagon »

Ok. Thanks for all your help. Sounds like first job for the new year sorted.
Cheers.
