Re: Alternative instruments and switchgear
Finding an SD1 2000 tacho may be a touch too far... I do have a universal Sun 5" monster tacho/shift light that came out of another bus, in the back are a set of dip switches to set it for 1-12 cylinders, so maybe I can pop the casing and steal the curcuit board from it?
Not really my field tbh...
Not really my field tbh...
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
- marlinowner
- Registered user
- Posts: 1530
- Joined: 28 Jan 2014, 12:02
- 80-90 Mem No: 13646
- Location: Scottish Borders
Re: Alternative instruments and switchgear

E D I T: http://www.bakerelectronix.com/products_tsd/" onclick="window.open(this.href);return false;
1993 SA VW T25/T3 2.5i Microbus/homebrew camper
1981/1968 Marlin Kitcar TR6 Engine
1981/1968 Marlin Kitcar TR6 Engine
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
That's what I think is in the big tacho. It owes me nothing so must be worth a go.
The speedo is another matter. I can't see a number on the face for the turns/mile so that will be a paperclip and count to 1000 job... then find a convertor for that (or send it to Speedy Cables for a recalibrate.
The speedo is another matter. I can't see a number on the face for the turns/mile so that will be a paperclip and count to 1000 job... then find a convertor for that (or send it to Speedy Cables for a recalibrate.
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
I have developed an obsession for cheap Rover dash pods! Bought a complete Series 2 SD1 set for peanuts off the bay, giving me a 140mph speedo*, tacho, oil/fuel/temp gauges, led clock and a full set of switches
I read that SC Parts/Limora now remake the Girling remote dual circuit servo, as used on Rover P6 and Jag E-type etc. This is the key to this kind of project afaics.
Its the only one available to my knowledge, but over £300...
*for the superboxer

I read that SC Parts/Limora now remake the Girling remote dual circuit servo, as used on Rover P6 and Jag E-type etc. This is the key to this kind of project afaics.
Its the only one available to my knowledge, but over £300...
*for the superboxer
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
Too much?
http://s1103.photobucket.com/user/IanHo ... v.jpg.html" onclick="window.open(this.href);return false;
http://s1103.photobucket.com/user/IanHo ... v.jpg.html" onclick="window.open(this.href);return false;
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
-
- Registered user
- Posts: 2559
- Joined: 16 Aug 2012, 13:05
- 80-90 Mem No: 12017
- Location: Sidcup, Kent
Re: Alternative instruments and switchgear
I think it looks smart Ian and those Rover lines will suit the bus well

'86 DG, Weber Carb
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
It lines up perfectly, warning lamps smack in the middle and it sits in the pod cutout of the GL dash edging too!
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
-
- Registered user
- Posts: 2559
- Joined: 16 Aug 2012, 13:05
- 80-90 Mem No: 12017
- Location: Sidcup, Kent
Re: Alternative instruments and switchgear
silverbullet wrote:It lines up perfectly, warning lamps smack in the middle and it sits in the pod cutout of the GL dash edging too!
Made to measure then mate

'86 DG, Weber Carb
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
Can't question it. The NOS spares are dirt cheap and plentiful too. Switches are only around 15 quid!
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
Re: Alternative instruments and switchgear
The BMW 2002 uses a remote dual servo brake set up. Front discs, rear drums. Plenty of owners have swapped to discs at the rear with no problems.
The ATE servos are very pricey to refurbish, but this is a cheaper alternative:
http://www.carbuildersolutions.com/uk/c ... rake-servo" onclick="window.open(this.href);return false;
Cheers
Jim
The ATE servos are very pricey to refurbish, but this is a cheaper alternative:
http://www.carbuildersolutions.com/uk/c ... rake-servo" onclick="window.open(this.href);return false;
Cheers
Jim
1990 T25 camper, 2.1 DJ
-
- Registered user
- Posts: 2559
- Joined: 16 Aug 2012, 13:05
- 80-90 Mem No: 12017
- Location: Sidcup, Kent
Re: Alternative instruments and switchgear
Would it take a lot of fettling with regards to wiring, speedo drive etc? Interested to see how you get on as wouldn't mind one of those in mine.
'86 DG, Weber Carb
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
I am about to offer it up to the bus and see how the land lies.
The post-82 SD1 had electric speedos, 77-81 had mechanical but the instrument pack is completely different, very late 70's.
Not a problem for my application as I am going to use the speed transducer on the Renault UN1 transaxle, but there is no reason why a similar trigger wheel/reluctor system couldnt be rigged up on one CV flange.
Syncroandy is the man for mechanical-to-electric speedo conversion in a T3.
The rest would be down to using the correct senders or adding some resistors to tweak the gauge readings, at a guess.
The post-82 SD1 had electric speedos, 77-81 had mechanical but the instrument pack is completely different, very late 70's.
Not a problem for my application as I am going to use the speed transducer on the Renault UN1 transaxle, but there is no reason why a similar trigger wheel/reluctor system couldnt be rigged up on one CV flange.
Syncroandy is the man for mechanical-to-electric speedo conversion in a T3.
The rest would be down to using the correct senders or adding some resistors to tweak the gauge readings, at a guess.
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
At the correct angle to view, but a little high. There are a couple of steel brackets to remove on the underside which will improve matters:
http://i1103.photobucket.com/albums/g47 ... yg5t5w.jpg" onclick="window.open(this.href);return false;
Clears the reservoir ok, the tinware could be notched if need be:
http://i1103.photobucket.com/albums/g47 ... uhtxez.jpg" onclick="window.open(this.href);return false;
The 83.5-85 Rangie pod sits quite well too, after a little bracket mod around the back, but it needs dropping down for someone of my height!
Ok for the vertically challenged:

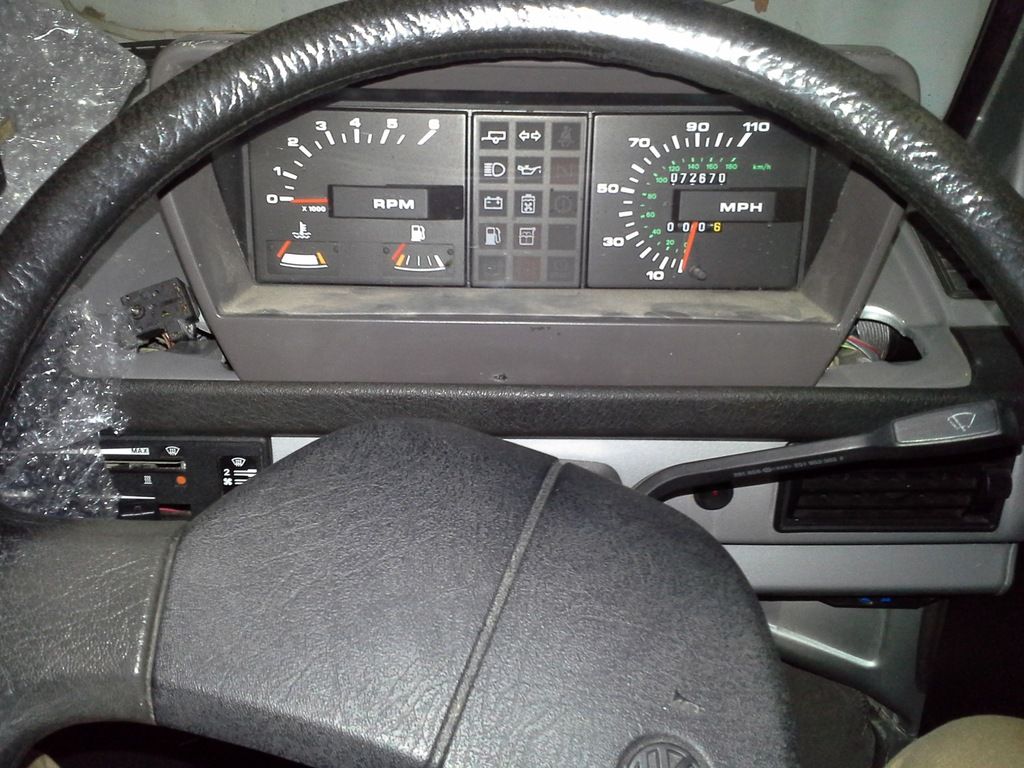

http://i1103.photobucket.com/albums/g47 ... saiayq.jpg" onclick="window.open(this.href);return false;
No good for a 6-footer's eye-line:
http://i1103.photobucket.com/albums/g47 ... mpvmbr.jpg" onclick="window.open(this.href);return false;
Reservoir clearance, after I pinged the top of the brake fluid float switch off
http://i1103.photobucket.com/albums/g47 ... s0rrpa.jpg" onclick="window.open(this.href);return false;
http://i1103.photobucket.com/albums/g47 ... yg5t5w.jpg" onclick="window.open(this.href);return false;
Clears the reservoir ok, the tinware could be notched if need be:
http://i1103.photobucket.com/albums/g47 ... uhtxez.jpg" onclick="window.open(this.href);return false;
The 83.5-85 Rangie pod sits quite well too, after a little bracket mod around the back, but it needs dropping down for someone of my height!
Ok for the vertically challenged:
http://i1103.photobucket.com/albums/g47 ... saiayq.jpg" onclick="window.open(this.href);return false;
No good for a 6-footer's eye-line:
http://i1103.photobucket.com/albums/g47 ... mpvmbr.jpg" onclick="window.open(this.href);return false;
Reservoir clearance, after I pinged the top of the brake fluid float switch off

http://i1103.photobucket.com/albums/g47 ... s0rrpa.jpg" onclick="window.open(this.href);return false;
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
Re: Alternative instruments and switchgear
Hi Silver Bullet.
I was looking at one of your pics in this thread, and it started me thinking... ( Never a good thing
)
I notice you had an oil pressure gauge on the Rover dash, and I started wondering how this would be wired in.
I think I have two oil sensors - one for low pressure and one for high.
So if your van is the same, how would you wire in an oil pressure gauge?
I imagine the pressure switches to be open circuit until a certain pressure level is reached, at which time they would then close and complete a circuit to earth - making the oil light come on?
I may have that totally wrong. I have no experience in working with them, it is just how I imagine they would work.
Is my thinking correct, and if so, would you simply change one switch for a type that actually changes resistance across a range of pressures to make the gauge work?
If I am way off just say. This is a question and an attempt to learn a bit about the operation of the oil indication circuit in my van, rather than actually having an oil gauge fitted, but I thought this would be an appropriate place ( and person ) to ask.
I was looking at one of your pics in this thread, and it started me thinking... ( Never a good thing

I notice you had an oil pressure gauge on the Rover dash, and I started wondering how this would be wired in.
I think I have two oil sensors - one for low pressure and one for high.
So if your van is the same, how would you wire in an oil pressure gauge?
I imagine the pressure switches to be open circuit until a certain pressure level is reached, at which time they would then close and complete a circuit to earth - making the oil light come on?
I may have that totally wrong. I have no experience in working with them, it is just how I imagine they would work.
Is my thinking correct, and if so, would you simply change one switch for a type that actually changes resistance across a range of pressures to make the gauge work?
If I am way off just say. This is a question and an attempt to learn a bit about the operation of the oil indication circuit in my van, rather than actually having an oil gauge fitted, but I thought this would be an appropriate place ( and person ) to ask.
'89 1.9 DG
“Some people die at 25 years old, and are buried at 75 yrs old” ~ Benjamin Franklin.
“Some people die at 25 years old, and are buried at 75 yrs old” ~ Benjamin Franklin.
-
- Trader
- Posts: 17227
- Joined: 08 Jun 2009, 09:51
- 80-90 Mem No: 6908
- Location: Surrey Syncronaut #156
- Contact:
Re: Alternative instruments and switchgear
Changing the dash means that the VW buzzer/DOPWS will go, so just one switch for the low pressure warning lamp (I will use the highest I can find, 1 bar at least) the other tapping on the engine will have the pressure sender for the gauge.
Last edited by silverbullet on 26 Mar 2016, 16:00, edited 1 time in total.
1985 Oettinger 3.2 Caravelle RHD syncro twin slider. SA Microbus bumpers, duplex winch system, ARC 7X15 period alloys
