Is there any way of adjusting the brake light switch, so that the lights come on with a lighter press of the pedal?
I've recently fitted some new LED bulbs and I had a problem with the driver's side brake light not working. I think I've sorted it now (corroded connection) but trying to test it is impossible on my own! My usual trick is to sit something heavy like a toolbox on the pedal to activate the light, but my toolbox just isn't heavy enough! The pedal needs a really good shove to get the lights to come on.
I would prefer my brake lights to come on before I'm pressing the pedal all the way down, so is there any way to adjust the switch so it comes on under less pressure?
Brake light sensitivity
Moderators: User administrators, Moderators
-
Big Bad Baz
- Registered user
- Posts: 48
- Joined: 20 Jun 2014, 23:40
- 80-90 Mem No: 13618
- Location: Brixworth, Northants.
Brake light sensitivity
...and the mirrors automatically fold in at 65mph to improve aerodynamics.
-
bigherb
- Registered user
- Posts: 2581
- Joined: 27 Mar 2008, 13:50
- 80-90 Mem No: 5789
- Location: West Kent
Re: Brake light sensitivity
No it is hydraulic pressure operated but as the switch wears the pressure increases it probably just needs a new switch.
1982 Camper 1970 1500 Beetle Various Skoda's, Ariel Arrow
-
Big Bad Baz
- Registered user
- Posts: 48
- Joined: 20 Jun 2014, 23:40
- 80-90 Mem No: 13618
- Location: Brixworth, Northants.
Re: Brake light sensitivity
Ah, right. I'll have to look into that then, thanks.
...and the mirrors automatically fold in at 65mph to improve aerodynamics.
-
CovKid
- Trader
- Posts: 8411
- Joined: 30 Apr 2006, 13:19
- 80-90 Mem No: 3529
- Location: Ralph - Coventry (Retired)
- Contact:
Re: Brake light sensitivity
I dunno. Hakuna Matata has this issue and replacing the switches didn't cure it. I think he ended up fitting a microswitch next to the pedal.
Roller paint your camper at home: http://roller.epizy.com/55554/" onclick="window.open(this.href);return false; for MP4 download.
-
Big Bad Baz
- Registered user
- Posts: 48
- Joined: 20 Jun 2014, 23:40
- 80-90 Mem No: 13618
- Location: Brixworth, Northants.
Re: Brake light sensitivity
OK, silly question time; how do I get to the switch?
...and the mirrors automatically fold in at 65mph to improve aerodynamics.
-
California Dreamin
- Registered user
- Posts: 2673
- Joined: 03 Apr 2007, 12:54
- 80-90 Mem No: 8386
- Location: Nottingham
Re: Brake light sensitivity
CovKid wrote:I dunno. Hakuna Matata has this issue and replacing the switches didn't cure it. I think he ended up fitting a microswitch next to the pedal.
As the brake light operation is 'solely' controlled by these switches the sensitivity or otherwise can only be down to their operation.
I am going to suggest that 'cheap' switches may have been the issue here.
Switches...as you will discover, are situated underneath the speedo binnacle (pull the plastic surround upwards at the rear, next to windscreen)
Martin
1989 California 2.1MV
-
Big Bad Baz
- Registered user
- Posts: 48
- Joined: 20 Jun 2014, 23:40
- 80-90 Mem No: 13618
- Location: Brixworth, Northants.
Re: Brake light sensitivity
California Dreamin wrote:CovKid wrote:Switches...as you will discover, are situated underneath the speedo binnacle (pull the plastic surround upwards at the rear, next to windscreen)
Martin
Ah, thanks. I am familiar with things under the binnacle - I found a brake fluid reservoir there, of all places!
...and the mirrors automatically fold in at 65mph to improve aerodynamics.
-
bigherb
- Registered user
- Posts: 2581
- Joined: 27 Mar 2008, 13:50
- 80-90 Mem No: 5789
- Location: West Kent
Re: Brake light sensitivity

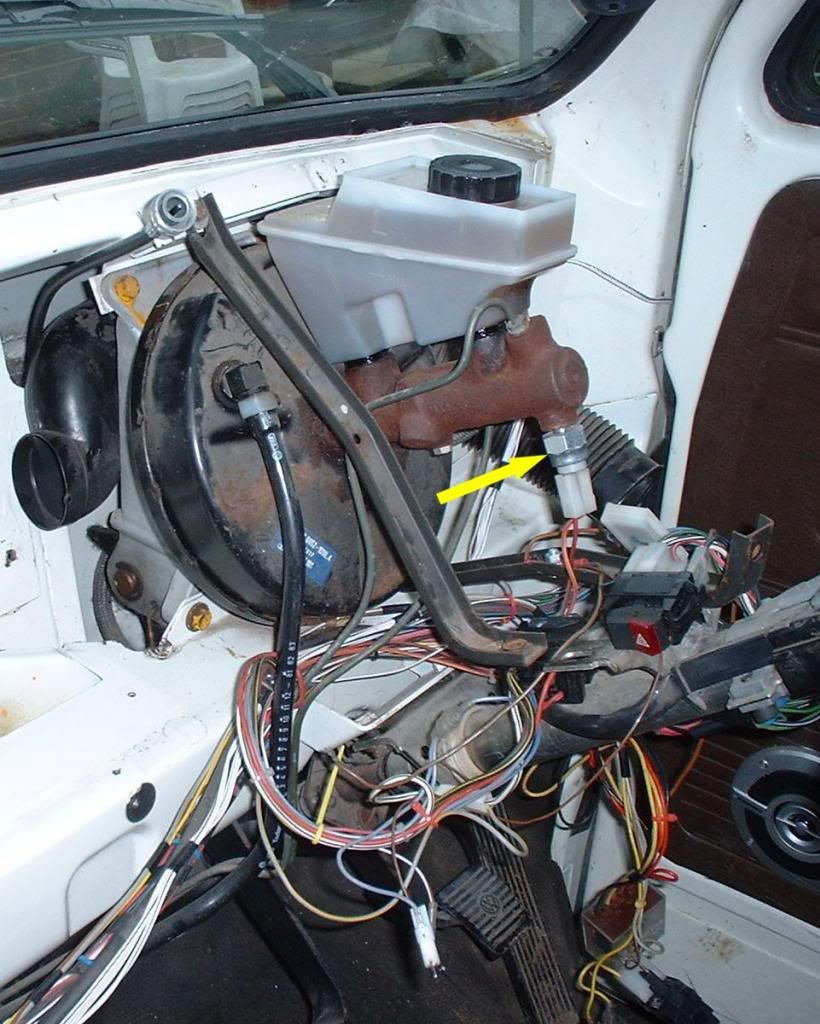

You'll have one or two brake light switches screwed into the master cylinder.
1982 Camper 1970 1500 Beetle Various Skoda's, Ariel Arrow
