The silver "can", centre left. It has two terminals on top, and only one wire
The wire coming from a sender top right of picnad going nowhere (kind of grey coloured coiled wire, with plastic end)
Next question, what are these parts?
Moderators: User administrators, Moderators
-
davidharvey
- Registered user
- Posts: 67
- Joined: 26 Sep 2010, 16:17
- 80-90 Mem No: 8913
- Location: West coast of Scotland
Next question, what are these parts?

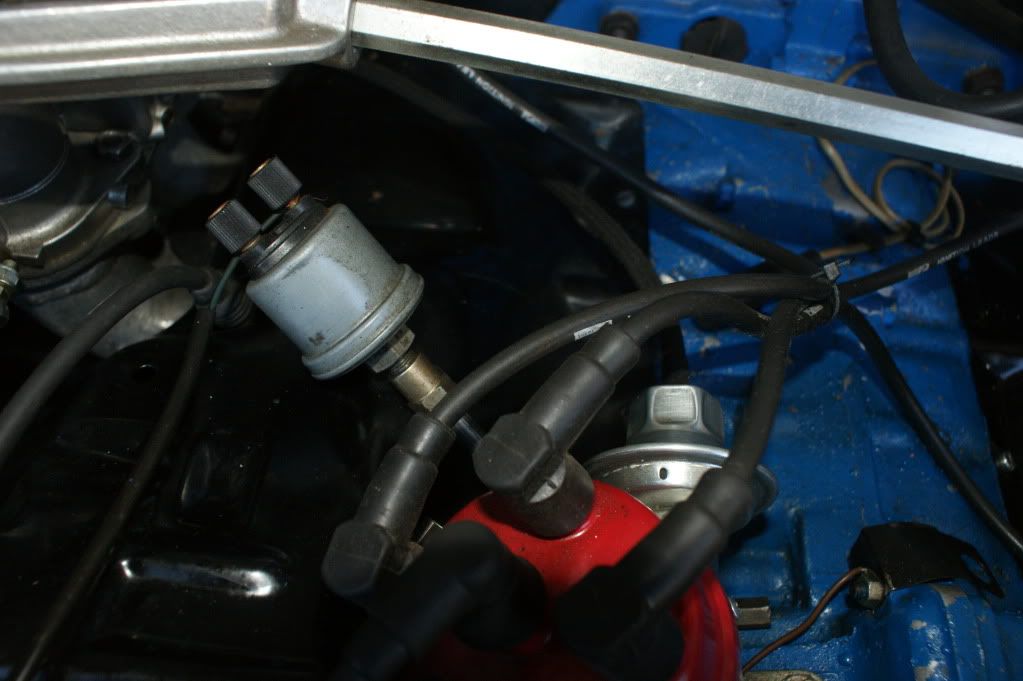

The silver "can", centre left. It has two terminals on top, and only one wire
The wire coming from a sender top right of picnad going nowhere (kind of grey coloured coiled wire, with plastic end)
-
dave friday
- Registered user
- Posts: 804
- Joined: 15 Oct 2006, 11:19
- 80-90 Mem No: 5533
- Location: rambler de oria, near albox,almeria,spain
Re: Next question, what are these parts?
oil pressure sender[have you got an oil pressure gauge?].
I have one of those on my van.
I have one of those on my van.
I dont think, so I'm not[do I exist?]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
-
davidharvey
- Registered user
- Posts: 67
- Joined: 26 Sep 2010, 16:17
- 80-90 Mem No: 8913
- Location: West coast of Scotland
Re: Next question, what are these parts?
dave friday wrote:oil pressure sender[have you got an oil pressure gauge?].
I have one of those on my van.
I have a gauge, but its brand new and not connected. Which is the sender, the can or the connector on the block at top right. I now suspect the other one (whichever that is) is for the brand new oil temp gauge
-
dave friday
- Registered user
- Posts: 804
- Joined: 15 Oct 2006, 11:19
- 80-90 Mem No: 5533
- Location: rambler de oria, near albox,almeria,spain
Re: Next question, what are these parts?
The sender at the top right is possibly for timing[and fuel injection if the engine has it].
The can with two finger tightened terminals is the sender for the oil warning light and the oil pressure gauge.
one terminal is marked G and the other one is marked W [from memorie ,i might be wrong!].
The can with two finger tightened terminals is the sender for the oil warning light and the oil pressure gauge.
one terminal is marked G and the other one is marked W [from memorie ,i might be wrong!].
I dont think, so I'm not[do I exist?]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
-
dave friday
- Registered user
- Posts: 804
- Joined: 15 Oct 2006, 11:19
- 80-90 Mem No: 5533
- Location: rambler de oria, near albox,almeria,spain
Re: Next question, what are these parts?
oops,i think i can see twin carbs!!
I dont think, so I'm not[do I exist?]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
1992 1600td [ jx ] syncro panel van[leisuredrive camper ]
-
Ian Hulley
- Registered user
- Posts: 12661
- Joined: 11 Oct 2005, 08:08
- 80-90 Mem No: 1323
- Location: Wirksworth, Derbyshire ... or at t'mill
Re: Next question, what are these parts?
Can definately see upper tinware so it's an Aircooled.
Ian
Ian
The Hulley's Bus
1989 2.1DJ Trampspotter
LPG courtesy of Steve @ Gasure
1989 2.1DJ Trampspotter
LPG courtesy of Steve @ Gasure
-
davidharvey
- Registered user
- Posts: 67
- Joined: 26 Sep 2010, 16:17
- 80-90 Mem No: 8913
- Location: West coast of Scotland
Re: Next question, what are these parts?
Ian Hulley wrote:Can definately see upper tinware so it's an Aircooled.
Ian
yes, sorry guys its a 1982 2.0 Aircooled
-
davidharvey
- Registered user
- Posts: 67
- Joined: 26 Sep 2010, 16:17
- 80-90 Mem No: 8913
- Location: West coast of Scotland
Re: Next question, what are these parts?
Have found a sender on the bottom of the sump.............would think this is the oil temperature?
