Re: syncro resto to conversion

Post by davidoft1 »

fitting bfgoodrich hoses, original brake lines are perfect so thought easy ten minute job :)

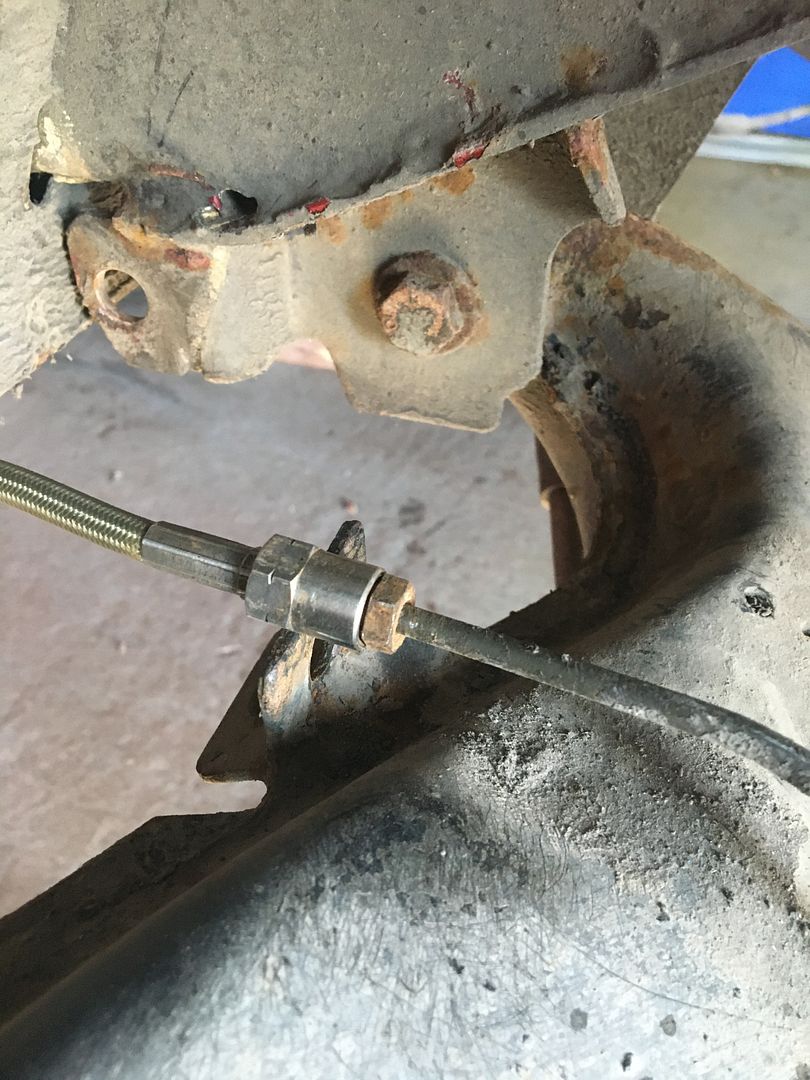

seems the fittings are to short so run out of thread before sealing :(

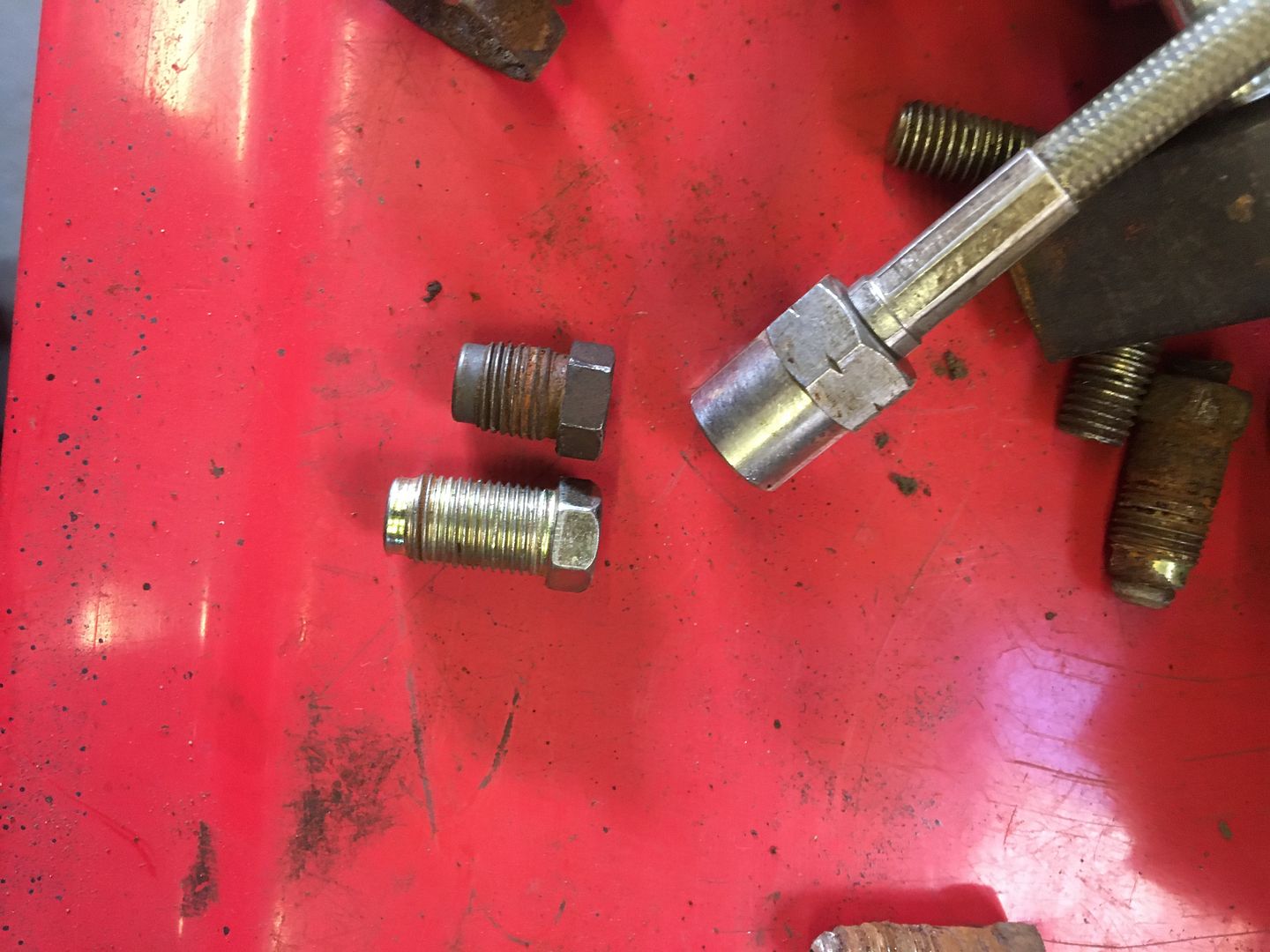

new longer fitting for comparison, luckily I had some new spares :D

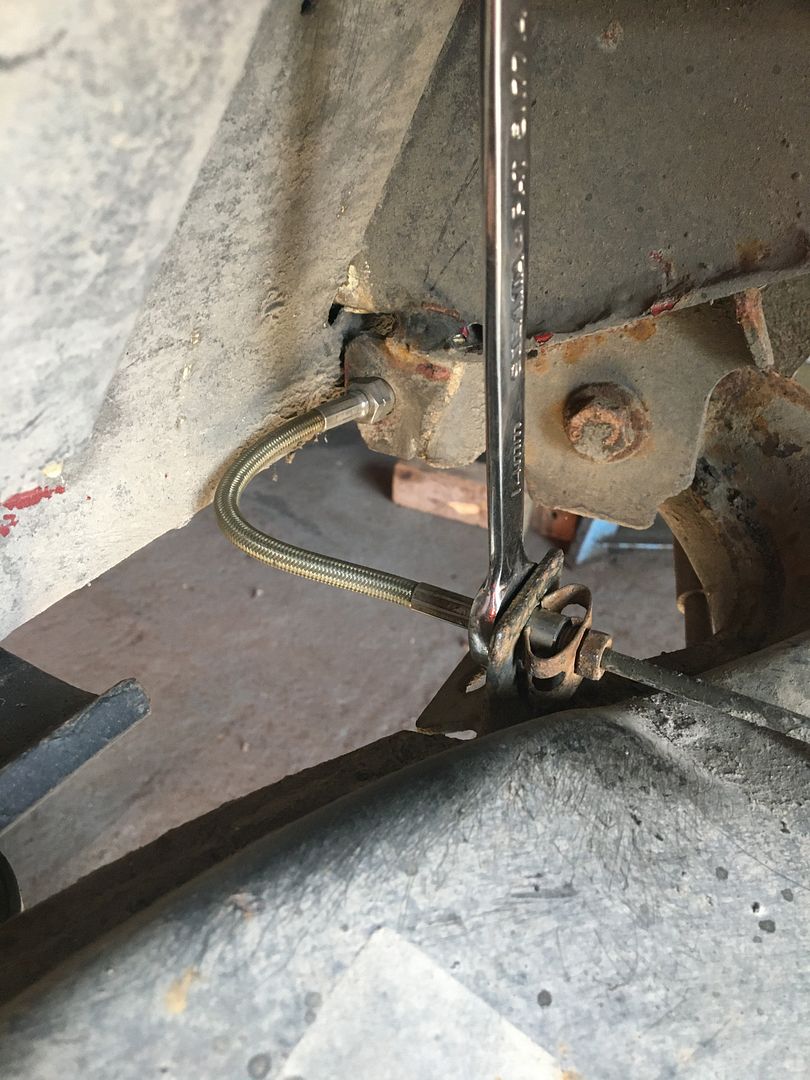

that's better



as I had to re- flare the pipe which would have left it to short I though I may as well make new 8)

User avatar
silverbullet
Trader
Posts: 12955
Joined: 08 Jun 2009, 09:51
80-90 Mem No: 6908
Location: Surrey Syncronaut #156
Contact:

Re: syncro resto to conversion

Post by silverbullet »

A rear disc conversion kit with full-length Aeroquip flexis would fix that ;)

Sent from my S60 using Tapatalk
85 syncro Caravelle twin slider Oettinger T3200E-6
90 SA Microbus supercharged wbx/UN1 project

http://www.025motorsport.com

User avatar
Cobra88
Posts: 727
Joined: 03 Apr 2018, 18:24
80-90 Mem No: 16481
Location: Ipswich

Re: syncro resto to conversion

Post by Cobra88 »

Im just in the process of ordering a fitting kit from Ian :)
____________________________________________
84 CaravelleGL 1.9 DG WBX Bronze Beige Metallic auto

User avatar
irishkeet
Trader
Posts: 2613
Joined: 30 Nov 2005, 13:26
80-90 Mem No: 2322
Location: Cotton | Suffolk

Re: syncro resto to conversion

Post by irishkeet »

looking great David :ok

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

silverbullet wrote:A rear disc conversion kit with full-length Aeroquip flexis would fix that ;)

Sent from my S60 using Tapatalk

its to slow for that ;)

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

irishkeet wrote:looking great David :ok


thanks :D

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

as I had to run new brake lines to the front as the original was rotten but also syncro is slightly different at the rear and to the front caliper hoses , I decided I may as well go the whole hog and replace them all :o


back end finished



new front caliper hard line, new holes drilled for hose bracket



front brake lines going in along with clutch line


rivnutting for caliper brackets, original is big self tapping screws but I have a riv nut gun fitttings and m6 bolts to hand



davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

stripping out the wiring for the automatic inhibitor switch,


shortened the starter wiring by around 3 feet :D


soldered taped up and waterproof


davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

so I think that most of the additional stuff done along with the fabrication side done, I wanted to do a satisfying bit 8)


diff lock vaccum loom



diff lock electrical loom


unravelled and checked for damaged pipe, terminal etc, luckily its all good :D

Last edited by davidoft1 on 01 May 2020, 01:32, edited 1 time in total.

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

I need to install the non return the inlet out let and vacuum accumulator


this unequal T need to be in the brake vacuum hose


cutting through the original main brake vacuum hose to insert the T


A bit of boiling water to soften up the vacuum hose


T Piece successfully installed without snapping the small pipe off :lol:


needed to drill this out slightly to get the grommet and pipe through


non return, accumulator and vacuum lines installed :D


davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

difflock electrics going in, the difflock loom tucks nicely through the main loom grommet and follows the main loom to the back of the van








davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

original zinc plating still intact, the gear rod protection does its job :)


interesting find, im assuming someone added this to prevent the gear rod filling with water



stripping gear rods for inspection, cleaning etc



checking it fits in the cross member I modified


lick of paint to protect them



this old servo boot off a bay window servo fits the gear rod and front tube perfectly 8)




all bits fitting together



all bolted in place


front gear rod bolted to the gearstick


davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

stone chipping the fuel tank cavity and repairs I carried out


safety first :D, this stuff is nasty


all a bit wet but will look perfect once dried




davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

bit of interesting fuel tank strap detail, so it seems they have bushes to allow the straps to move a little when bolted up, mine were missing so had to make a couple out of a bit of bell housing dowel I had laying about, perfect fit though :D









and fitted


davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

time to fit the fuel tank

new fuel lines breathers etc



due to being unable to summon a human assistant I used the jack and a block of wood to tease the tank in, a bit tricky but not to bad



filler pipe etc next
