Re: syncro resto to conversion

Post by silverbullet »

Rear damper top mounts. Petrol different to diesel iirc. Not sure if its documented in the wiki but if not, it should be!

Sent from my S60 using Tapatalk
85 syncro Caravelle twin slider Oettinger T3200E-6
90 SA Microbus supercharged wbx/UN1 project

http://www.025motorsport.com

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

Aidan wrote:be aware the larger breather original semi hard grommet for the hole you've cut won't take the VW supplied new hose as the hose is now slightly bigger


thanks, ill test fit first :)

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

silverbullet wrote:Rear damper top mounts. Petrol different to diesel iirc. Not sure if its documented in the wiki but if not, it should be!

Sent from my S60 using Tapatalk


any idea what the difference is? I looked but I couldn't see anything obvious, though the mounts were rotten through on the syncro donor

User avatar
silverbullet
Trader
Posts: 12955
Joined: 08 Jun 2009, 09:51
80-90 Mem No: 6908
Location: Surrey Syncronaut #156
Contact:

Re: syncro resto to conversion

Post by silverbullet »

Aidan mentioned it to me iirc

Its a subtle difference but a genuine diesel shell will have different top brackets, tape measure comparison will reveal it

Sent from my S60 using Tapatalk
85 syncro Caravelle twin slider Oettinger T3200E-6
90 SA Microbus supercharged wbx/UN1 project

http://www.025motorsport.com

Syncrobaz
Posts: 796
Joined: 19 Jul 2010, 21:12
80-90 Mem No: 10610
Location: Wiltshire

Re: syncro resto to conversion

Post by Syncrobaz »

In old money from centre of bolt to inside arch, diesel 9.25" to rear, 3.25" to top - petrol 8.75" and 2.50". Guess this is because the diesel has a spacer under the spring to compensate for heavier engine ??
Syncronaut no 152
92 RHD mv panel van
94 RHD jx doka 16"

User avatar
silverbullet
Trader
Posts: 12955
Joined: 08 Jun 2009, 09:51
80-90 Mem No: 6908
Location: Surrey Syncronaut #156
Contact:

Re: syncro resto to conversion

Post by silverbullet »

Nice one Baz.

Moving the damper top mount is a means to alter the effective damping rate, relative to the spring rate, with the same spec damper and spring.

As I see it:

With the T3 swingarm suspension, the more that the damper is "laid back" (not parallel to the nominal spring axis anyway) the less it has a rising rate and has more of a falling rate.

Because the monoblock springs are inherently rising rate anyway, the dampers are arranged like this to make them deliver the required ride characteristics i.e. a more compliant ride when lightly loaded.

The difference between the inline (diesel) and wbx engine weight isnt as much as you'd think, but the longer inline lump has greater leverage and so requires the altered mounting point to achieve the same ride quality.

Probably ;)

Sent from my S60 using Tapatalk
85 syncro Caravelle twin slider Oettinger T3200E-6
90 SA Microbus supercharged wbx/UN1 project

http://www.025motorsport.com

Syncrobaz
Posts: 796
Joined: 19 Jul 2010, 21:12
80-90 Mem No: 10610
Location: Wiltshire

Re: syncro resto to conversion

Post by Syncrobaz »

I wonder if wbx to tdi conversions include changing the mount ?
Syncronaut no 152
92 RHD mv panel van
94 RHD jx doka 16"

User avatar
silverbullet
Trader
Posts: 12955
Joined: 08 Jun 2009, 09:51
80-90 Mem No: 6908
Location: Surrey Syncronaut #156
Contact:

Re: syncro resto to conversion

Post by silverbullet »

I bet almost nobody knows/cares/bothers

Sent from my S60 using Tapatalk
85 syncro Caravelle twin slider Oettinger T3200E-6
90 SA Microbus supercharged wbx/UN1 project

http://www.025motorsport.com

4x4 Bus
Posts: 149
Joined: 05 Dec 2015, 22:04
80-90 Mem No: 0

Re: syncro resto to conversion

Post by 4x4 Bus »

I very much dought anyone will change this on a conversion. To change it you will also have to open up tinware inside the engine bay as part of this mount is behind inner sheet steel. Most syncros are not using standard springs or shocks now aswell.

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

I think I shall fall into the not gonna do it category :D

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

Easier to pull the engine mounts off like this :)

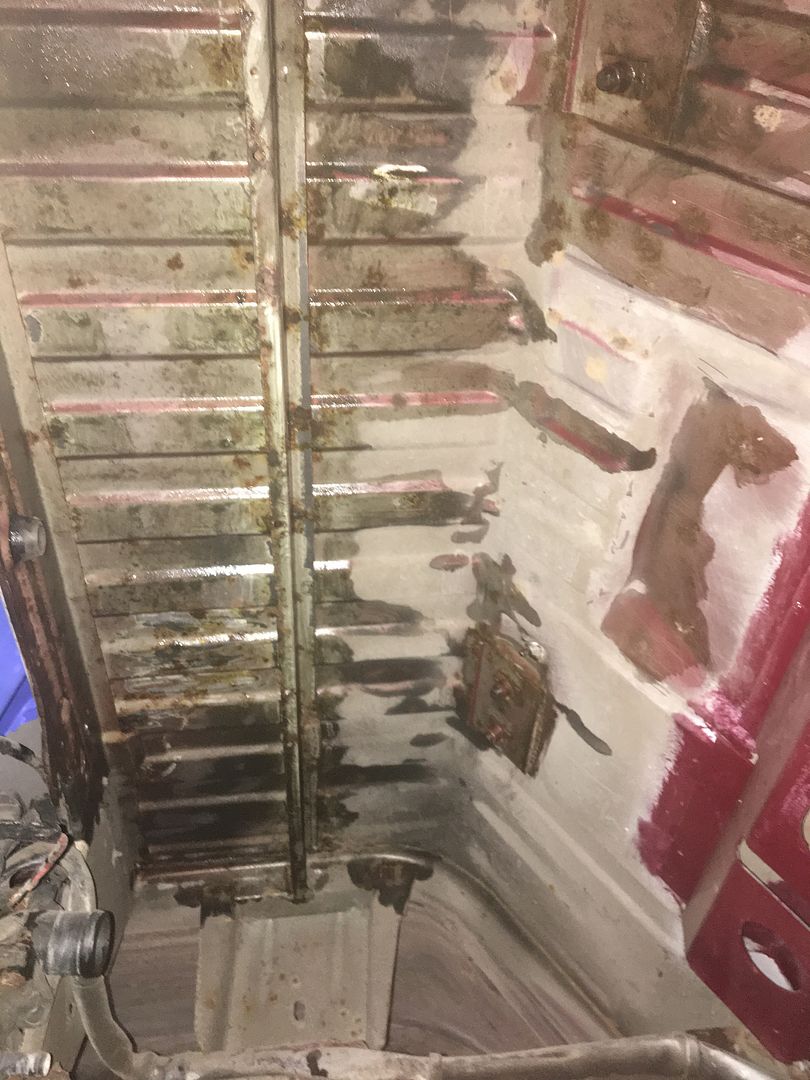

Bit of de- rusting before tank fitment

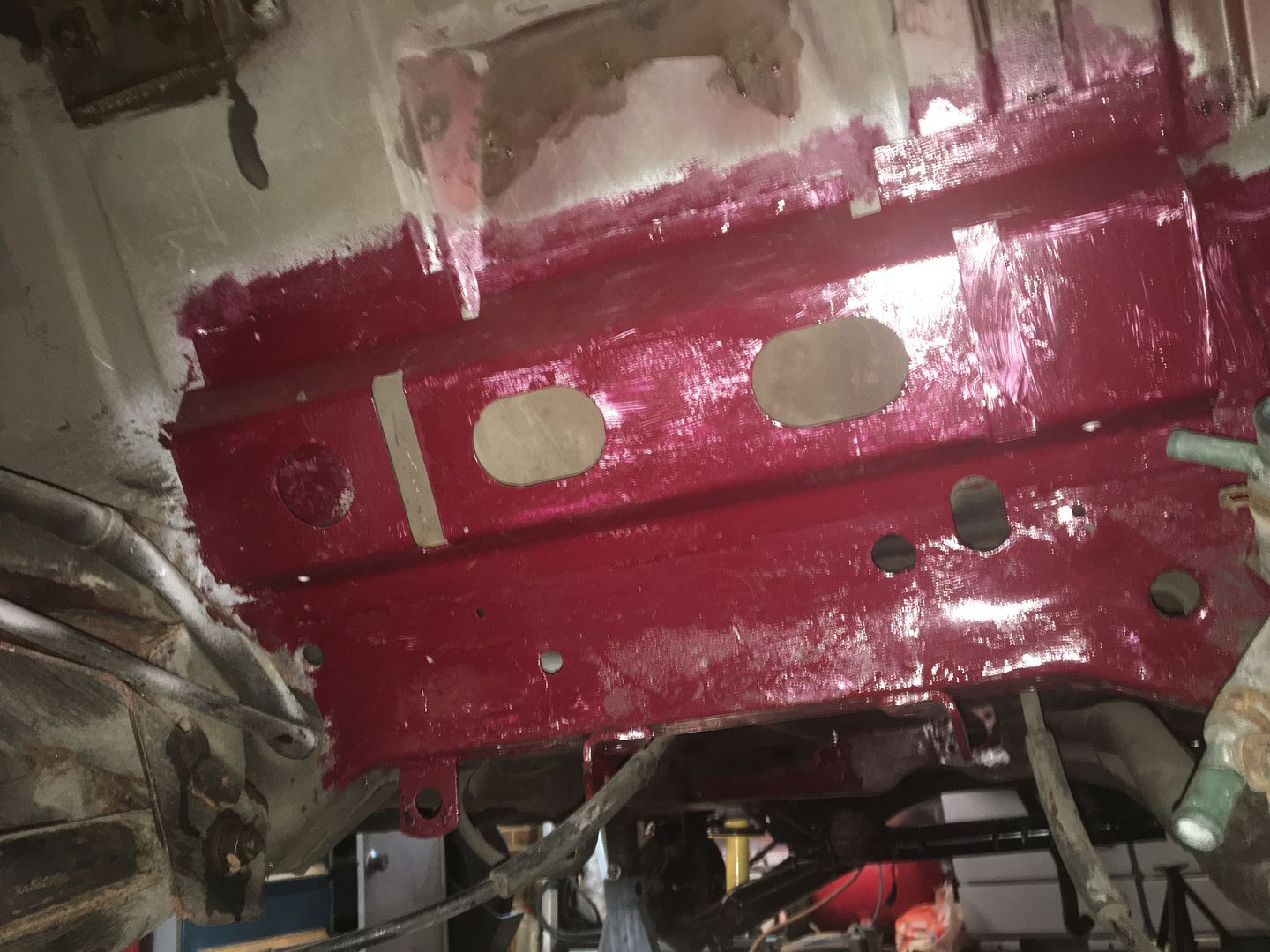

First coat of paint of fuel tank bracket etc


Sealed up ready for stone chip

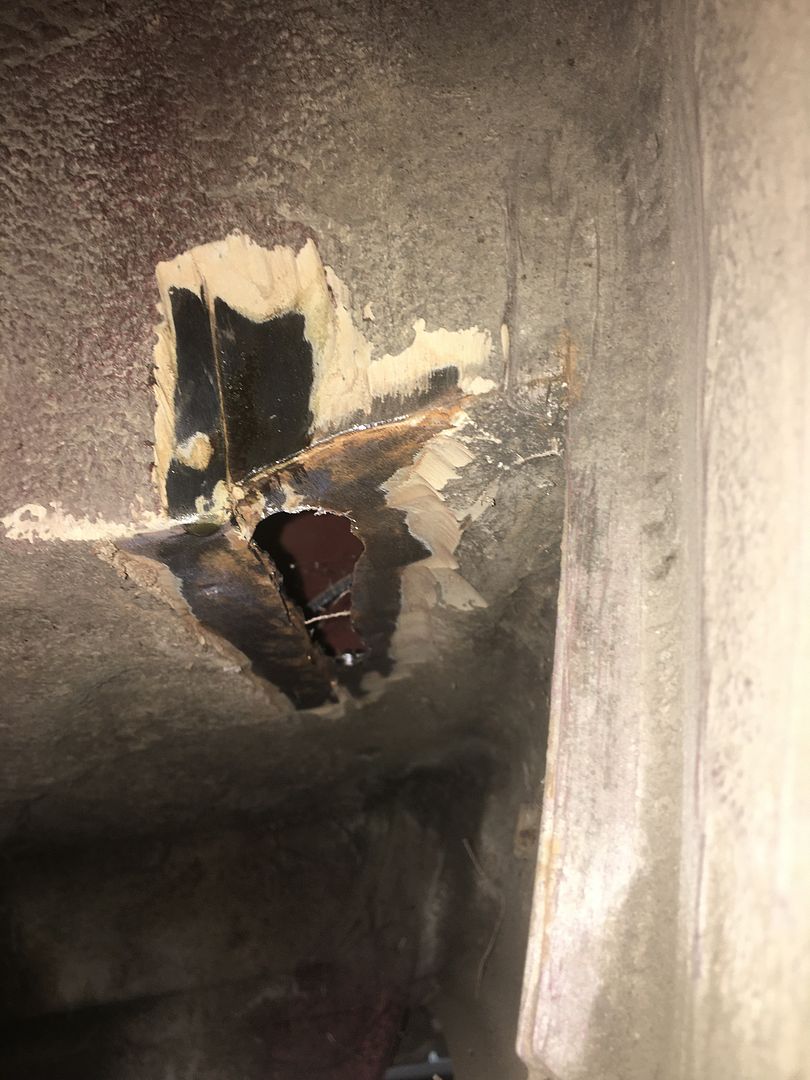

Small hole to address on the other corner , easy fix though

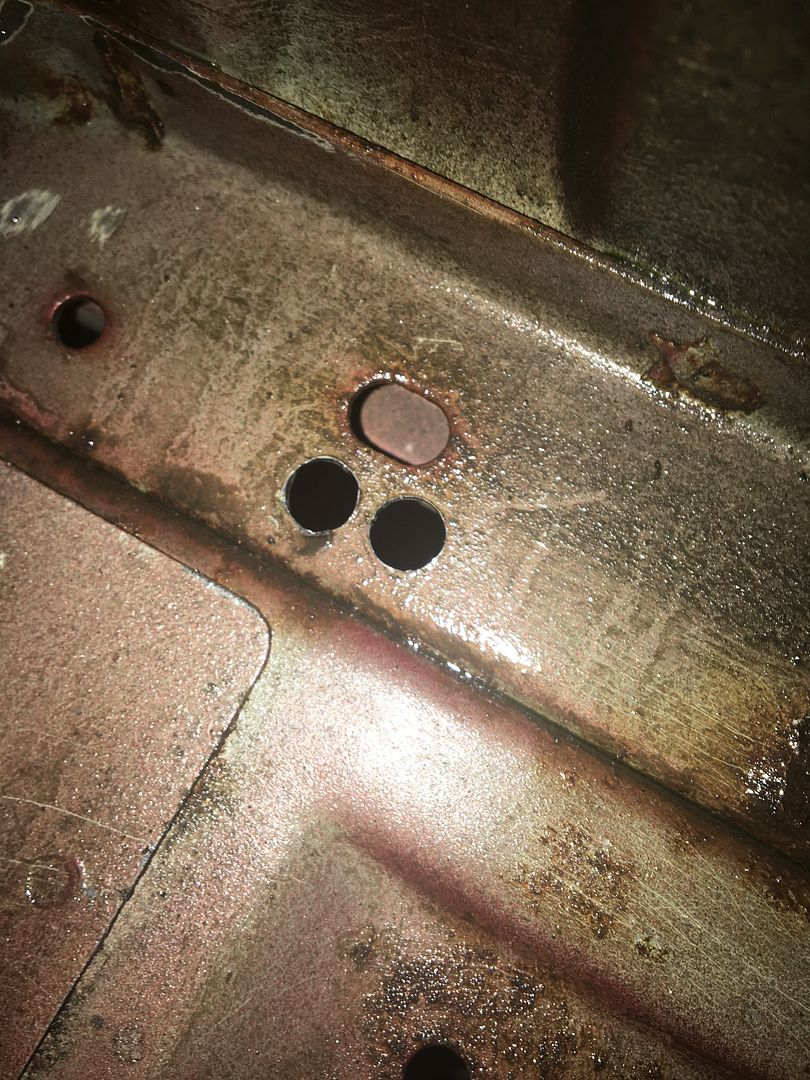

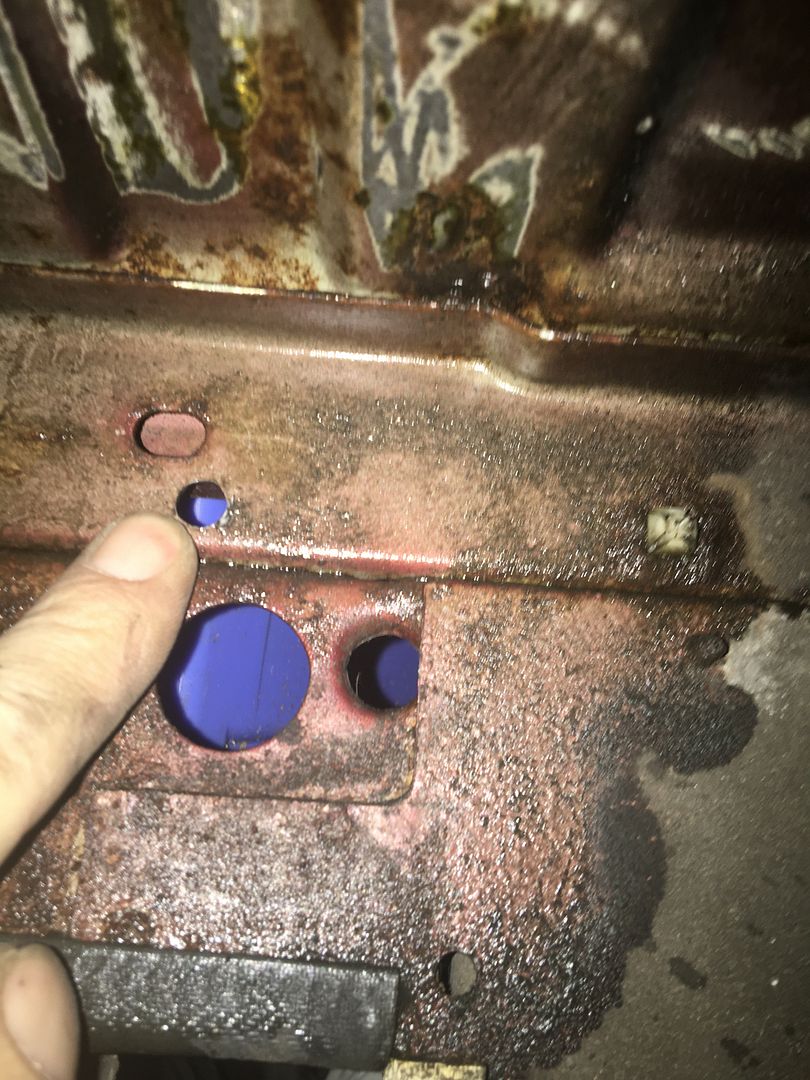

Fuel tank strap mounts , I drilled the holes from the engine side but the oval holes seem to be correct :o



User avatar
AIR_CHILLED
Posts: 131
Joined: 25 Jul 2013, 11:31
80-90 Mem No: 15708
Location: Gloucestershire Syncronaut: 286

Re: syncro resto to conversion

Post by AIR_CHILLED »

Nice work as always Dave!
I didn’t know about the bump stops being longer, missed that detail on my Syncro conversion.
Good job with the centre cross member panel, that is the same way I did mine as I didn’t want to disturb the Westy interior.
1988 Vanagon GL Westfalia Syncro (2wd to 4wd conversion)

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

AIR_CHILLED wrote:Nice work as always Dave!
I didn’t know about the bump stops being longer, missed that detail on my Syncro conversion.
Good job with the centre cross member panel, that is the same way I did mine as I didn’t want to disturb the Westy interior.

Thanks :) , the extra time I now have is making me more particular than I would be under normal circumstances

davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

diesel battery tray coming out :)



going in


they are held in by stitch welds, seems overkill but I like welding downhill in corners 8)




rear engine mounts going in


davidoft1
Posts: 982
Joined: 27 May 2009, 18:56
80-90 Mem No: 16628
Location: hayling island

Re: syncro resto to conversion

Post by davidoft1 »

bit of paint to make it pretty
