Various locks and keys question

Thin bits of metal and bright blue light. Including glass & trim.

Moderators: User administrators, Moderators

User avatar
156silver
Posts: 27
Joined: 14 Mar 2009, 22:36
80-90 Mem No: 6673
Location: Worthing :-) West Sussex

Re: Sliding door lock key question.

Post by 156silver »

Good Morning All,
I have new wafers & springs and can rebuild locks to match existing keys.
If you need my help please feel free to PM me or email brendanetheridge at hotmail.com
Regards
Brendan

User avatar
Robsey
Posts: 137
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: Sliding door lock key question.

Post by Robsey »

Well a bit of an update -

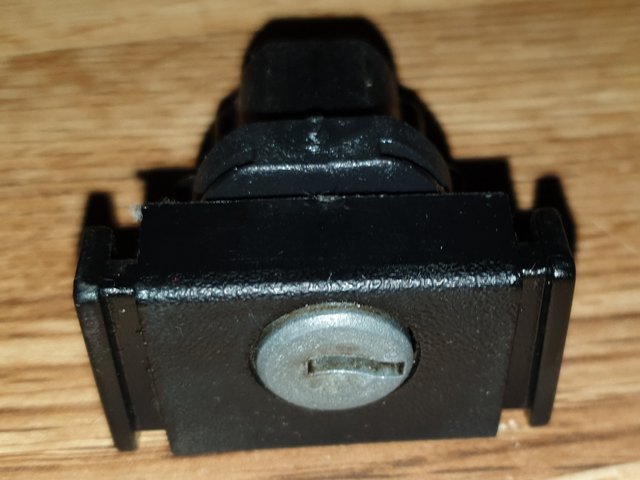

It appears that I have a type B glove box lock.


Here is ours...



Sadly no key to fit it.
And I have no idea what profile.
Catcar lists three different profiles.
111 837 219A - S73 = profile SC
111 837 219A - S74 = profile SU
111 837 219A - S75 = profile SV

As the wife says - The fact that nothing is as expected or should be "adds to the quirkiness of the van"
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

User avatar
937carrera
Posts: 3595
Joined: 05 Apr 2015, 19:29
80-90 Mem No: 16333
Location: N Yorks.

Re: Various locks and keys question

Post by 937carrera »

You might have to dismantle the lock further to get the number off the barrel...... if it is marked at all.
1981 RHD 2.0 Aircooled Leisuredrive project, CU engine
1990 RHD 1.9 Auto Sleeper with DF/DG engine

what2do
Posts: 2812
Joined: 05 Oct 2012, 08:55
80-90 Mem No: 11974
Location: Salisbury

Re: Various locks and keys question

Post by what2do »

With the help of YouTube and Covkid I recently referred my locks so they all fit the 1 key. I've still to do the ignition and fuel cap (ordering a new fuel cap soon) and I can honestly say yes a really easy job. The major problem I had is that 2 of the barrels were so badly corroded the brass wafers were not coming out for love nor money.

Thus, I need a new barrel for the sliding door. Is the image above of a slider barrel and if so, where are they purchased from?

As a side note, locks rebuilt with new wafers feel bloody marvellous when you insert a key, it's a job well worth doing.
Why would the glass be anything other than half full?

'89 panel van, 1.9 DG.

User avatar
Robsey
Posts: 137
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: Various locks and keys question

Post by Robsey »

I have refurbished my cab door locks with moderate ease.
The front passenger lock is okay. Could do with two wafers and four springs to get a full repair.

The passenger lock - all gummed up and seized together.


The drivers door lock barrel cleaned up easily and was in good overall condition.

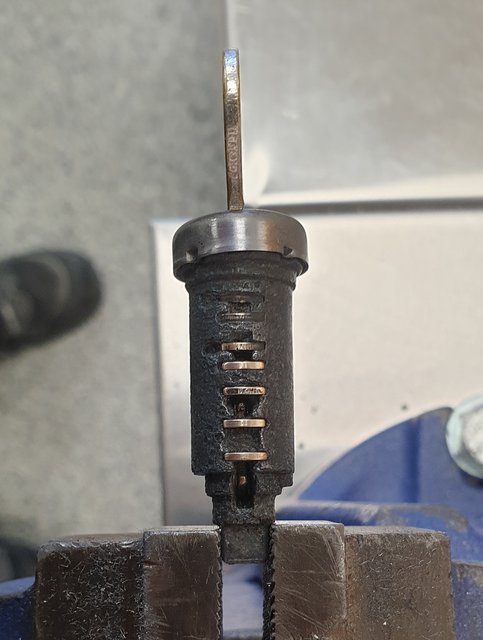

Driver's door lock before stripping.


The sliding door lock barrel refused to budge.
I even drilled out the retaining grub-screw to no avail.
So for me - it is as good as scrap.

I could not find any numbers stamped or engraved on any of my wafers from the cab doors, but I am sure that I can suss out which ones I need.

The ignition lock and tailgate lock are fine, so I will just clean and lube them.

As for stuff flying out in all directions.
I found that I had to help most of the wafers out of the barrel... and every single spring needed to be teased out of it's bore.
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

Stesaw
Posts: 541
Joined: 10 Aug 2019, 23:30
80-90 Mem No: 17004
Location: Coventry

Re: Various locks and keys question

Post by Stesaw »

I think to get the lock barrel out of my sliding door handle I had to turn the key so it was unlocked for it to slide out.

If I recall right anyway, mighta just been muck in it for all I know though.

After getting new locks for my van I found it quite a nice job to do in an odd way.
1985 LeisureDrive 1.9DG 5 Speed- Syncro project.. soon.. ish..
1987 Syncro JX- Donor

User avatar
Robsey
Posts: 137
Joined: 19 May 2012, 20:45
80-90 Mem No: 11137
Location: East Manchester

Re: Various locks and keys question

Post by Robsey »

Stesaw wrote: 11 Jan 2021, 00:46 I think to get the lock barrel out of my sliding door handle I had to turn the key so it was unlocked for it to slide out.

That is another problem with my lock barrel.
It is so seized up, that I can barely get the key all the way in, nevermind get it to turn.

I may just go for an aftermarket handle, and get some wafers to fit.

As soon as I can see how many of each wafer number I will need.

As mentioned by so many people.
The removal, cleaning and configuring of the wafers is super easy...
But only if you have a serviceable lock barrel that you can get out and work with.
1983 Tin Top with a poorly DF and 4 speed DT box.
Soon to have a whizzy 1987 DJ.

Stesaw
Posts: 541
Joined: 10 Aug 2019, 23:30
80-90 Mem No: 17004
Location: Coventry

Re: Various locks and keys question

Post by Stesaw »

Maybe sit it in some petrol for 24 hours, might get the gunk moving, unless it's rusted solid.
1985 LeisureDrive 1.9DG 5 Speed- Syncro project.. soon.. ish..
1987 Syncro JX- Donor

what2do
Posts: 2812
Joined: 05 Oct 2012, 08:55
80-90 Mem No: 11974
Location: Salisbury

Re: Various locks and keys question

Post by what2do »

Stesaw wrote: 11 Jan 2021, 23:09 Maybe sit it in some petrol for 24 hours, might get the gunk moving, unless it's rusted solid.

I left mine submerged in petrol for days to no avail.  Whatever the crud is, it's solid and no easily dissolved.
Why would the glass be anything other than half full?

'89 panel van, 1.9 DG.

what2do
Posts: 2812
Joined: 05 Oct 2012, 08:55
80-90 Mem No: 11974
Location: Salisbury

Re: Various locks and keys question

Post by what2do »

I think I'm correct in saying original wafers aren't numbered.  The only way to identify them is to compare them with aftermarket ones (these have a number stamped on them).
Why would the glass be anything other than half full?

'89 panel van, 1.9 DG.
